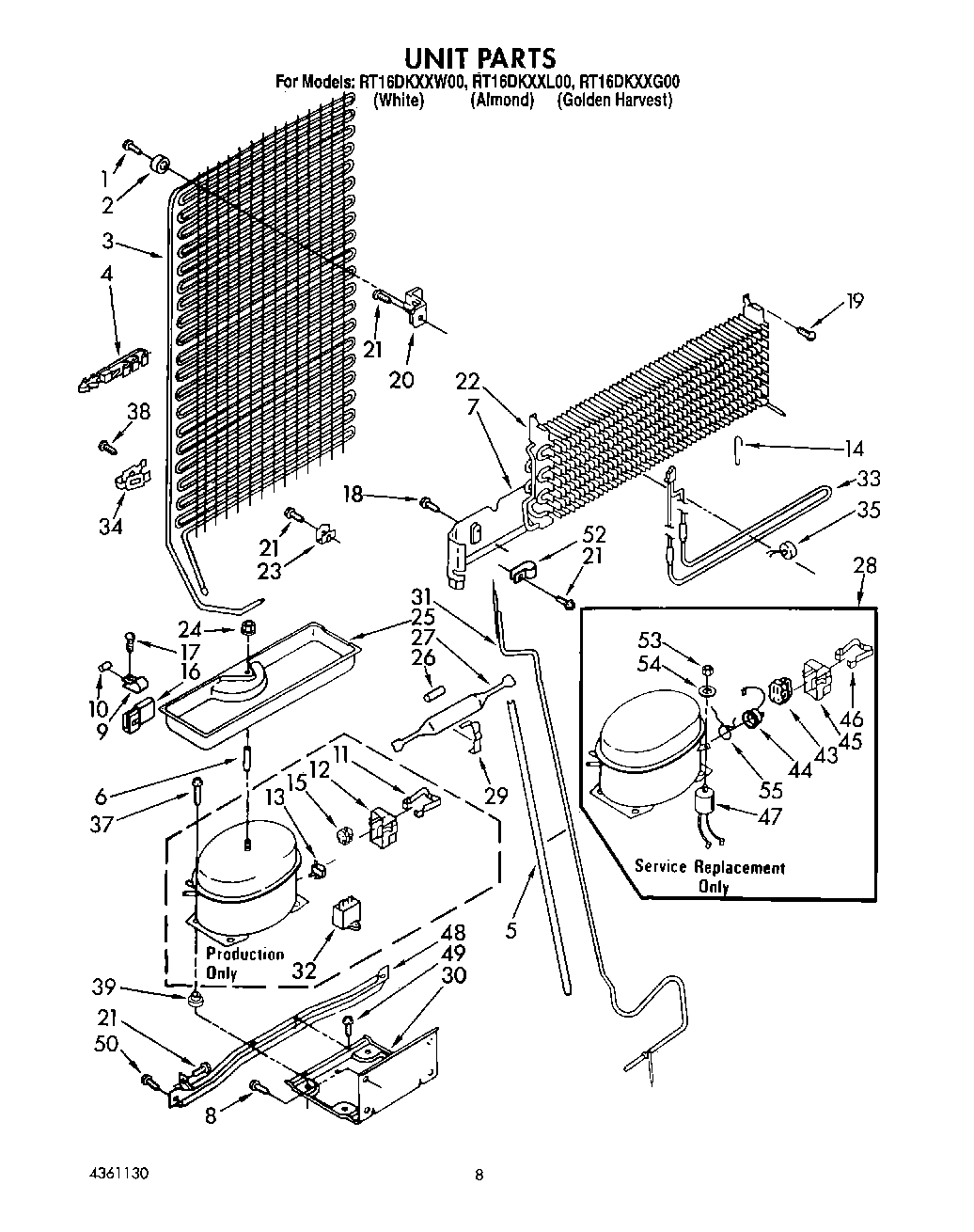

RT16DKYXW00 07 – UNIT

Products

Position	Product
1	WP488163 Whirlpool Refrigerator Screw
2	Bumper
3	Condenser
4	Clip, Tube (2)
5	WP2002171 Whirlpool Refrigerator Sleeve
6	Spacer
7	Heat Shield Evaporator
8	WP489427 Whirlpool Refrigerator Screw
9	Clamp Tube
10	Dampener
12	Cover
13	Overload
14	Support, Heater
16	WP717253 Whirlpool Dishwasher Connector
17	Screw, 8-32 x 1/2
19	WP489174 Whirlpool Refrigerator Screw
20	Bracket, Condenser
21	WP489478 Whirlpool Refrigerator Screw
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
25	Evaporator Tray
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
29	Clamp, Dryer
30	Unit Mounting Plate
31	Exchanger, Heat
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	Heater, Defrost
34	Clip, Tube
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
38	WP965173 Whirlpool Dishwasher Screw
39	876811 Whirlpool Grommet
43	WP2262181 Whirlpool Refrigerator Start Relay
44	Overload
45	Cover, Terminal
46	Strap
47	Capacitor
48	Unit Mounting Rail
49	WP489128 Whirlpool Refrigerator Screw
50	Screw, 1/4-28 x 1
52	Tube, Clamp
53	Nut
54	Washer
55	VALVE, ACCESS (5/8“)
55	876764 Whirlpool Refrigerator Primary Valve
55	978026 Whirlpool Refrigerator Primary Valve
55	978027 Whirlpool Refrigerator Primary Valve
55	978030 Whirlpool Refrigerator Valve
55	Overload Spring
55	VALVE, ACCESS (1/2“)
55	WP978025 Whirlpool Refrigerator Valve
