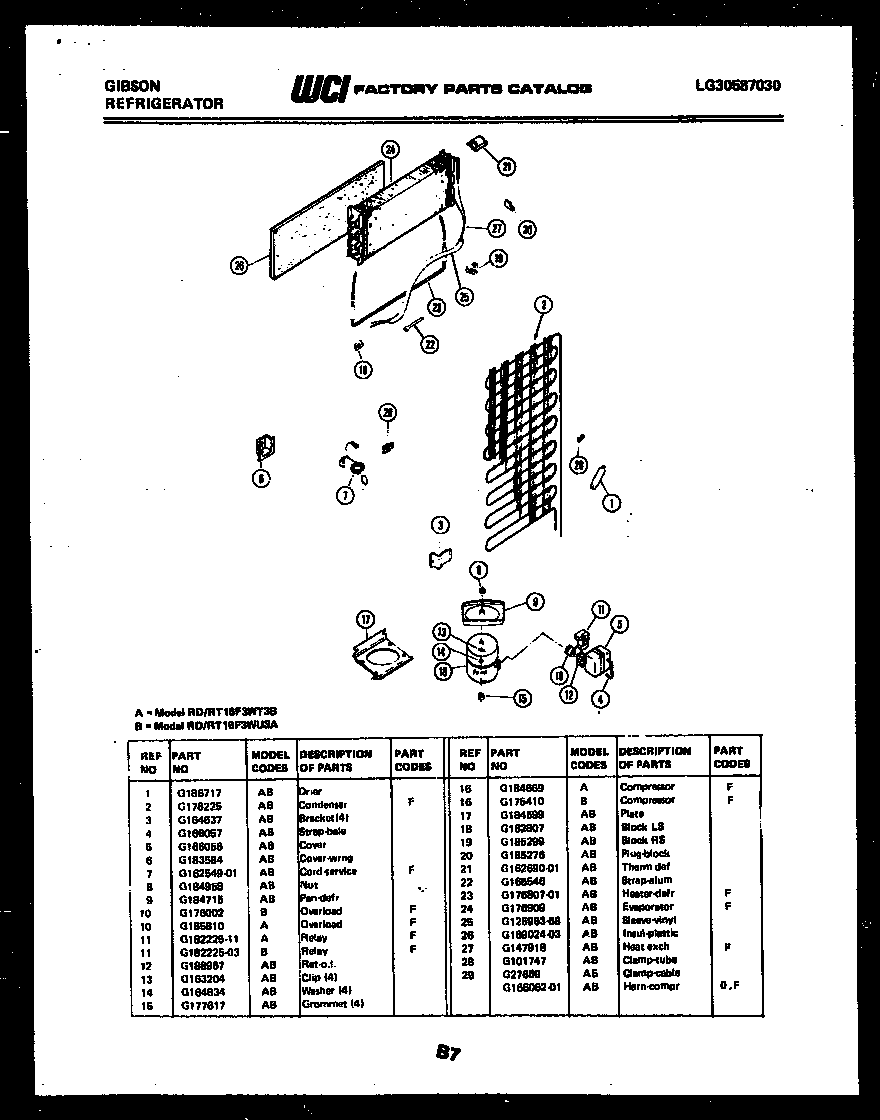

RT16F3WT3B 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*69083	HARNESS-COMPRESSOR
1	5303305677 Frigidaire Replacement Filter Dryer Filters
2	WCI G178225
3	BRACKET-CONDENSER MOUNTING (4)
4	5303006412 Frigidaire Refrigerator Cover Mounting Strap
6	WCI G183584
7	CORD, SERVICE
8	WCI G184958
9	DEFROST PAN & NUT
10	WCI G185810
11	WCI G182225-11
12	RETAINER, OVERLOAD
13	CLIP, COMPRESSOR MOUNTING (4)
14	WASHER, COMPRESSOR MOUNTING (4)
15	218513300 Frigidaire Refrigerator Compressor Mount Grommet
16	COMPRESSOR WITH ELECTRICALS
17	PLATE
18	BLOCK, EVAPORATOR, LH
19	BLOCK, EVAPORATOR, RH
20	PLUG, EVAPORATOR INSULATION BLOCK, R H
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
23	HEATER, DEFROST
24	EVAPORATOR
25	WCI G125963-68
26	INSULATOR
27	HEAT, EXCHANGE
28	WCI G101747
29	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
