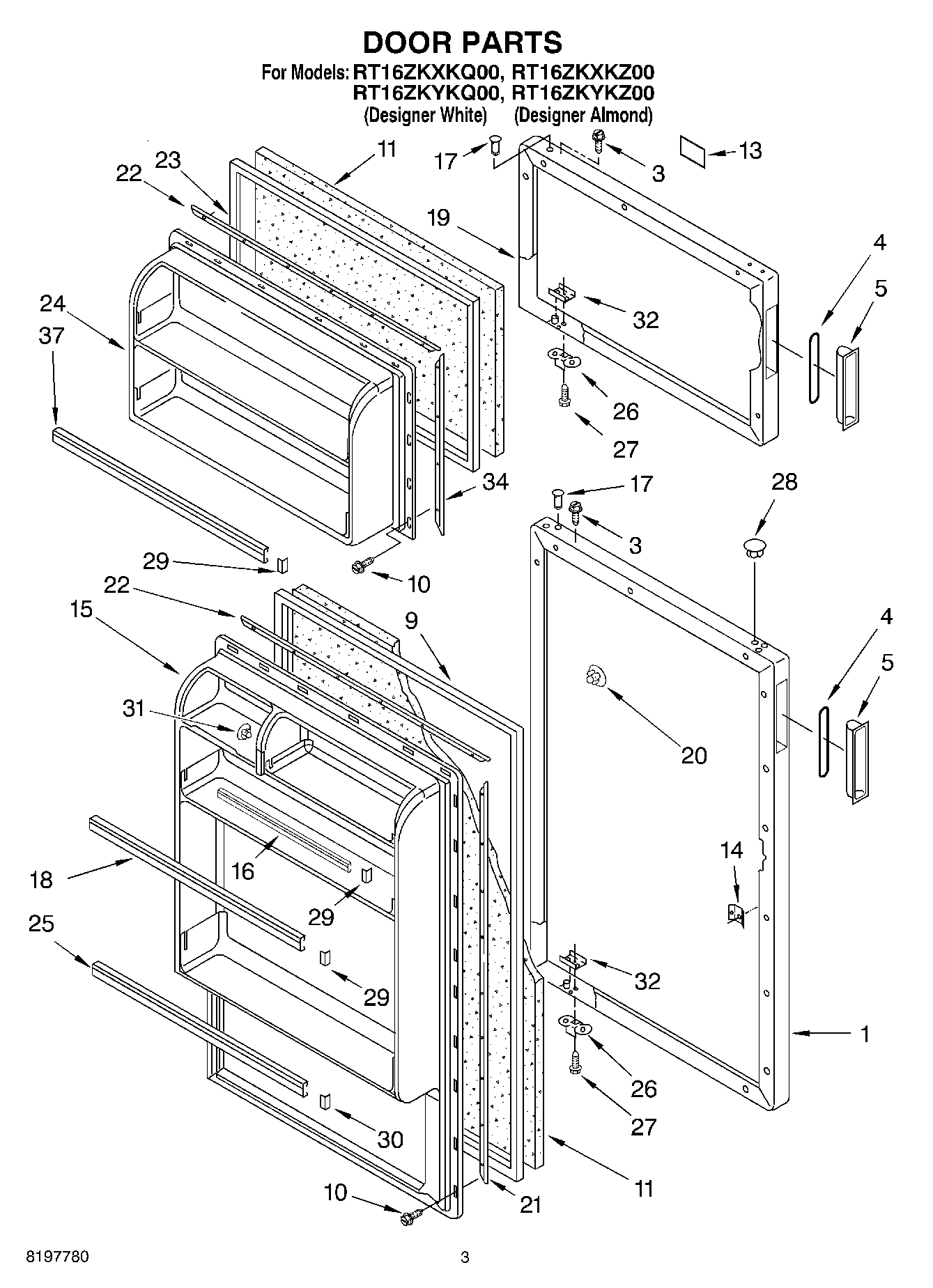

RT16ZKYKQ00 02 – DOOR

RT16ZKYKQ00 02 – DOOR

Written by

in

RT16ZKYKQ00 02 – DOOR

Products

PositionProduct
1Refrigerator Door Panel (Almond)
1Refrigerator Door Panel (White)
3WP8281206 Whirlpool Refrigerator Screw
4Gasket, Handle
5WP984493 Whirlpool Refrigerator Handle
5Handle (Almond)
9WP2319266T Whirlpool Refrigerator FIP Gasket
10WP489442 Whirlpool Refrigerator Screw
11WPL 876029
13Nameplate (Almond)
13Nameplate (White)
14WP939101 Whirlpool Refrigerator Plate
15Interior Door Panel (Refrigerator)
17WP2183003 Whirlpool Thimble
18Trim, Door (Middle)
19Freezer Door Panel (Also Order Item 11) (White)
19Freezer Door Panel (Also Order Item 11) (Almond)
20WP2189000 Whirlpool Refrigerator Handle Plug
20Hole Plug (Almond)
21Retainer, Gasket
22Retainer, Gasket
232188462A Whirlpool Freezer Door Gasket
24Interior Door Panel (Freezer)
25WP2197356 Whirlpool Refrigerator Door Trim
26W11745278 Whirlpool Bracket
27WP488921 Whirlpool Refrigerator Screw
28Hole Plug (Almond)
28WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29ENDCAP-TRM
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31Hole Plug
32W10833053 Whirlpool Refrigerator Plate
34Retainer, Gasket
37WP2163629 Whirlpool Refrigerator Door Trim
