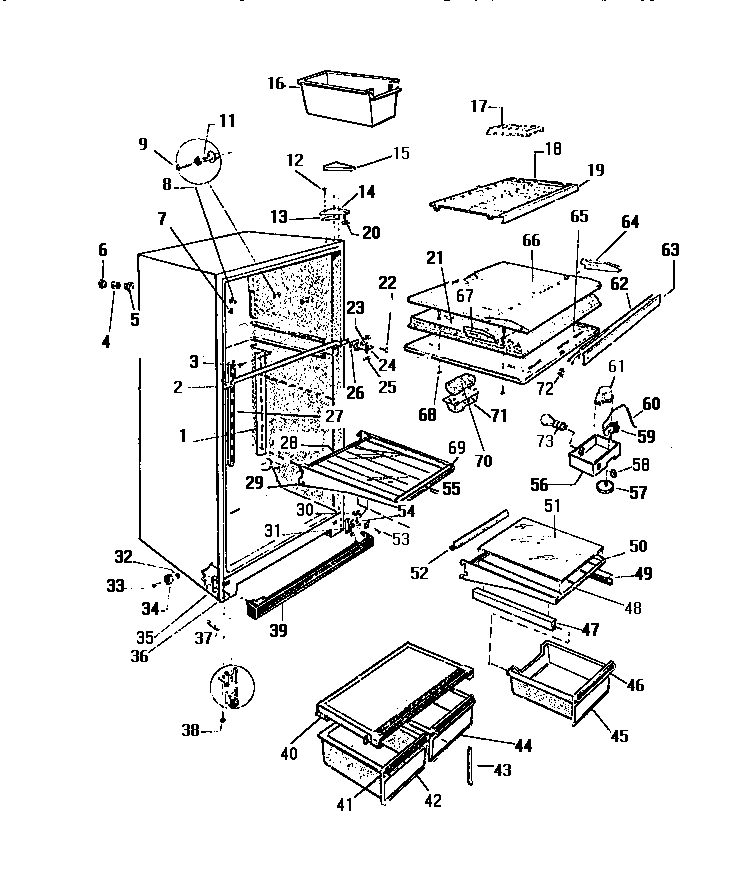

RT170GCH4 03 – CABINET, SHELVES, DIVIDER, FAN ASSE

Products

Position	Product
*11931	ROLLER ASSEMBLY – FRONT (2)
*11934	WCI G162051-09
*11933	WCI G176210
1A	WCI G163989
1	CHANNEL, SHELF (2)
2	STRAP, MULLION MOUNTING
3	5304455650 Frigidaire Refrigerator Screw
4	TUBE, INSULATION (2)
5	WCI G174733
6	WCI G174734
7	BUTTON, PLUG, ICE MAKER AND FREEZER SHELF MOUNTING HOLES
8	WCI G163669
9	SCREW – SUPPORT TO LINER (8)
11	SUPPORT, SHELF (8)
12	241710601 Frigidaire Refrigerator Screw
13	SHIM
14	BRACKET, TOP HINGE
15	COVER HINGE, WHEAT
16	CONTAINER ICE
17	ICE TRAY
18	WCI G177415-02
20	WASHER, NYLON
21	DIVIDER – COMPARTMENT
22	WCI Q500010
23	WCI G142220
24	WCI G162384
26	SHIM, HINGE
27	CHANNEL, CENTER SHELF, MOUNTING
28	TRIM, REAR
29	FRAME-SHELF
30	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
31	SHIM, HINGE
32	NUT, DAMPER MOUNTING
33	WCI G162809
34	ROLLER (2)
35	TAPPING PLATE (2)
36	WCI G142361
37	WCI G162994
38	BOLT, HOUSING TO FRONT RAIL (2)
39	WCI G163080-03
40	WCI G162840-01
42	PAN, FRUIT
43	WCI G166310-01
44	PAN, CRISPER
45	PAN, MEAT
46	WCI G177343-06
47	WCI G174365-01
49	WCI G174366-01
50	FRAME, SHELF
52	TRIM, REAR
53	SCREW
54	BRACKET-LOWER HINGE
55	GLASS-SHELF
56	WCI G176722-01
57	KNOB
58	SWITCH
59	COLD CONTROL
60	TUBE
61	215846604 Frigidaire Refrigerator Defrost Timer
62	WCI G177254
64	WCI G162176
65	WCI G174714
66	WCI G161919-01
67	WCI G162177
68	SCREW (5)
69	TRIM, SHELF, CUT TO SIZE
70	DEFLECTOR AIR
71	WCI G162178
72	5309918806 Frigidaire Refrigerator Light Switch Door
73	SOCKET LIGHT
