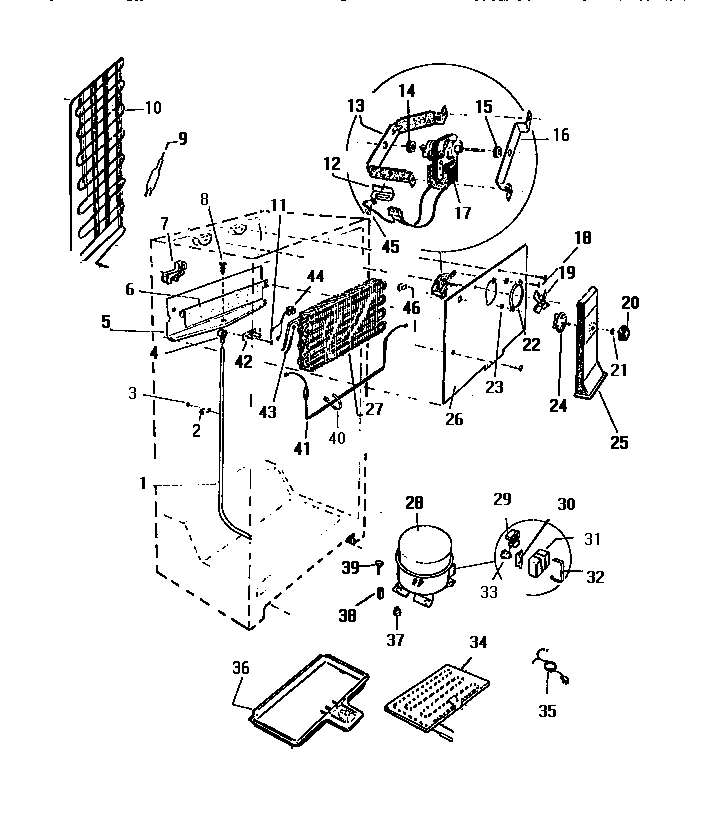

RT170GCH4 04 – COOLING SYSTEM

Products

Position	Product
*11935	LABEL-FAN CVR
*11932	HEAT EXCHANGER REPAIR KIT
*11936	WCI G176210
1	DRAIN TUBE (CUT TO LENGTH)
2	WCI G101747
4	ELBOW, DRAIN
5	WCI G170071
6	INSULATOR
7	TROUGH
8	WCI G101620
9A	WCI R900125
9	DRIER-REGULAR
10	WCI G163356
12	WCI G164571
13	BRACKET, REAR MOTOR MOUNTING
15	G187559 Frigidaire Refrigerator Bushing
16	BRACKET, FRONT MOTOR MOUNTING
17	5300158289 Frigidaire Evaporator Fan Motor
19	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
20	WCI G162663-13
21	NUT, DAMPER MOUNTING
22	RING, FAN ORIFICE
23	WCI G162701
24	DAMPER FAN COVER
25	COVER
26	WCI G162050-02
27	EVAPORATOR
28	COMPRESSOR W/ELECT.
29	WCI G182225-12
31	WCI G185792
32	STRAP-COVER
33	WCI G185797
34	DEFROST PLATE (NON-ILLUSTRATED)
35	CORD, SERVICE
36	PAN, DEFROST
37	218513300 Frigidaire Refrigerator Compressor Mount Grommet
38	SLEEVE COMP MTG (3)
39	WCI G154589
40	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
41	5317842502 Frigidaire Defrost Heater
42	SPOUT DRAIN TUBE
43	EXCHANGER-HEAT
44	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
45	WCI Q401601
46	WCI G163099
