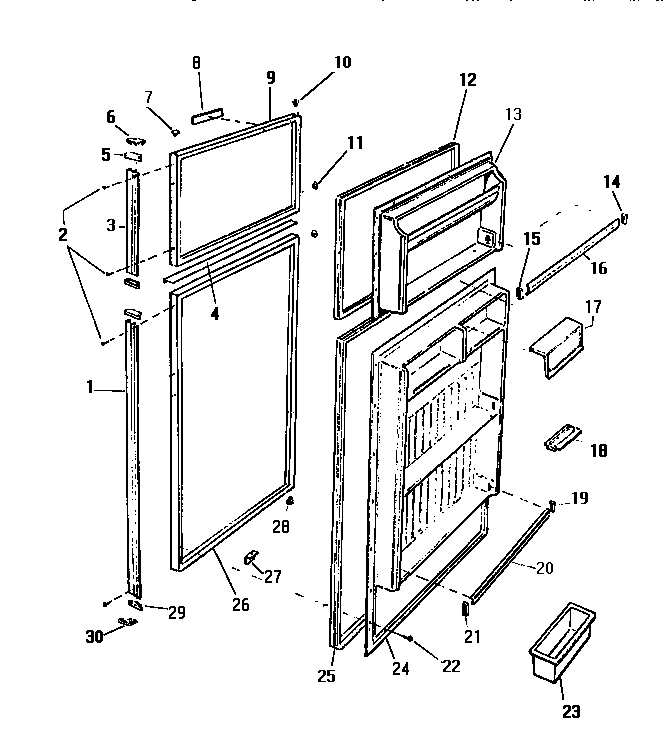

RT170GCV2 02 – DOOR

Products

Position	Product
*11925	PLASTIC BAG
*11922	FIBERGLASS INSULATION 34“X48“X1/2“ TH
*11923	FIBERGLASS INSULATION 34“X48“X1“TH
*11927	WCI 467B371H22
*11924	FIBERGLASS 34“X48“X11/2 “ TH
*11926	WCI Q168338
*11920	TAPE, VINYL HANDLE ( ELM BURL FINISH )
1	WCI G177141-06
1A	CLIP
2	SCREW HANDLE MTG (8)
3	WCI G177141-03
4A	WCI C460647
4	TRIM
4B	CLEANING FLUID
6	TRIM, TOP
7	WCI G169332-08
8	WCI R304001
9	WCI G178431-08
11	WCI G162977-08
12	WCI G180547-06
13	INNER PANEL
15	WCI G176892-02
16	RACK-DOOR
17	WCI G179967-02
18	5308000716 Frigidaire Refrigerator Dish
19	SUPPORT-RACK RH (3)
20	RACK-DOOR (2)
21	SUPPORT-RACK LH (3)
22	218843801 Frigidaire Refrigerator Screw
23	CONTAINER-EGG
24	INNER PANEL
25	GASKET – REFRIG. DOOR
26	WCI G180158-08
27	STOP, DOOR. PC & FC (2)
28	BEARING, HINGE (3)
29	CAP
29	CAP
30	TRIM, BTM
