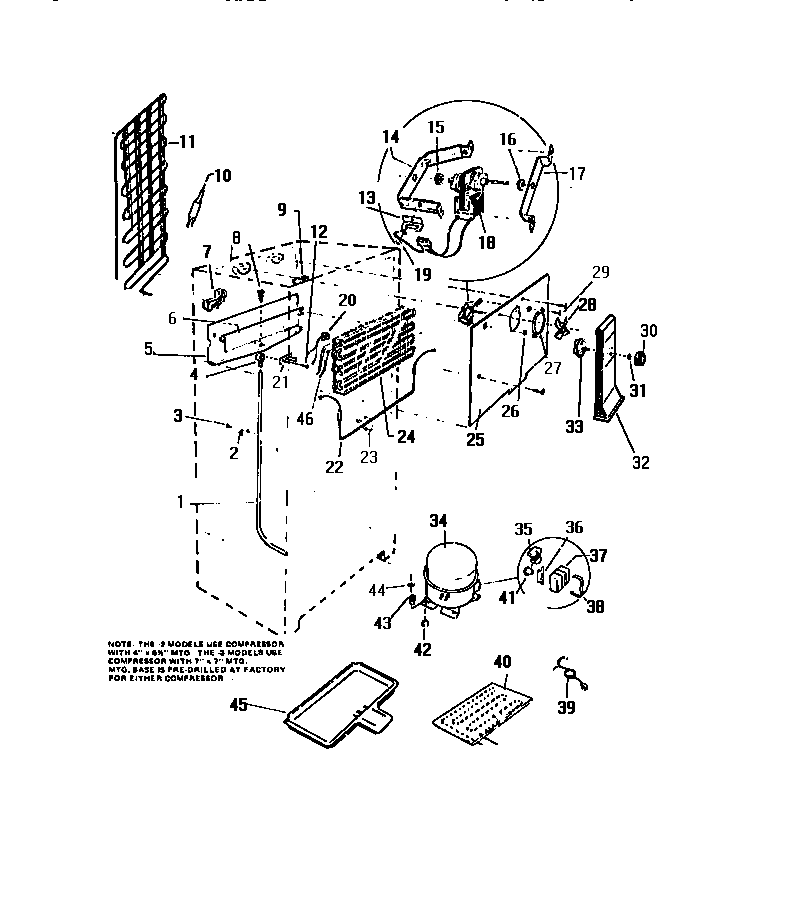

RT173GCD4 04 – COOLING SYSTEM

Products

Position	Product
1	WCI G155529-04
2	WCI G101747
4	ELBOW, DRAIN
5	WCI G170071
6	INSULATOR
7	TROUGH
8	WCI G101620
9	WCI G163099
10	WCI R900125
10A	DRIER-REGULAR
11A	WCI G166001
11	WCI G162739
13	WCI G164571
14	BRACKET, REAR MOTOR MOUNTING
16	G187559 Frigidaire Refrigerator Bushing
17	BRACKET, FRONT MOTOR MOUNTING
18	5300158289 Frigidaire Evaporator Fan Motor
20	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
21	SPOUT DRAIN TUBE
22	5317842502 Frigidaire Defrost Heater
23	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
24	EVAPORATOR
25	WCI G162050-01
26	WCI G162701
27	RING, FAN ORIFICE
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
29	WCI Q401601
30	WCI G162663-13
31A	LABEL
31	NUT, DAMPER MOUNTING
32	COVER
33	DAMPER FAN COVER
34	COMPRESSOR W/ELECT.
35	WCI G182225-12
37	WCI G185792
38	STRAP-COVER
39	WCI G16254901
40	DEFROST PLATE (NON-ILLUSTRATED)
41	WCI G175797
42	218513300 Frigidaire Refrigerator Compressor Mount Grommet
43	SLEEVE COMP MTG (3)
44	WASHER, COMPRESSOR MOUNTING (4)
45	PAN, DEFROST
46	EXCHANGER-HEAT
46A	HEAT EXCHANGER REPAIR KIT
