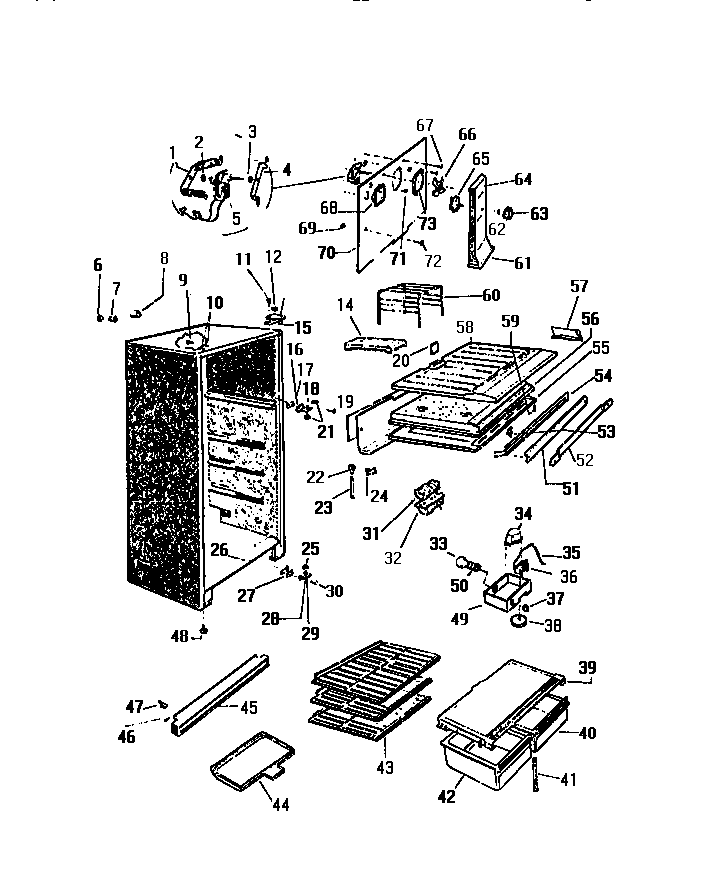

RT173GCF3 03 – CABINET, SHELVES, DIVIDER, FAN ASSE

Products

Position	Product
*60207	SUPPORT, SHELF (8)
*60208	SCREW – SUPPORT TO LINER (8)
*60206	WCI G177415-02
1	BRACKET, REAR MOTOR MOUNTING
3	G187559 Frigidaire Refrigerator Bushing
4	BRACKET, FRONT MOTOR MOUNTING
5	5300158289 Frigidaire Evaporator Fan Motor
6	WCI G174733
7	WCI G174734
8	TUBE, INSULATION (2)
9	WCI G163669
10	WCI G174747-10
12	WASHER, NYLON
13	HINGE, RT SD/ L.SD
14	ICE TRAY
15	SHIM
16	WCI G167683
17	WCI G162364
18	WCI G142220
19	WCI Q500010
20	PAD, FOAM (2)
21	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
21A	WCI G170071
22	ELBOW, DRAIN
23	WCI G155529-04
24	SPOUT DRAIN TUBE
25	WCI G103903
26	TAPPING PLATE (2)
27	SHIM, HINGE
28	WCI G142331
29	BRACKET-LOWER HINGE
30	241710601 Frigidaire Refrigerator Screw
31	DEFLECTOR AIR
32	WCI G162178
33	WCI Q63749
34	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
35	TUBE
36	COLD CONTROL
37	SWITCH
38	KNOB
39	WCI G162840-01
41	WCI G166310-01
42	PAN CRISPER
43	SHELF
44	PAN, DEFROST
45	WCI G163080-03
46	PLUG – LOWER GRILLE
47	WCI G162994
48A	WCI G164702
48	WCI G166739
49	CONTROL BOX
49A	WCI G180106
50	SOCKET LIGHT
51	WCI G1662051-10
52	STRAP, MULLION MOUNTING
53	5309918806 Frigidaire Refrigerator Light Switch Door
54	WCI G177254
55	WCI G174714
56	DIVIDER – COMPARTMENT
57A	WCI G167176
57	WCI G162177
58	WCI G161919-01
59	SCREW (5)
60	5303282284 Frigidaire Wire Shelf
61	COVER
62	NUT, DAMPER MOUNTING
63	WCI G162663-13
64	LABEL
65	DAMPER FAN COVER
66	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
67	WCI Q401601
68	WCI G162511-29
69	NUT, ORIFICE (2)
70	WCI G162050-01
71	WCI G162701
72	WCI Q301267
73	RING, FAN ORIFICE
