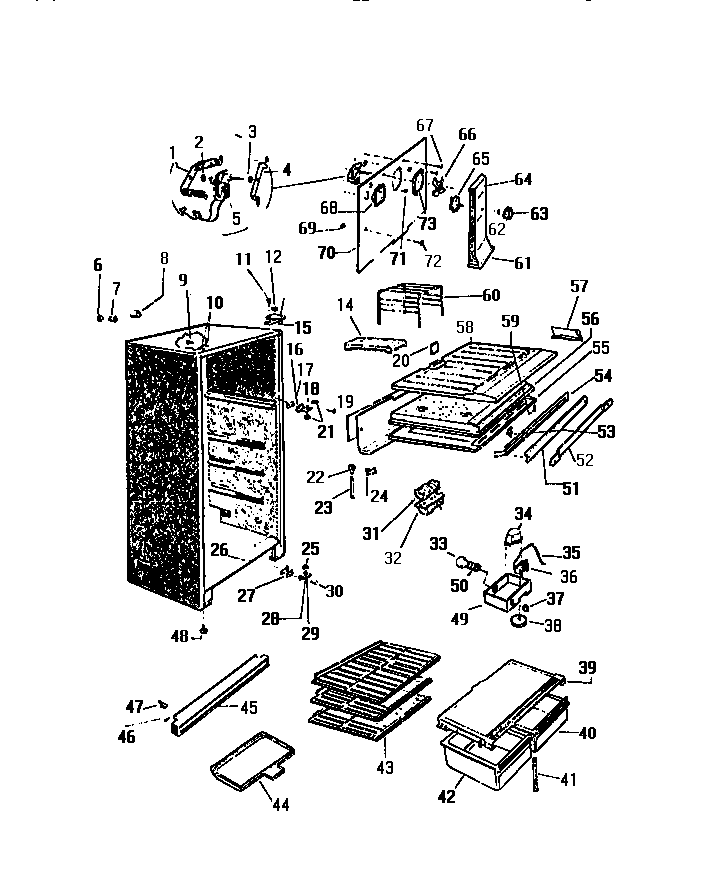

RT173GCW4 03 – CABINET, SHELVES, DIVIDER, FAN ASSE

Products

Position	Product
*60208	SCREW – SUPPORT TO LINER (8)
*60207	SUPPORT, SHELF (8)
*60206	WCI G177415-02
1	BRACKET, REAR MOTOR MOUNTING
3	G187559 Frigidaire Refrigerator Bushing
4	BRACKET, FRONT MOTOR MOUNTING
5	5300158289 Frigidaire Evaporator Fan Motor
6	WCI G174733
7	WCI G174734
8	TUBE, INSULATION (2)
9	WCI G163669
10	WCI G174747–01
12	WASHER, NYLON
13	HINGE, RT SD/ L.SD
14	ICE TRAY
15	SHIM
16	WCI G167683
17	WCI G162364
18	WCI G142220
19	WCI Q500010
20	PAD, FOAM (2)
21	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
21A	WCI G170071
22	ELBOW, DRAIN
23	WCI G155529-04
24	SPOUT DRAIN TUBE
25	WCI G103903
26	TAPPING PLATE (2)
27	SHIM, HINGE
28	WCI G142331
29	BRACKET-LOWER HINGE
30	241710601 Frigidaire Refrigerator Screw
31	DEFLECTOR AIR
32	WCI G162178
33	WCI Q63749
34	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
35	TUBE
36	COLD CONTROL
37	SWITCH
38	KNOB
39	WCI G162840-01
41	WCI G166310-01
42	PAN CRISPER
43	SHELF
44	PAN, DEFROST
45	WCI G163080-03
46	PLUG – LOWER GRILLE
47	WCI G162994
48A	WCI G164702
48	WCI G166739
49	CONTROL BOX
49A	WCI G180106
50	SOCKET LIGHT
51	WCI G162051
52	STRAP, MULLION MOUNTING
53	5309918806 Frigidaire Refrigerator Light Switch Door
54	WCI G177254
55	WCI G174714
56	DIVIDER – COMPARTMENT
57	WCI G162177
57A	WCI G167176
58	WCI G161919-01
59	SCREW (5)
60	5303282284 Frigidaire Wire Shelf
61	COVER
62	NUT, DAMPER MOUNTING
63	WCI G162663-13
64	LABEL
65	DAMPER FAN COVER
66	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
67	WCI Q401601
68	WCI G162511-29
69	NUT, ORIFICE (2)
70	WCI G162050-01
71	WCI G162701
72	WCI Q301267
73	RING, FAN ORIFICE
