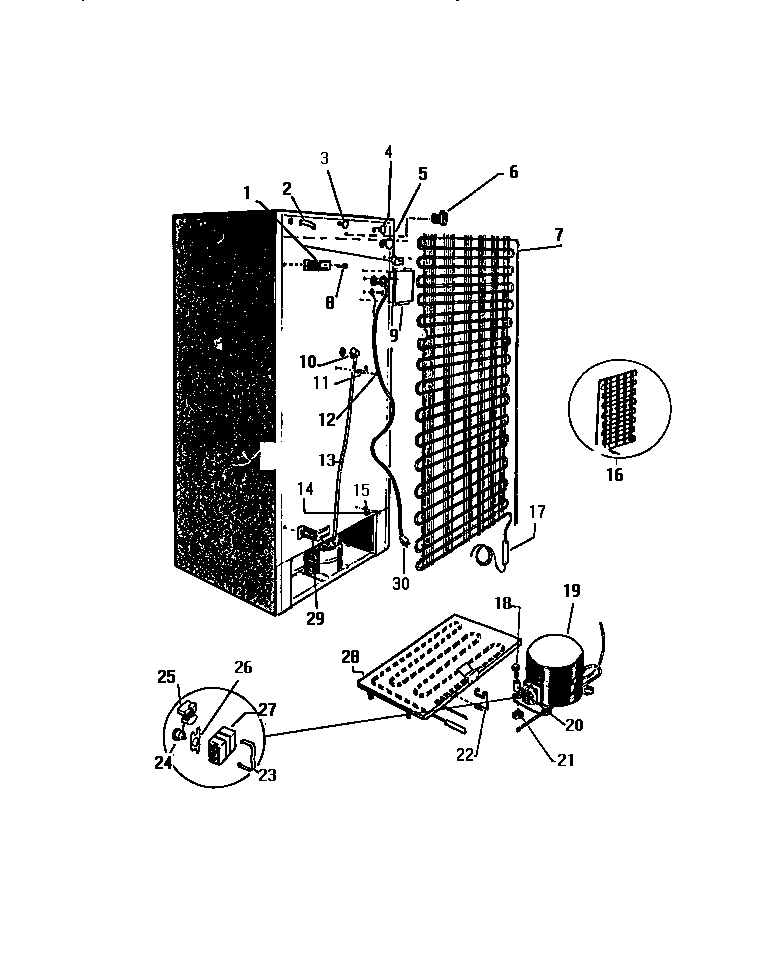

RT175CGD2 05 – COOLING SYSTEM

Products

Position	Product
*98727	WCI C714203
2	WCI G000085642
3	WCI G000161046
4	215456100 Frigidaire Refrigerator Water Inlet Tube
5	TUBE, INSULATION (2)
6	SPACER, MOLDED
7	WCI G000162739
9	COVER WIRING
10	ELBOW, DRAIN
11	240396801 Frigidaire Refrigerator Tube Clamp
13	DRAIN TUBE (CUT TO LENGTH)
14	218843801 Frigidaire Refrigerator Screw
15	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
16	WCI G176210
17A	DRIER-REGULAR
17	WCI R900125
18	WCI G154589
19	COMPRESSOR W/ELECT.
20	SLEEVE COMP MTG (3)
21	218513300 Frigidaire Refrigerator Compressor Mount Grommet
22	BRACKET, DRAIN TUBE
23	STRAP-COVER
24	WCI G185797
25	WCI G182225-12
27	WCI G185792
28	DEFROST PLATE (NON-ILLUSTRATED)
29	WCI G160566-01
30	CORD, SERVICE
