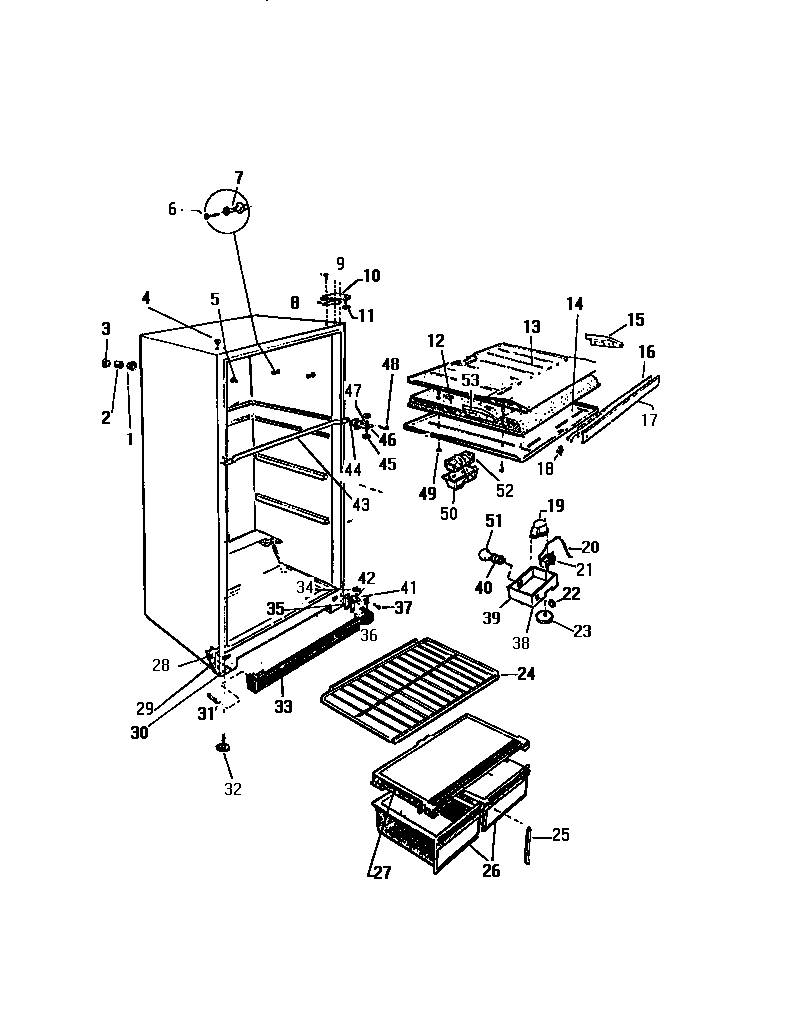

RT175GCD0 03 – CABINET, SHELVES, DIVIDER

Products

Position	Product
1	WCI G174733
2	TUBE, INSULATION (2)
3	WCI G174734
4	WCI G174747-11
5	WCI G163669
6	SCREW – SUPPORT TO LINER (8)
7	SUPPORT, SHELF (8)
8	SHIM
9	241710601 Frigidaire Refrigerator Screw
10	HINGE, RT SD/ L.SD
11	WASHER, NYLON
12	DIVIDER – COMPARTMENT
13	WCI G161919-01
14	WCI G174714
15	WCI G162176
16	WCI G177254
17	WCI G162051-11
18	5309918806 Frigidaire Refrigerator Light Switch Door
19	215846604 Frigidaire Refrigerator Defrost Timer
20	TUBE
21	COLD CONTROL
22	SWITCH
23	KNOB
24	SHELF
25	WCI G166310-01
26	PAN CRISPER
27	WCI G162840-01
28	WCI G141673
29	TAPPING PLATE (2)
31	WCI G162994
32	WCI Q13325
33	TOE GRILL
35	SHIM, HINGE
36	NUT, SPEED (2)
37	SCREW
38	LABEL-BOX
39	WCI G176722-01
40	SOCKET LIGHT
41	BRACKET-LOWER HINGE
42	WCI G142361
43	STRAP, MULLION MOUNTING
44	WCI G000162683
45	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
46	WCI G162384
47	WCI G142220
48	WCI Q500010
49	SCREW (5)
50	WCI G162178
51	WCI Q63749
52	DEFLECTOR AIR
53	WCI G162177
