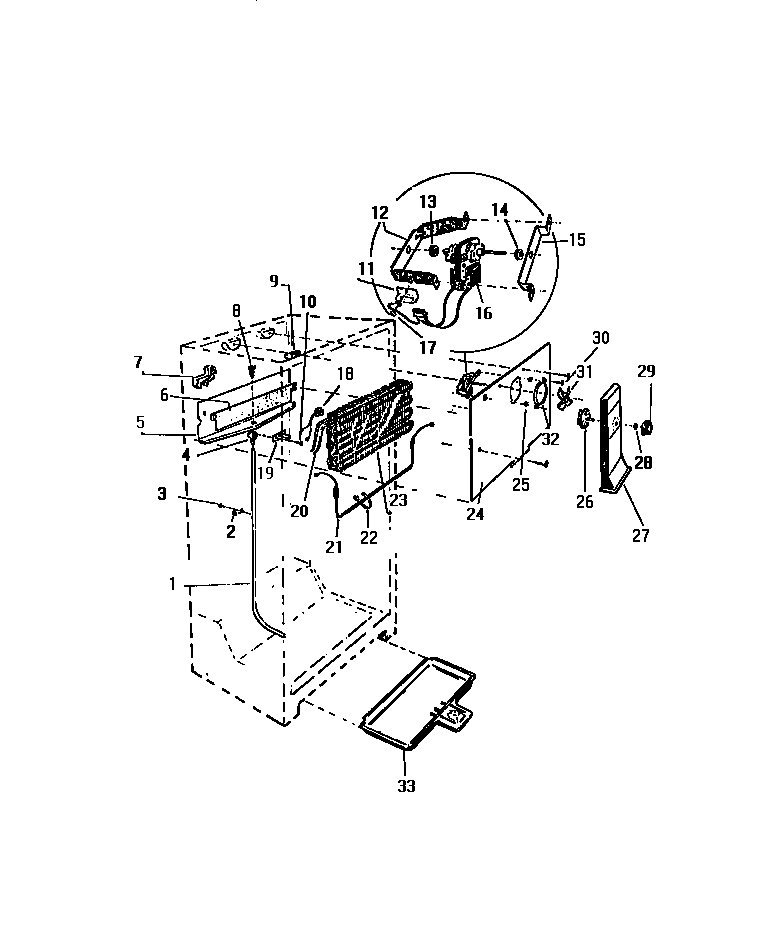

RT175GCD0 04 – EVAPORATOR, FAN ASSY.

Products

PositionProduct
*98726HEAT EXCHANGER REPAIR KIT
1DRAIN TUBE (CUT TO LENGTH)
2240396801 Frigidaire Refrigerator Tube Clamp
4ELBOW, DRAIN
5WCI G170071
6INSULATOR
7TROUGH
8WCI G101620
9WCI G163099
11WCI G164571
12BRACKET, REAR MOTOR MOUNTING
14G187559 Frigidaire Refrigerator Bushing
15BRACKET, FRONT MOTOR MOUNTING
165300158289 Frigidaire Evaporator Fan Motor
185303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
19SPOUT DRAIN TUBE
20EXCHANGER-HEAT
215317842502 Frigidaire Defrost Heater
225308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
23EVAPORATOR
24WCI G162050-01
25WCI G162701
26DAMPER FAN COVER
27COVER
28NUT, DAMPER MOUNTING
29WCI G162663-13
30WCI Q401601
315308000010 Frigidaire Refrigerator Evaporator Fan Blade
32RING, FAN ORIFICE
33PAN, DEFROST
