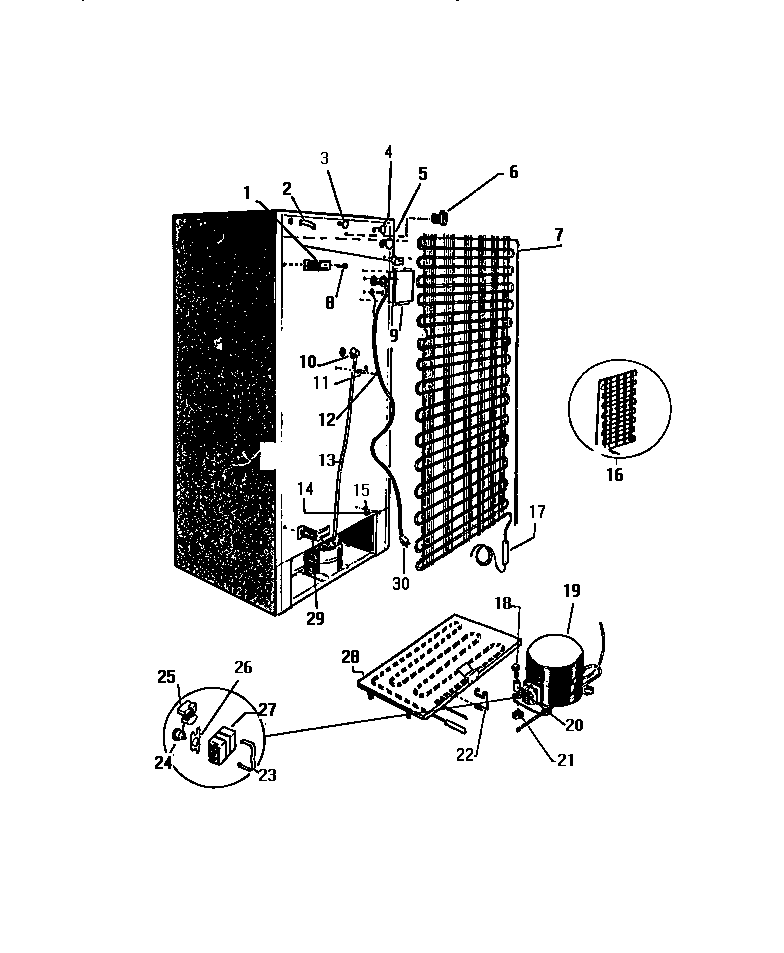

RT175GCD0 05 – COOLING SYSTEM

RT175GCD0 05 – COOLING SYSTEM

Written by

in

RT175GCD0 05 – COOLING SYSTEM

Products

PositionProduct
1WCI G160566-01
2WCI G000085642
3WCI G000161046
4215456100 Frigidaire Refrigerator Water Inlet Tube
5TUBE, INSULATION (2)
6SPACER, MOLDED
7WCI G000162739
9COVER WIRING
10ELBOW, DRAIN
11240396801 Frigidaire Refrigerator Tube Clamp
13DRAIN TUBE (CUT TO LENGTH)
14218843801 Frigidaire Refrigerator Screw
155303001199 Frigidaire Refrigerator Wiring Harness Clamp
16WCI G176210
17ADRIER-REGULAR
17WCI R900125
18WCI G154589
19COMPRESSOR W/ELECT.
20SLEEVE COMP MTG (3)
21218513300 Frigidaire Refrigerator Compressor Mount Grommet
22BRACKET, DRAIN TUBE
235303006412 Frigidaire Refrigerator Cover Mounting Strap
24OVERLOAD
25WCI G150618-32
28DEFROST PLATE
