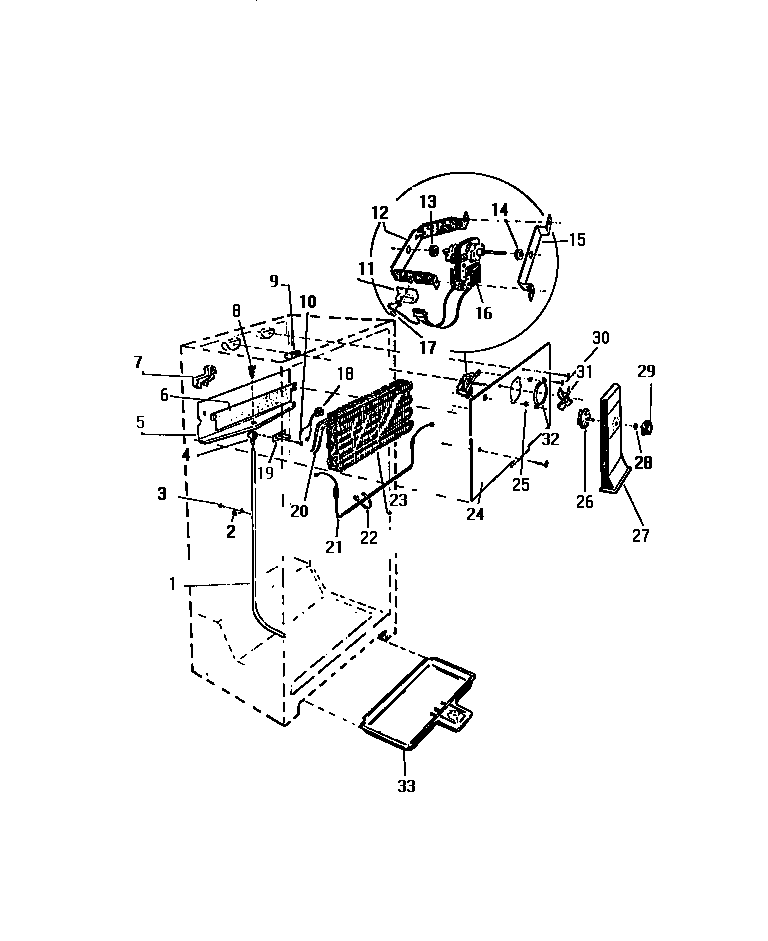

RT175GCD1 04 – EVAPORATOR, FAN ASSY.

Products

Position	Product
*98726	HEAT EXCHANGER REPAIR KIT
1	DRAIN TUBE (CUT TO LENGTH)
2	240396801 Frigidaire Refrigerator Tube Clamp
4	ELBOW, DRAIN
5	WCI G170071
6	INSULATOR
7	TROUGH
8	WCI G101620
9	WCI G163099
11	WCI G164571
12	BRACKET, REAR MOTOR MOUNTING
14	G187559 Frigidaire Refrigerator Bushing
15	BRACKET, FRONT MOTOR MOUNTING
16	5300158289 Frigidaire Evaporator Fan Motor
18	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
19	SPOUT DRAIN TUBE
20	EXCHANGER-HEAT
21	5317842502 Frigidaire Defrost Heater
22	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
23	EVAPORATOR
24	WCI G162050-01
25	WCI G162701
26	DAMPER FAN COVER
27	COVER
28	NUT, DAMPER MOUNTING
29	WCI G162663-13
30	WCI Q401601
31	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
32	RING, FAN ORIFICE
33	PAN, DEFROST
