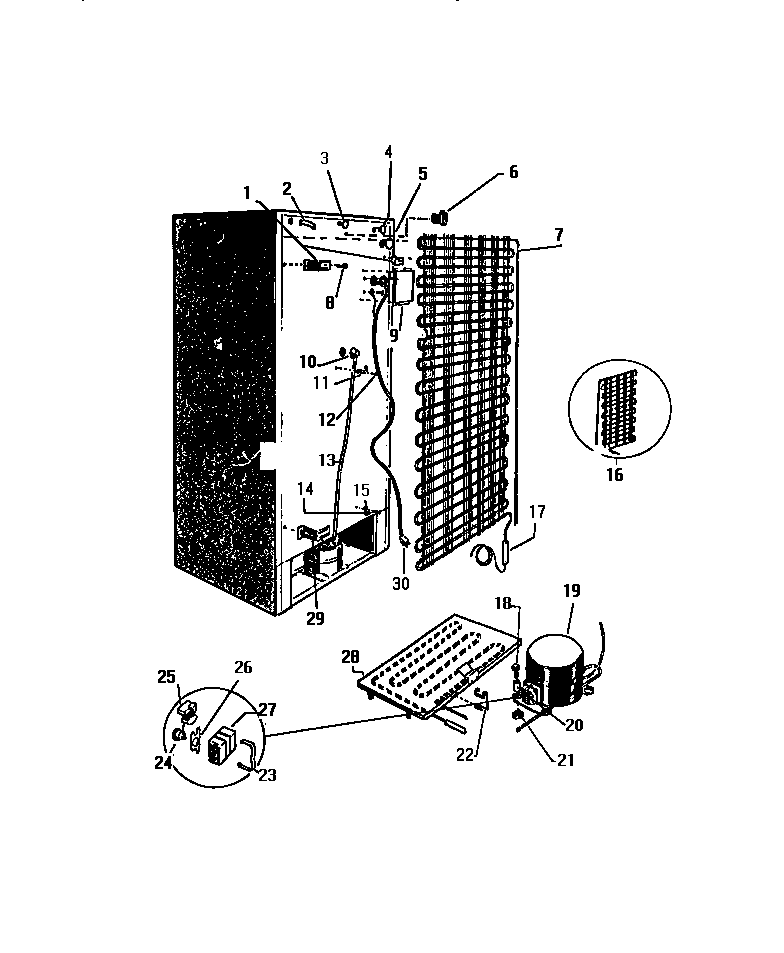

RT175GCD1 05 – COOLING SYSTEM

Products

Position	Product
1	WCI G160566-01
2	WCI G000085642
3	WCI G000161046
4	215456100 Frigidaire Refrigerator Water Inlet Tube
5	TUBE, INSULATION (2)
6	SPACER, MOLDED
7	WCI G000162739
9	COVER WIRING
10	ELBOW, DRAIN
11	240396801 Frigidaire Refrigerator Tube Clamp
13	DRAIN TUBE (CUT TO LENGTH)
14	218843801 Frigidaire Refrigerator Screw
15	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
16	WCI G176210
17A	DRIER-REGULAR
17	WCI R900125
18	WCI G154589
19	COMPRESSOR WITH RELAY & OVERLOAD (SEE NOTE 1)
20	SLEEVE COMP MTG (3)
21	218513300 Frigidaire Refrigerator Compressor Mount Grommet
22	BRACKET, DRAIN TUBE
23	5303006412 Frigidaire Refrigerator Cover Mounting Strap
24	WCI G176981
25	WCI G150618-26
27	COVER
28	DEFROST PLATE (NON-ILLUSTRATED)
