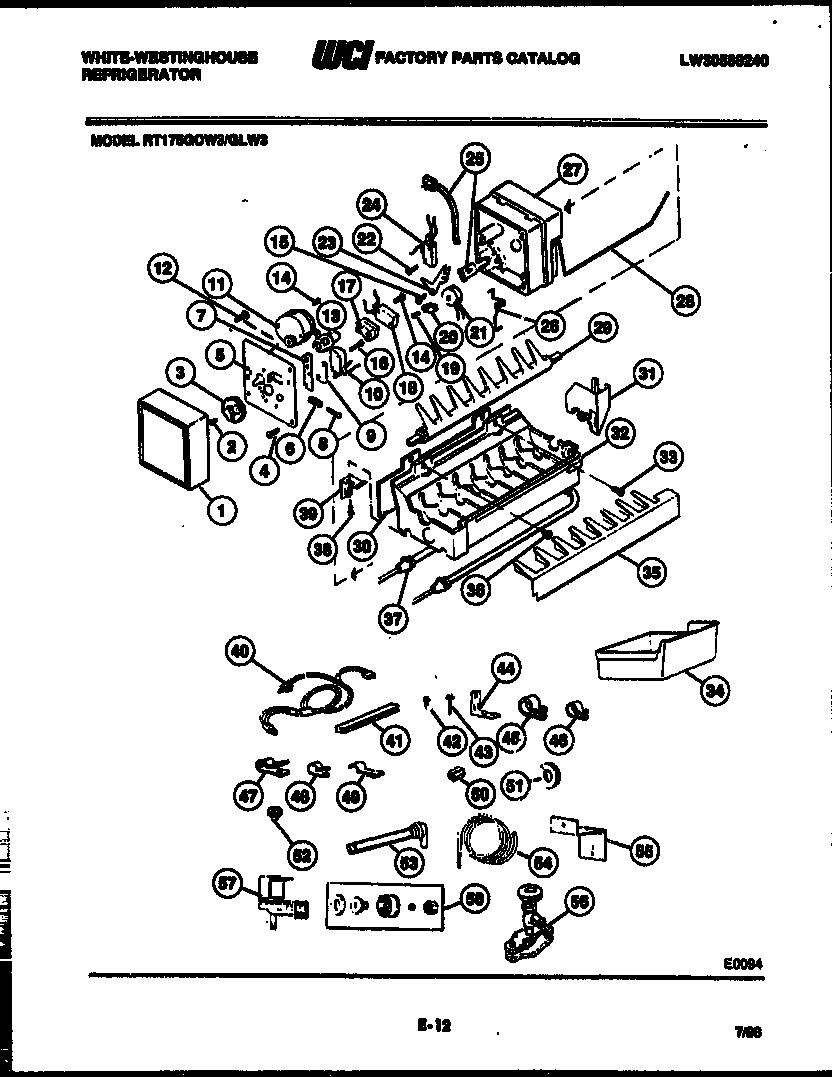

RT175GCD3 06 – ICE MAKER AND INSTALLATION PARTS

Products

Position	Product
1A	DOOR CLOSER
1	WCI R262301
2	SCREW
3	WCI C460057
4	WCI M1090016
5	WCI G186572
6	WCI G159909
7	WCI G159905
9	WCI 3018588
11	MOTOR
12	WCI G159898
13	WCI C460056
14	SCREW 4-40 X 1 (2)
15	SHOULDER SCREW
16	SCREW 4-40 X 3/4 (2)
17	SPACER, HOLDING SWITCH
18	SWITCH-SPDT
19	SCREW 8, 32 X 1
20	WCI C460043
21	WCI G159907
22	SCREW 4-24 X 3/4
23	LEVER ARM
24	SWITCH-SPST
25	WIRE ASSEMBLY
26	WCI C460046
27	SUPPORT-HOUSING
28	SHUT-OFF ARM
29	WCI C460720
30	SHIELD
31	WCI G137760
32	MOLD AND HEATER ASSEMBLY (INCLUDES ILLUSTRATION 29)
33	SCREW 8-16 X 3/8
34	5303212918 Frigidaire Refrigerator Cont
35	ICE STRIPPER
36	WCI G164766
37	WCI G137756
38	WCI R900363
39	WCI G159906
40	WCI G185266
41	5305877995 Frigidaire Refrigerator P-1 Sealing Strip
42	5308000039 Frigidaire Refrigerator Screw
43	5304455852 Frigidaire Refrigerator Screw
44	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	240396801 Frigidaire Refrigerator Tube Clamp
46	CLAMP-TUBE (NON-ILLUSTRATED)
47	5304455846 Frigidaire Refrigerator Clamp
48	5303001193 Frigidaire Refrigerator Clamp
49	CLIP, HARNESS LOCATION
50	NUT, INLET TO SOLENOID VALVE
51	5303001147 Frigidaire Refrigerator Plug-Harness Hole
52	WCI G154156
53	215456100 Frigidaire Refrigerator Water Inlet Tube
54	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
55	BRACKET, VALVE TO REAR PANEL
56	WCI G99428
57	WCI G159914
58	WCI G159415
