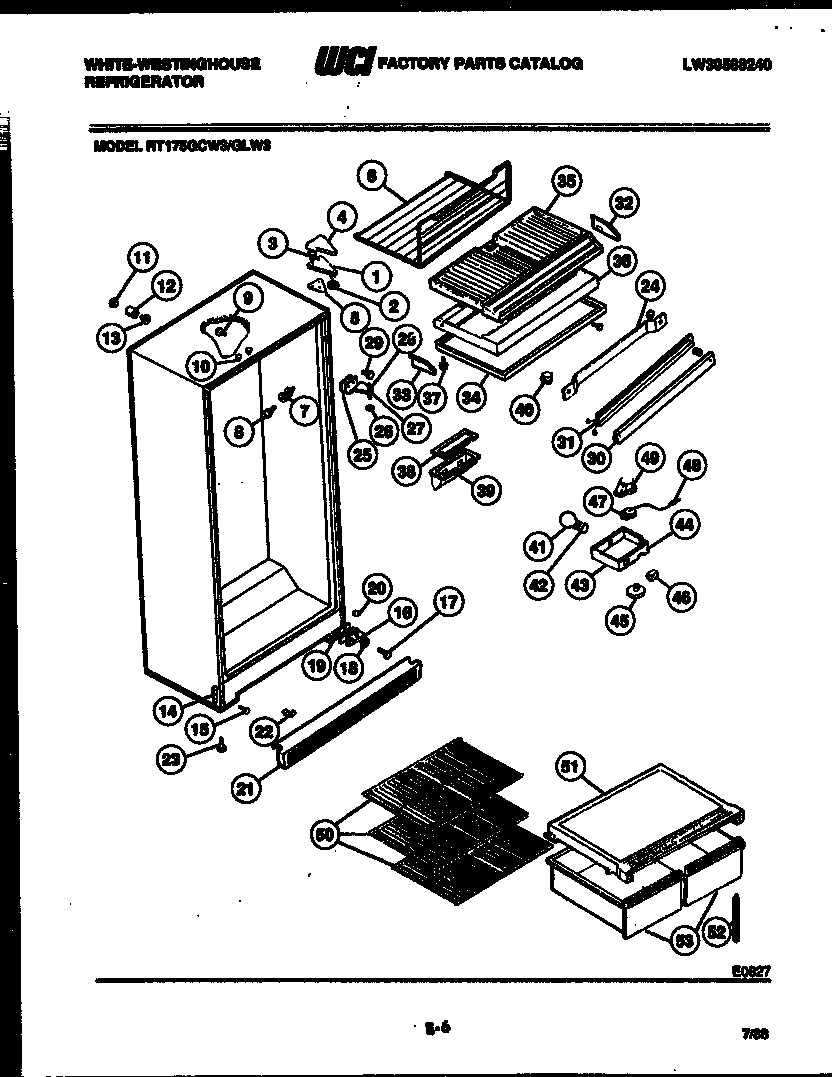

RT175GLH3 03 – CABINET PARTS

Products

Position	Product
1	BRACKET, TOP HINGE
2	WASHER, NYLON
3	241710601 Frigidaire Refrigerator Screw
4	COVER HINGE, WHEAT
5	WCI G183861
6	WCI G163311
6A	WCI G163312
7	SUPPORT, SHELF (8)
8	SCREW-SUPPORT MOUNTING (4) (NON-ILLUSTRATED)
9	WCI G163669
10	WCI G174747-09
11	WCI G174734
12	TUBE, INSULATION (2)
13	WCI G174733
14	WCI G141673
14A	TAPPING, PLATE (2)
15	WCI G142361
16	BRACKET-LOWER HINGE
17	SCREW - 1/4 X 1 (2)
18	NUT, SPEED (2)
19	SHIM, HINGE
20	WASHER, NYLON
21	TOE GRILL
21A	PLUG - LOWER GRILLE
22	WCI G162994
23	LEVELING SCREW (2)
24	STRAP, MULLION MOUNTING
25	SHIM, HINGE
26	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
27	WCI G162384
28	WCI G142220
29	SCREW, BRACKET MOUNTING (4)
30	WCI G162051-09
31	WCI G177254
32	WCI G162176
33	WCI G162177
34	REFR TOP-DIVIDER
35	WCI G161919-01
36	DIVIDER - COMPARTMENT
37A	WCI G174831
37	SCREW (5)
38	DEFLECTOR AIR
39	WCI G162178
40	5309918806 Frigidaire Refrigerator Light Switch Door
41	LIGHT BULB
42	SOCKET LIGHT
43	WCI G176722-01
44	LABEL-BOX
45	KNOB
46	WCI G178402-02
47	COLD CONTROL
48	TUBE
49	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
50	SHELF
51	WCI G162840-01
52	WCI G166310-01
53	PAN CRISPER
