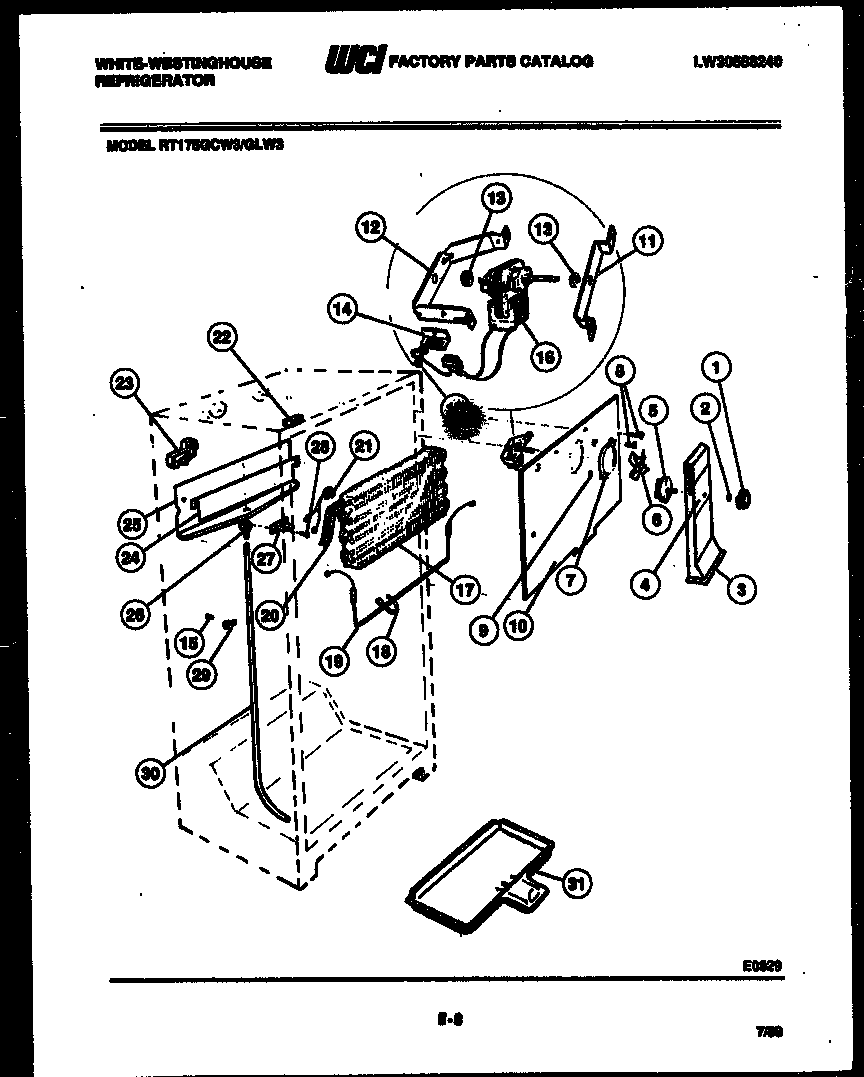

RT175GLH3 04 – INNER PARTS

Products

Position	Product
1	WCI G162663-15
2	NUT, DAMPER MOUNTING
3	COVER
4	LABEL
5	DAMPER FAN COVER
6	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING, FAN ORIFICE
8	5304455650 Frigidaire Refrigerator Screw
9	NUT, ORIFICE (2)
10	WCI G162050-01
11	WCI G185302
12	WCI G185303
13	G187559 Frigidaire Refrigerator Bushing
14	WCI G164571
15	5304455651 Frigidaire Refrigerator Screw
16	5300158289 Frigidaire Evaporator Fan Motor
17	WCI 3018157
18	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
19	5317842502 Frigidaire Defrost Heater
20	EXCHANGER-HEAT
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	BLOCK-RH
23	BLOCK, EVAPORATOR, LH
23A	PLUG - EVAP. INS. L.H.
24	INSULATOR
25	WCI G170071
26	ELBOW, DRAIN
27	SPOUT DRAIN TUBE
28	PIN PUSH SPOUT (2)
29	240396801 Frigidaire Refrigerator Tube Clamp
30	WCI G155529-04
31	PAN, DEFROST
