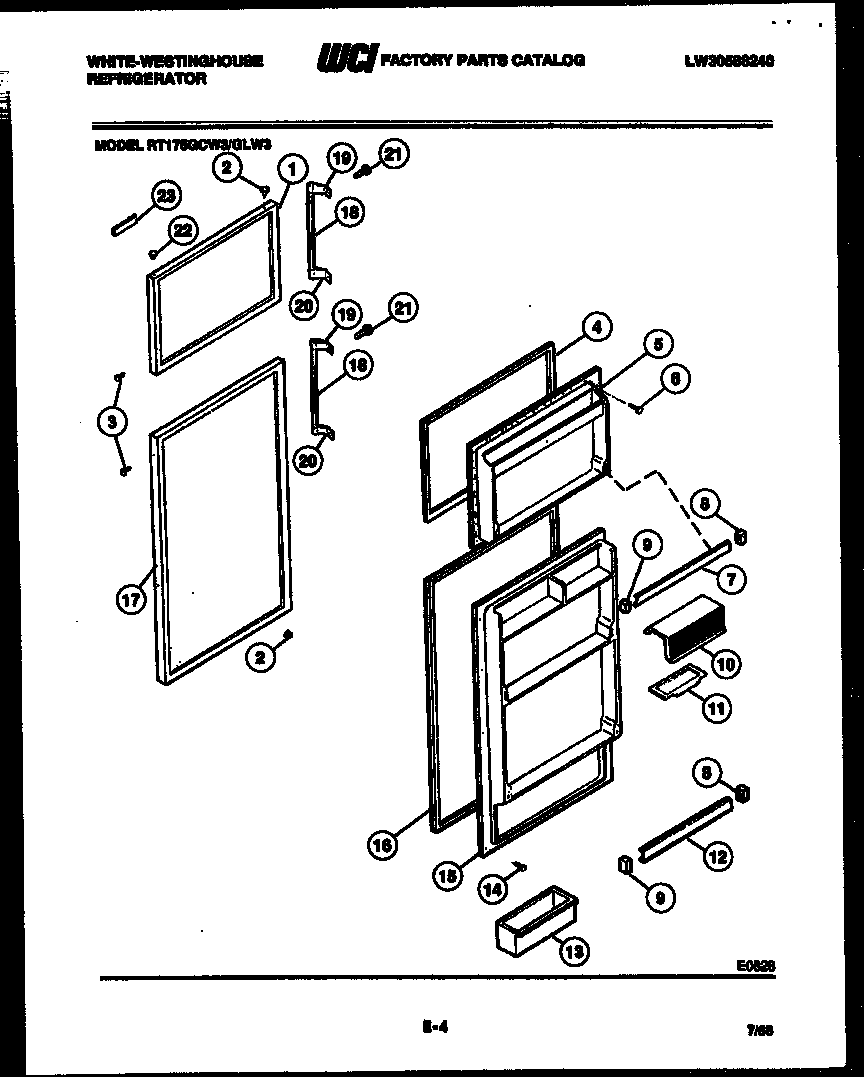

RT175GLV3 02 – DOOR PARTS

Products

Position	Product
1	WCI G177885-08
2	BEARING, HINGE (3)
3	WCI G162977-08
4	GASKET-FRZR DOOR
5	INNER PANEL
7	RACK-DOOR
8	SUPPORT-RACK RH (3)
9	SUPPORT-RACK LH (3)
10	DAIRY DOOR
11	5308000716 Frigidaire Refrigerator Dish
12	RACK-DOOR (2)
13	EGG CONTAINER
14	5304455651 Frigidaire Refrigerator Screw
15	INNER PANEL
16	GASKET-REFR DOOR
17	WCI G177889-08
18	WCI G175666-17
19	END-HANDLE TOP
20	WCI G175810
21	WCI G185566
22	WCI G169332-08
23	WCI G89643
23	FRAME-NAMEPLATE
23	LABEL-NAMEPLATE (NON-ILLUSTRATED)
