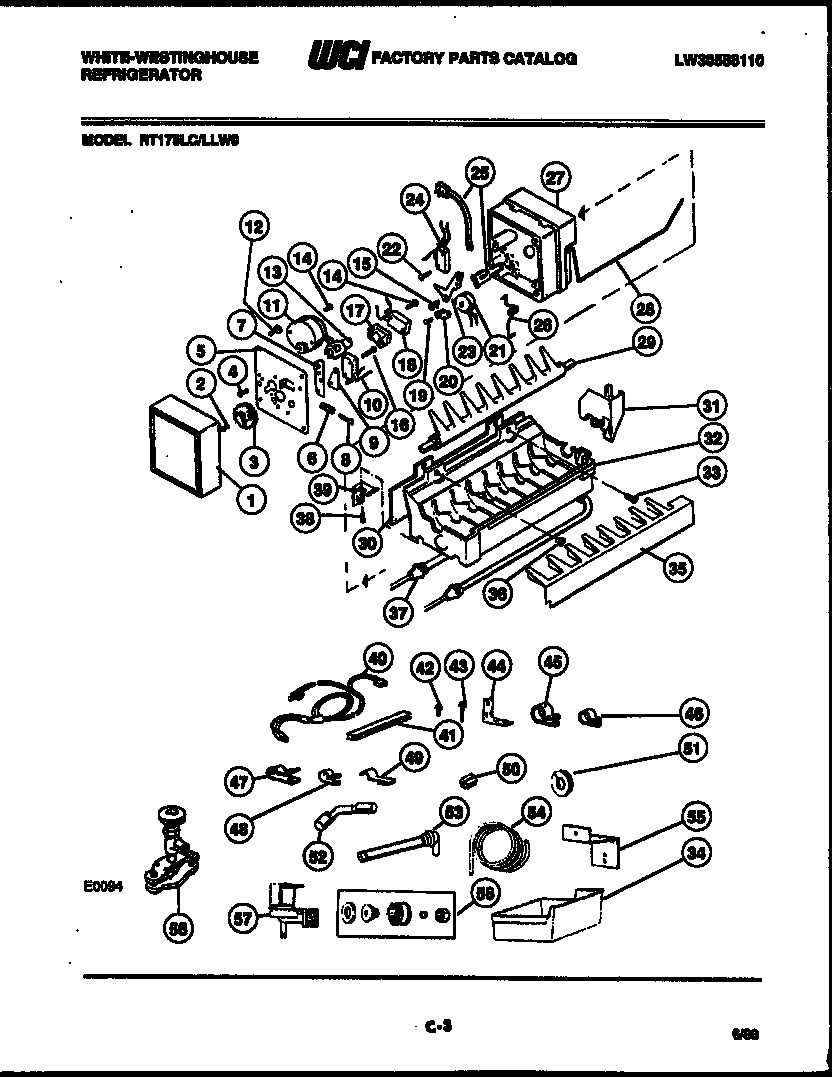

RT175LCF0 05 – ICE MAKER AND INSTALLATION PARTS

Products

PositionProduct
1ADOOR CLOSER
1WCI R262301
2SCREW
3WCI C460057
4WCI M1090016
5WCI G186572
6WCI G159909
7WCI G159905
9WCI 3018588
11MOTOR
12WCI G159898
13WCI C460056
14SCREW 4-40 X 1 (2)
15SHOULDER SCREW
16SCREW 4-40 X 3/4 (2)
17SPACER, HOLDING SWITCH
18SWITCH-SPDT
19SCREW 8, 32 X 1
20WCI C460043
21WCI G159907
22SCREW 4-24 X 3/4
23LEVER ARM
24SWITCH-SPST
25WIRE ASSEMBLY
26WCI C460046
27SUPPORT-HOUSING
28SHUT-OFF ARM
29WCI C460720
30SHIELD
31WCI G137760
32MOLD AND HEATER ASSEMBLY (INCLUDES ILLUSTRATION 29)
33SCREW 8-16 X 3/8
345303212918 Frigidaire Refrigerator Cont
35ICE STRIPPER
36WCI G164766
37WCI G137756
38WCI R900363
39WCI G159906
40WCI G185266
415305877995 Frigidaire Refrigerator P-1 Sealing Strip
425308000039 Frigidaire Refrigerator Screw
435304455852 Frigidaire Refrigerator Screw
445303001199 Frigidaire Refrigerator Wiring Harness Clamp
45240396801 Frigidaire Refrigerator Tube Clamp
46CLAMP-TUBE (NON-ILLUSTRATED)
475304455846 Frigidaire Refrigerator Clamp
485303001193 Frigidaire Refrigerator Clamp
49CLIP, HARNESS LOCATION
50NUT, INLET TO SOLENOID VALVE
515303001147 Frigidaire Refrigerator Plug-Harness Hole
52WCI G154156
53215456100 Frigidaire Refrigerator Water Inlet Tube
545308010366 Frigidaire Refrigerator P1-Water Inlet Tube
55BRACKET, VALVE TO REAR PANEL
56WCI G99428
57WCI G159914
58WCI G159415
