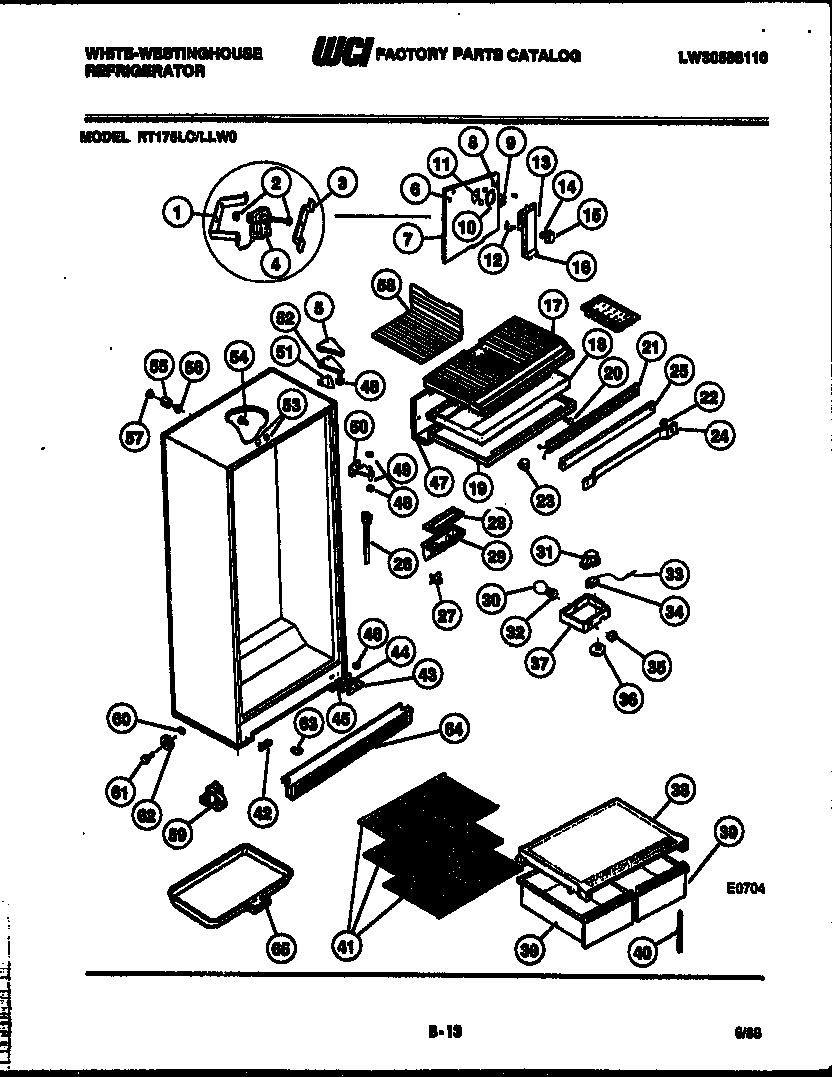

RT175LCW0 03 – CABINET PARTS

Products

Position	Product
1	WCI G185303
2	G187559 Frigidaire Refrigerator Bushing
3	WCI G185302
4	5300158289 Frigidaire Evaporator Fan Motor
5	COVER HINGE, WHITE
6	PLUG-BUTTON DECOR
7	WCI G162050-01
8	5304455650 Frigidaire Refrigerator Screw
9	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
10	RING, FAN ORIFICE
11	NUT, ORIFICE (2)
12	DAMPER FAN COVER
13	LABEL
15	WCI G162663-15
16	COVER
17	WCI G161919-01
18	DIVIDER – COMPARTMENT
19	REFR TOP-DIVIDER
20	SCREW (5)
21	WCI G168722
22	SPACER, MULLION (2)
23	5309918806 Frigidaire Refrigerator Light Switch Door
24	STRAP, MULLION MOUNTING
25	WCI G162051-01
26	TUBE-DRAIN
27	SPOUT DRAIN TUBE
28	DEFLECTOR AIR
29	WCI G162178
30	316538904 Frigidaire Oven Lamp Light
31	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
32	SOCKET LIGHT
33	TUBE
34	COLD CONTROL
35	WCI G178402-02
36	KNOB
37A	LABEL-BOX
37	WCI G176722-01
38	WCI G162840-01
39	PAN CRISPER
40	WCI G166310-01
41	SHELF
42	WCI G166912
43	BRACKET-LOWER HINGE
44	SHIM, HINGE
45	TAPPING, PLATE (2)
46	WCI G103903
47	WCI G170071
48	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
49	WCI G142220
50	WCI G162384
50A	SHIM, HINGE
51	WCI G183861
52	BRACKET, TOP HINGE
53	WCI G174747–01
54	WCI G163669
55	TUBE, INSULATION (2)
56	WCI G174733
57	WCI G174734
58B	SUPPORT, SHELF (8)
58	WCI G163311
58A	WCI G163312
59	ROLLER ASSY (2)
60	NUT, DAMPER MOUNTING
61	WCI G162809
62	ROLLER (2)
63	WCI G162994
64	TOE GRILL
65	PAN, DEFROST
