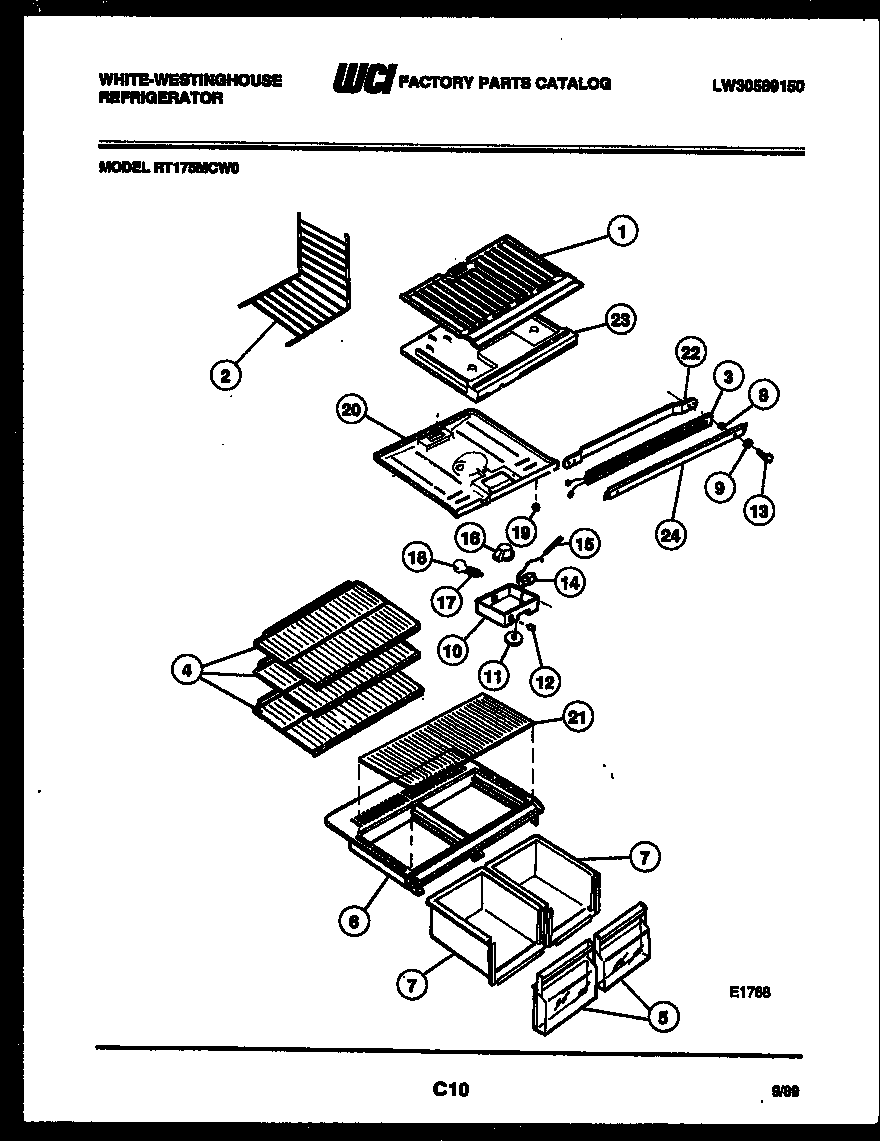

RT175MCD0 04 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI 3206187
2A	SUPPORT-SHELF (2) (NON-ILLUSTRATED)
2B	SCREW-SUPPORT (2)
2D	5304455852 Frigidaire Refrigerator Screw
2C	WCI 3001562
2E	WCI G186773
2	WCI 3001570
3	WCI 3206120
4	SHELF-SLIDING, REFR, (3)
5	FRONT-CRISPER PAN-LH
6	WCI 3206183
7	PAN - CRISPER
8	SPACER (NON-ILLUSTRATED)
9	WASHER (2)
10	WCI 3206130
10A	5304455650 Frigidaire Refrigerator Screw
11	KNOB-TEMP CONTROL
12	WCI 3206129
13	SCREW - MULLION (2)
14	CONTROL-TEMPERATURE
14A	WCI G107080
15	WCI 3018891
16A	5304455649 Frigidaire Refrigerator Screw
16	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17	218906802 Frigidaire Light Lamp Socket
18	316538904 Frigidaire Oven Lamp Light
19	5309918806 Frigidaire Refrigerator Light Switch Door
20A	SCREW (5)
20	WCI 3206185
21	WCI 3206182
22	CLAMP, MULLION MOUNTING
23B	3205266 Frigidaire Refrigerator Edge Protector
23	WCI 3206186
23A	WCI 3018900
24	WCI 3206125
