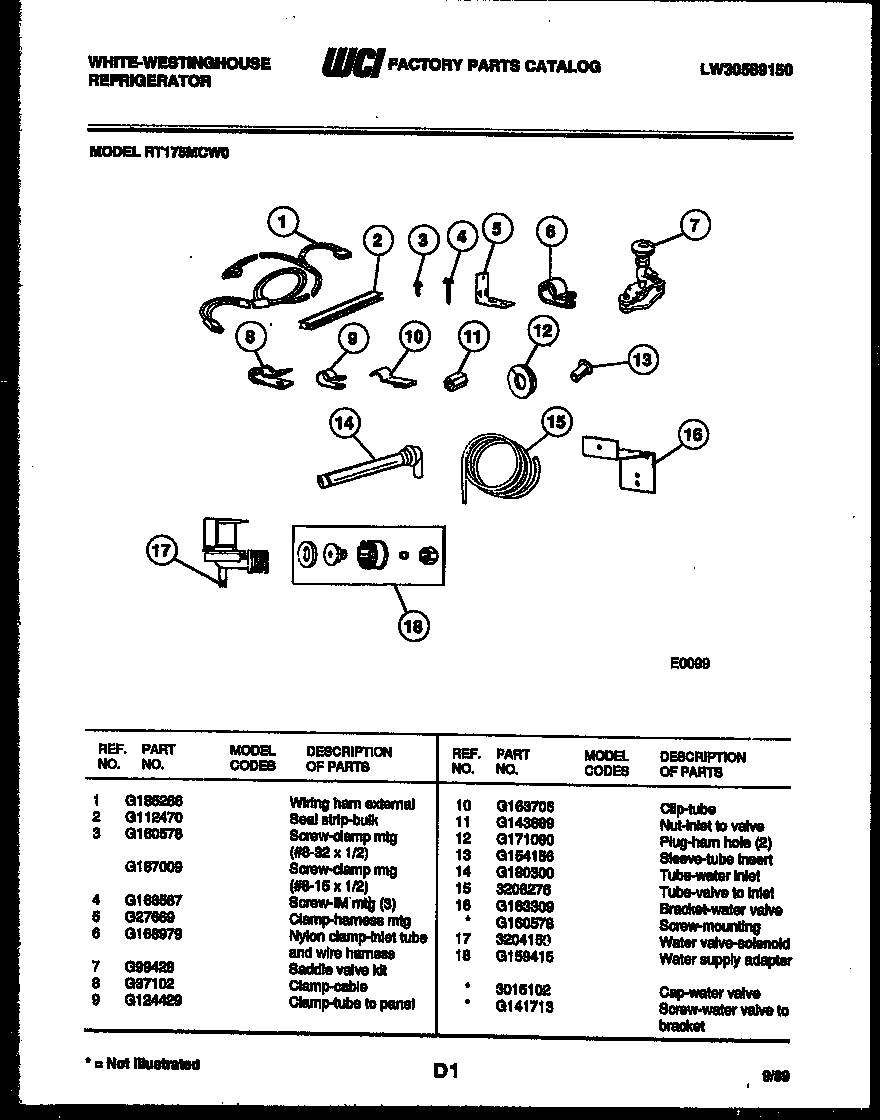

RT175MCD0 07 – ICE MAKER INSTALLATION PARTS

Products

Position	Product
*21589	5304455852 Frigidaire Refrigerator Screw
*21588	WCI 3015102
1	WCI G185266
2	5305877995 Frigidaire Refrigerator P-1 Sealing Strip
3	5304455651 Frigidaire Refrigerator Screw
5	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
6	240396801 Frigidaire Refrigerator Tube Clamp
7	WCI G99428
8	5304455846 Frigidaire Refrigerator Clamp
9	5303001193 Frigidaire Refrigerator Clamp
10	CLIP, HARNESS LOCATION
11	NUT, INLET TO SOLENOID VALVE
12	5303001147 Frigidaire Refrigerator Plug-Harness Hole
13	WCI G154156
14	215456100 Frigidaire Refrigerator Water Inlet Tube
15	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
16	BRACKET, VALVE TO REAR PANEL
16A	5308000039 Frigidaire Refrigerator Screw
17	WATER VALVE-SOLENOID
18	WCI G159415
