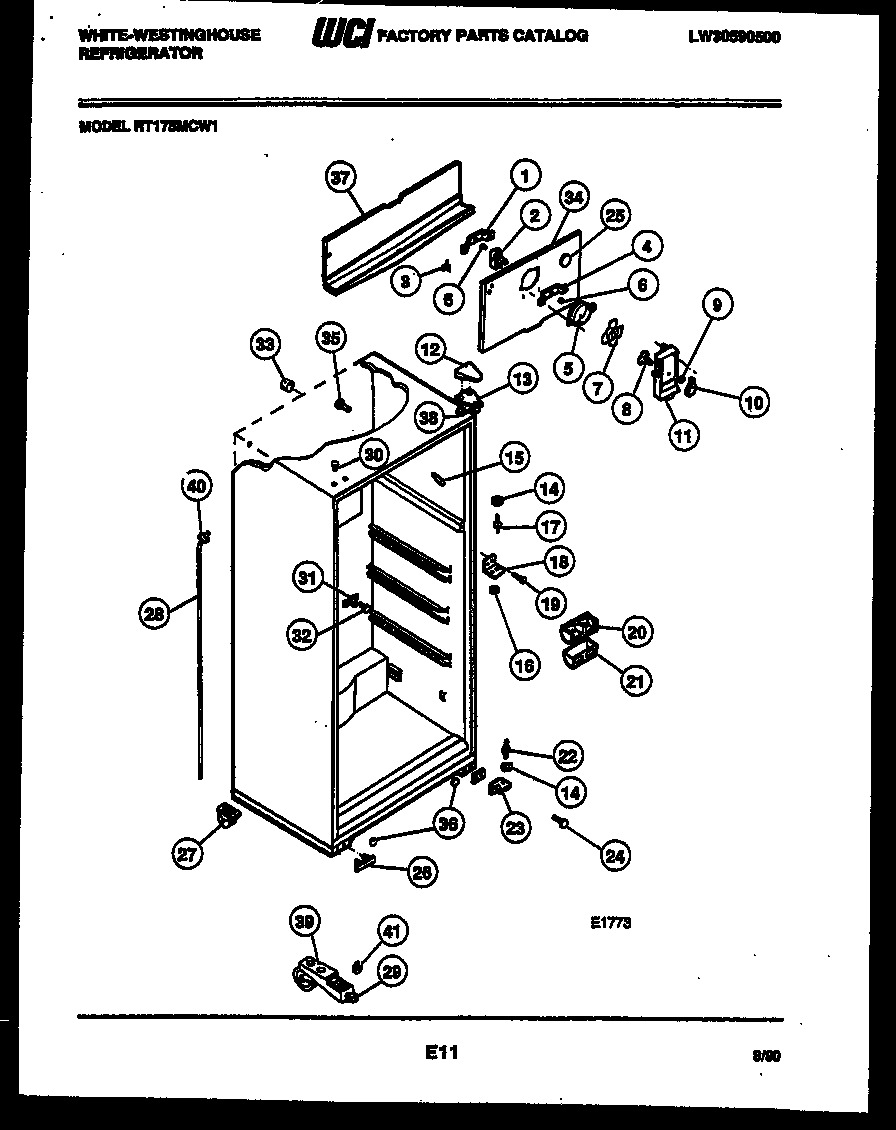

RT175MCH1 03 – CABINET PARTS

RT175MCH1 03 – CABINET PARTS

Written by

in

RT175MCH1 03 – CABINET PARTS

Products

PositionProduct
*31250PLUG, BUTTON, CABINET LINER (NI)
*31250TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1WCI 5303001227
25300158289 Frigidaire Evaporator Fan Motor
3WCI 5308000107
3A5304455651 Frigidaire Refrigerator Screw
4WCI 5303001226
5A218843801 Frigidaire Refrigerator Screw
5RING-FAN ORIFICE
6G187559 Frigidaire Refrigerator Bushing
75308000010 Frigidaire Refrigerator Evaporator Fan Blade
8WCI 3206110
9Nut,push-on
10WCI 3206109
11FAN COVER
11A5304455650 Frigidaire Refrigerator Screw
12COVER-UPPER HINGE, WHEAT
13WCI 3206100
14WASHER, .34 X .62 X .05, NYLON
15WCI 5303202338
16WCI 5308000186
17WCI 5308000184
18BRACKET-CTR HINGE
19SCREW – MULLION (2)
20WCI 3204206
21COVER – AIR DEFLECTOR
225303001321 Frigidaire Refrigerator Lower Hinge Pin
23WCI 3206136
24241710601 Frigidaire Refrigerator Screw
255303208309 Frigidaire Refrigerator Plug Hole
26WCI 3206135
27WCI 3206237
28TUBE-DEFROST DRAIN
28AWCI 5300187009
29BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
30BUTTON-HINGE-WHEAT
31WCI 5308000056
32WCI 5303001361
33TUBE-RUBBER
34ANUT-SPEED (2)
34WCI 3206119
35SUPPORT-COIL COVER
36PLUG-BUTTON
37WCI 3206146
38SHIM – UPPER HINGE
39WCI 5300188673
39AWCI 5308009760
39BWCI 5308009790
39C5304500008 Frigidaire Oven Screw
40SEAL RING-DRAIN TUBE
41WCI 5308011326
