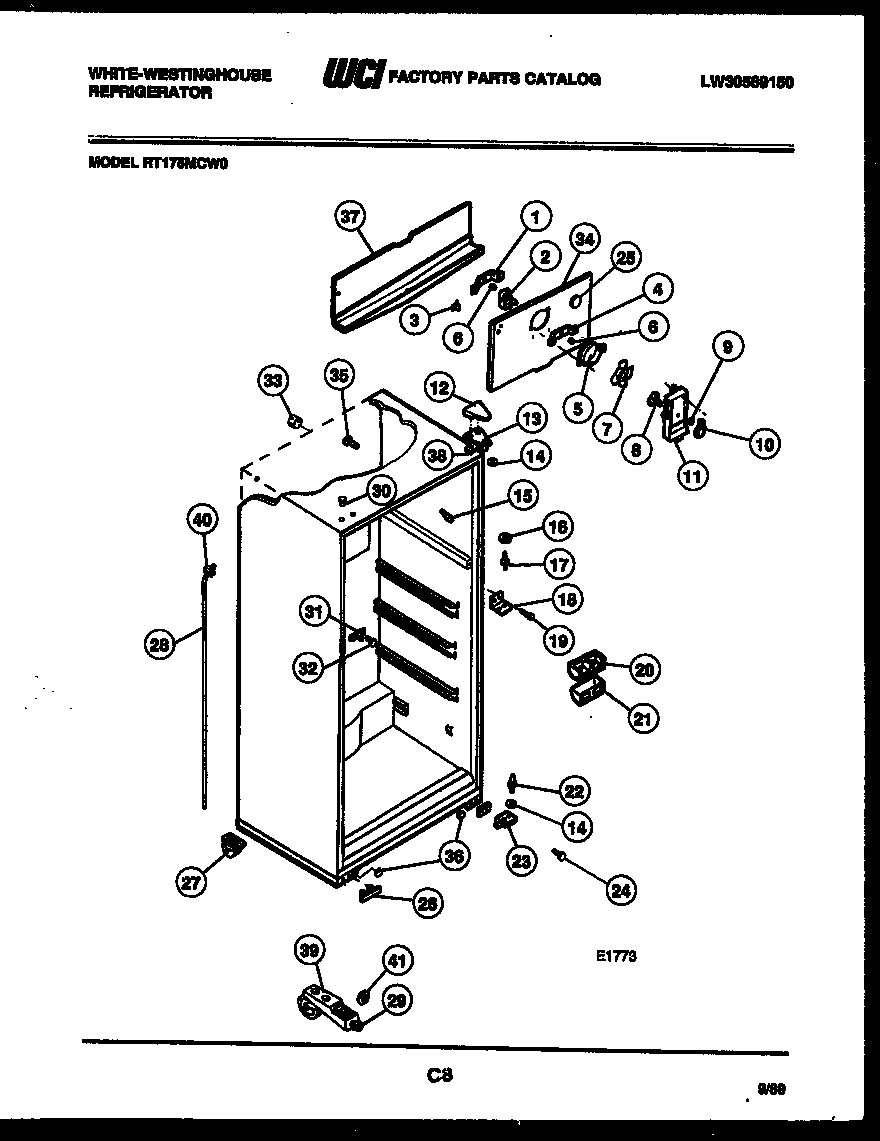

RT175MCW0 03 – CABINET PARTS

Products

Position	Product
1	WCI G185303
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI G164571
4	WCI G185302
5A	218843801 Frigidaire Refrigerator Screw
5	RING, FAN ORIFICE
6	G187559 Frigidaire Refrigerator Bushing
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	WCI 3206110
9	NUT, DAMPER MOUNTING
10	WCI 3206109
11	FAN COVER
11A	5304455650 Frigidaire Refrigerator Screw
12	WCI 3206101
13	WCI 3206100
13A	241710601 Frigidaire Refrigerator Screw
14	WCI G103903
15	WCI 3202336
16	WASHER-CNTR HNGE
17	WCI G142220
18	BRACKET, HINGE CENTER
19	SCREW - MULLION (2)
20	WCI 3204206
21	WCI G162178
22	5303001321 Frigidaire Refrigerator Lower Hinge Pin
23	WCI 3206136
25	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
26	WCI 3206135
27	WCI 3206237
28	TUBE-DEFROST DRAIN
28A	5304455651 Frigidaire Refrigerator Screw
29	BOLT-ROLLER (2)
30	WCI G174747--01
31	WCI 08000056
32	PIN-PUSH
33	TUBE, INSULATION (2)
34	WCI 3206119
34A	NUT, ORIFICE (2)
35	WCI G163669
36	PLUG-BUTTON
37	WCI 3206146
38	WCI G183861
39B	SPRING-ROLLER (2)
39C	5304500008 Frigidaire Oven Screw
39	ROLLER-FRONT (2)
39A	ROLLER FRONT, ADJUSTABLE (2)
40	RING, SEAL (NON-ILLUSTRATED)
41	WASHER
