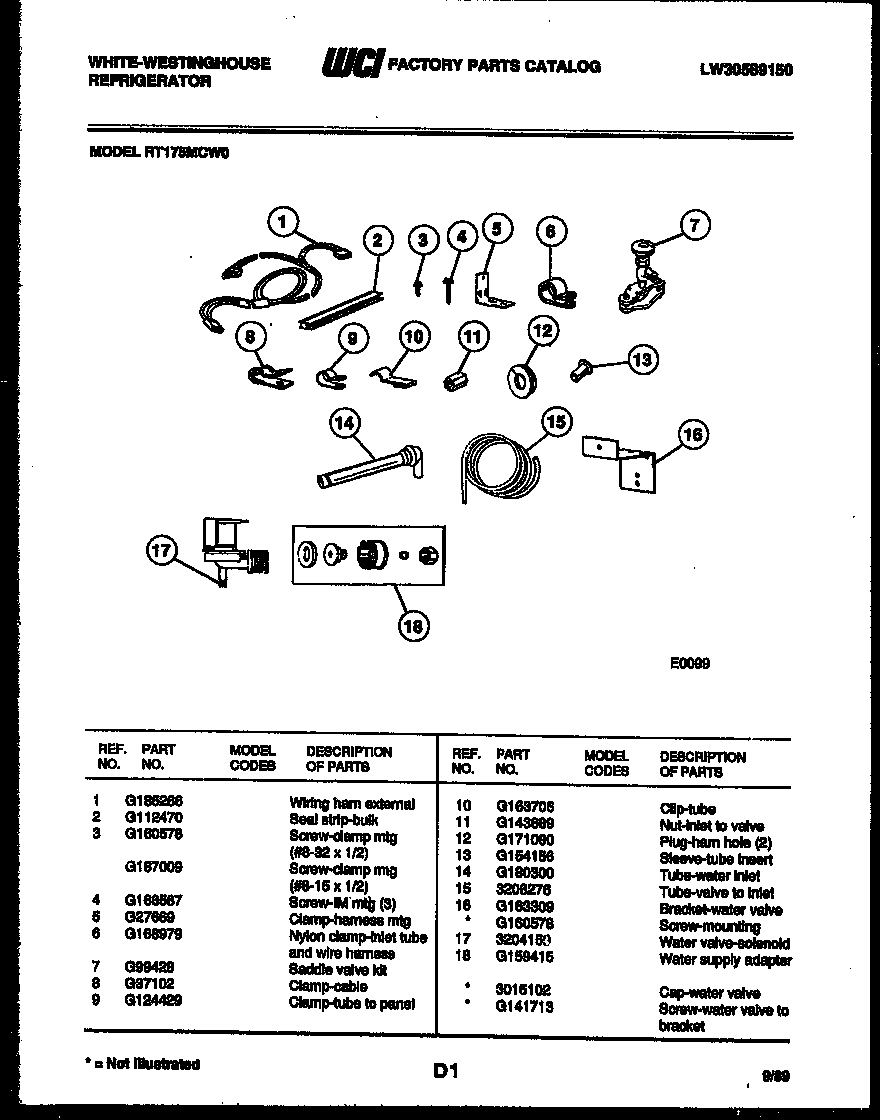

RT175MCW0 07 – ICE MAKER INSTALLATION PARTS

RT175MCW0 07 – ICE MAKER INSTALLATION PARTS

Written by

in

RT175MCW0 07 – ICE MAKER INSTALLATION PARTS

Products

PositionProduct
*215895304455852 Frigidaire Refrigerator Screw
*21588WCI 3015102
1WCI G185266
25305877995 Frigidaire Refrigerator P-1 Sealing Strip
35304455651 Frigidaire Refrigerator Screw
55303001199 Frigidaire Refrigerator Wiring Harness Clamp
6240396801 Frigidaire Refrigerator Tube Clamp
7WCI G99428
85304455846 Frigidaire Refrigerator Clamp
95303001193 Frigidaire Refrigerator Clamp
10CLIP, HARNESS LOCATION
11NUT, INLET TO SOLENOID VALVE
125303001147 Frigidaire Refrigerator Plug-Harness Hole
13WCI G154156
14215456100 Frigidaire Refrigerator Water Inlet Tube
155308010366 Frigidaire Refrigerator P1-Water Inlet Tube
16BRACKET, VALVE TO REAR PANEL
16A5308000039 Frigidaire Refrigerator Screw
17WATER VALVE-SOLENOID
18WCI G159415
