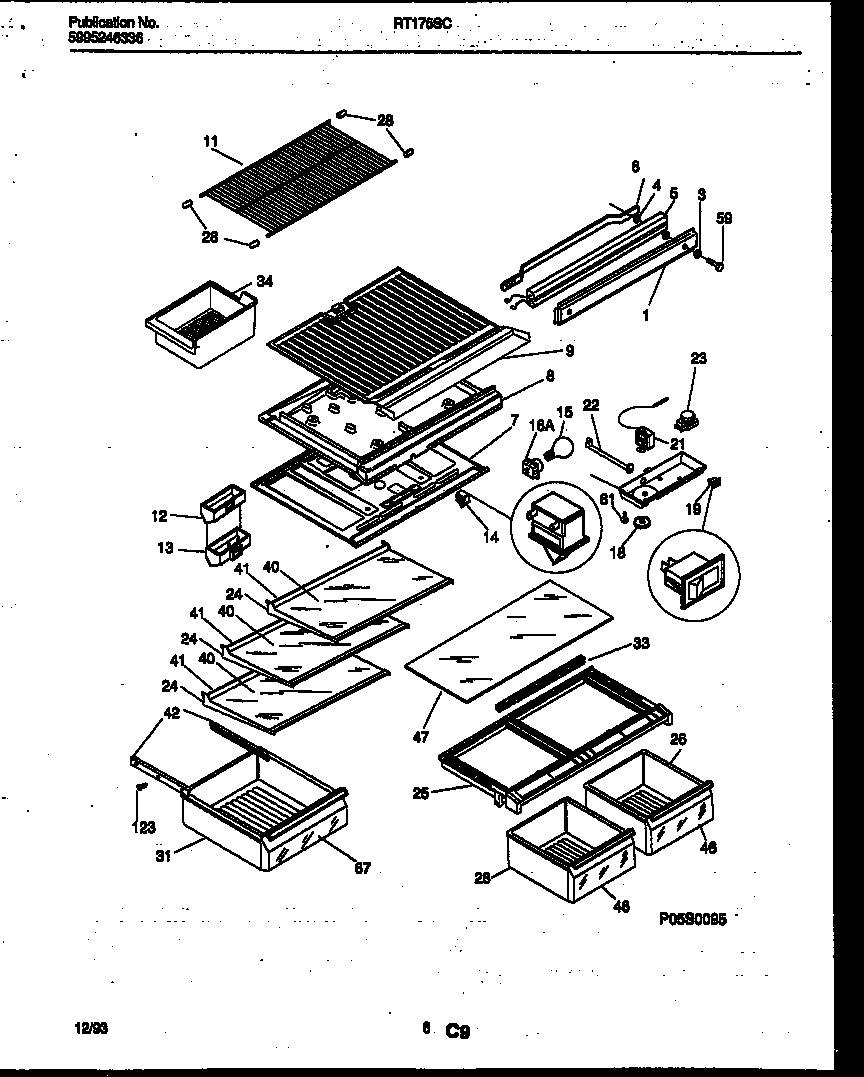

RT175SCW1 04 – SHELVES AND SUPPORTSadmin2025-04-26T10:28:49+00:00RT175SCW1 04 – SHELVES AND SUPPORTS
Products
| Position | Product |
|---|
| *86245 | CLIP-CANTILEVER SHLF |
| *86245 | LOCK-SHELF TRIM, REAR |
| 1 | WCI 3206121 |
| 3 | WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI) |
| 4 | SPACER-MULLION MTG, STEEL |
| 5 | WCI 3206120 |
| 6 | WCI 215170801 |
| 7A | WCI 5303001380 |
| 7 | WCI 3206185 |
| 8A | WCI 3018900 |
| 8B | 3205266 Frigidaire Refrigerator Edge Protector |
| 8 | WCI 3206186 |
| 9 | WCI 3206187 |
| 11 | SHELF-FREEZER, FIXED/FLAT, FULL WIDTH, WIRE |
| 12A | 5303001449 Frigidaire Refrigerator Seal |
| 12 | DEFLECTRO, AIR, W/SEAL |
| 13A | EXTENSION, AIR DEFLECTOR, WITH INSULATION |
| 13 | WCI 5303001448 |
| 14 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16A | 218906802 Frigidaire Light Lamp Socket |
| 17A | NUT, ANCHOR (NI) |
| 17 | WCI 3206130 |
| 18 | WCI 5303209251 |
| 19 | WCI 3206129 |
| 21 | WCI 5303018894 |
| 21A | WCI 5303001260 |
| 22 | WCI 3018891 |
| 23A | 5304455649 Frigidaire Refrigerator Screw |
| 23 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 24 | WCI 215069038 |
| 24 | WCI 215069030 |
| 25 | WCI 3206183 |
| 26 | PAN - CRISPER |
| 28 | END CAP-SHELF,PROTECTOR |
| 29 | TRIM-SHELF, 23.30``, FRONT |
| 29A | WCI 5303209274 |
| 31 | WCI 3206351 |
| 34 | 5303212918 Frigidaire Refrigerator Cont |
| 40 | GLASS-SHELF, 23.26`` X 15.57`` |
| 41 | WCI 5303288855 |
| 42 | WCI 5303282330 |
| 42A | WCI 5303282331 |
| 46 | WCI 5303288918 |
| 47 | WCI 5303271945 |
| 59 | WCI 5308012258 |
| 67 | WCI 5303288920 |
| 81 | 5304455650 Frigidaire Refrigerator Screw |
| 123 | WCI 08014528 |
