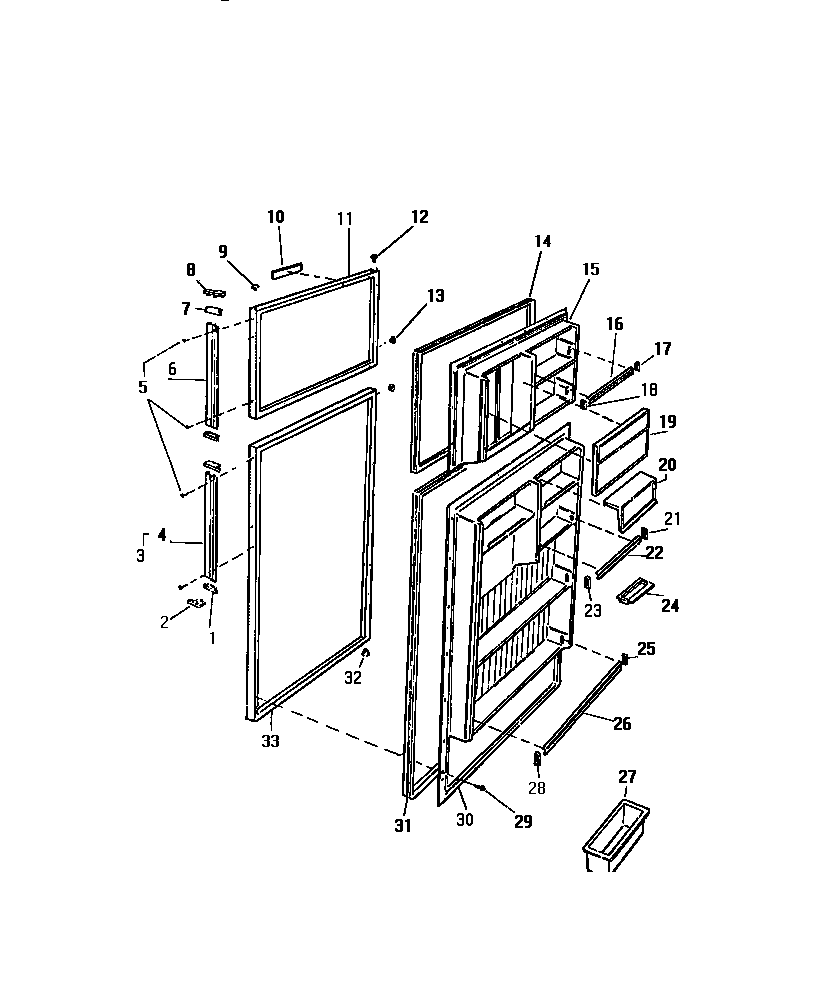

RT176GCV3 02 – DOORS

Products

Position	Product
*90363	WCI C29111
*90361	FIBERGLASS INSULATION 34“X48“X1/2“ TH
*90365	5300168328 Frigidaire Refrigerator Liner Repair Epoxy Tape
*90362	FIBERGLASS INSULATION 34“X48“X1“TH
*90360	TAPE, VINYL HANDLE ( ELM BURL FINISH )
*90364	PLASTIC BAG
2	TRIM, BTM
3	CLIP
5	SCREW HANDLE MTG (8)
6	WCI G177141-03
7A	CAP
7	CAP
8	TRIM, TOP
9	WCI G169332-08
10	WCI R304001
11	WCI G178431-08
13	WCI G162977-08
14	WCI G180547-06
15	WCI G179822-01
16	FRONT
19	WCI G179939-01
20	WCI G179967-02
21	WCI G177221-01
22	WCI G177220-03
23	WCI G177222-01
24	5308000716 Frigidaire Refrigerator Dish
25	SUPPORT-RACK RH (3)
26	RACK-DOOR (2)
27	EGG CONTAINER
28	SUPPORT-RACK LH (3)
29	218843801 Frigidaire Refrigerator Screw
30	PANEL-REFRIGERATOR, INTERIOR
31	GASKET – REFRIG. DOOR
32A	RING
32	WCI G162889
33	PANEL-REFR, AVOC
