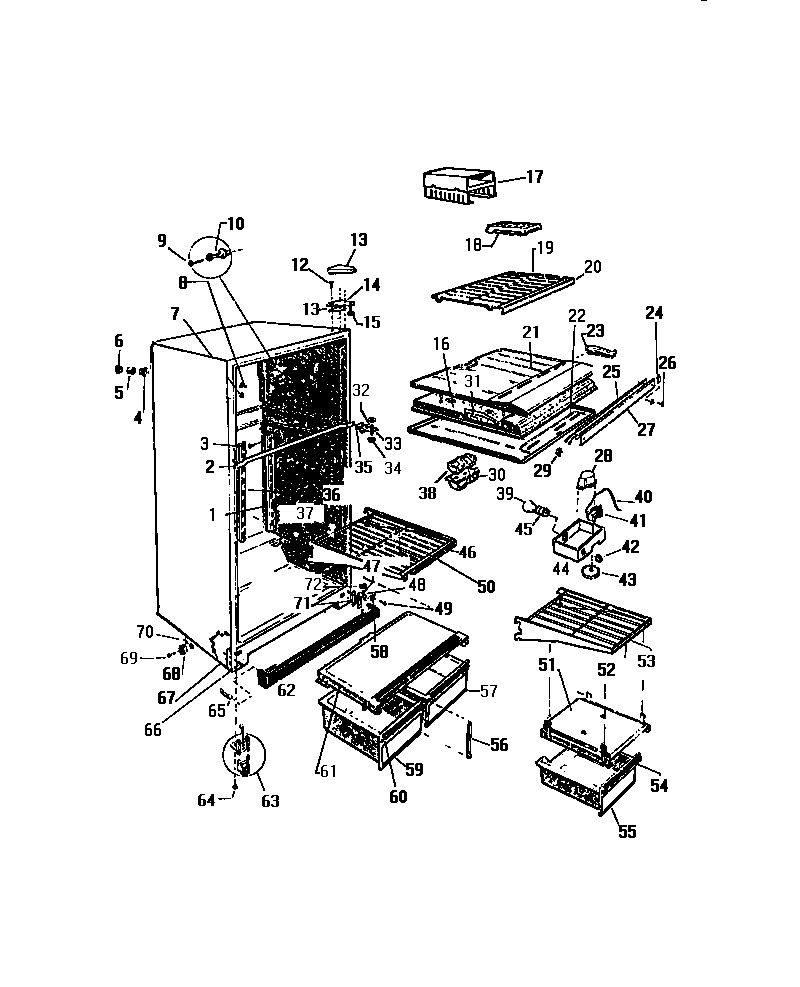

RT176GCW4 03 – CABINET & SHELVING

Products

Position	Product
*90366	WCI G180108-02
1	CHANNEL, SHELF (2)
1A	5304455852 Frigidaire Refrigerator Screw
3	5304455650 Frigidaire Refrigerator Screw
4	WCI G174733
5	TUBE, INSULATION (2)
6	WCI G174734
7	WCI G102059
8	WCI G163669
9	SCREW – SUPPORT TO LINER (8)
10	SUPPORT, SHELF (8)
11	COVER HINGE, WHITE
12	241710601 Frigidaire Refrigerator Screw
13	SHIM
14	HINGE, RT SD/ L.SD
15	WASHER, NYLON
16	DIVIDER – COMPARTMENT
17	ICE TRAY COMPT
18	ICE TRAY
19	WCI G177415-02
20	WCI G177080-03
21	WCI G161919-01
22	WCI G174714
23	WCI G162176
24	STRAP, MULLION MOUNTING
25	WCI G177254
27	WCI G162051
28	215846604 Frigidaire Refrigerator Defrost Timer
29	5309918806 Frigidaire Refrigerator Light Switch Door
30	WCI G162178
31	WCI G162177
32	WCI G142220
33	WCI G162384
35	SHIM, HINGE
36	CHANNEL, CENTER SHELF, MOUNTING
37	TRIM, REAR
38	DEFLECTOR AIR
39	WCI G63749
40	TUBE
41	COLD CONTROL
42	SWITCH
43	KNOB
43A	WCI G180197
44	WCI G176722-01
45	WCI G163802
48	BRACKET-LOWER HINGE
49	SCREW
51	WCI G177106-04
52	TRIM, SHELF, CUT TO SIZE
53	HALF SHELF WIRE (3)
55	PAN, MEAT
56	WCI G166310-01
57	PAN, FRUIT
58	NUT, SPEED (2)
59	PAN, CRISPER
60	WCI G177343-06
61	WCI G162840-01
62	WCI G163080-03
63	ROLLER ASSEMBLY – FRONT (2)
64	BOLT, HOUSING TO FRONT RAIL (2)
65	WCI G162994
66	WCI G142361
67	TAPPING PLATE (2)
68	ROLLER (2)
69	WCI G162809
70	NUT, DAMPER MOUNTING
71	SHIM, HINGE
72	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
