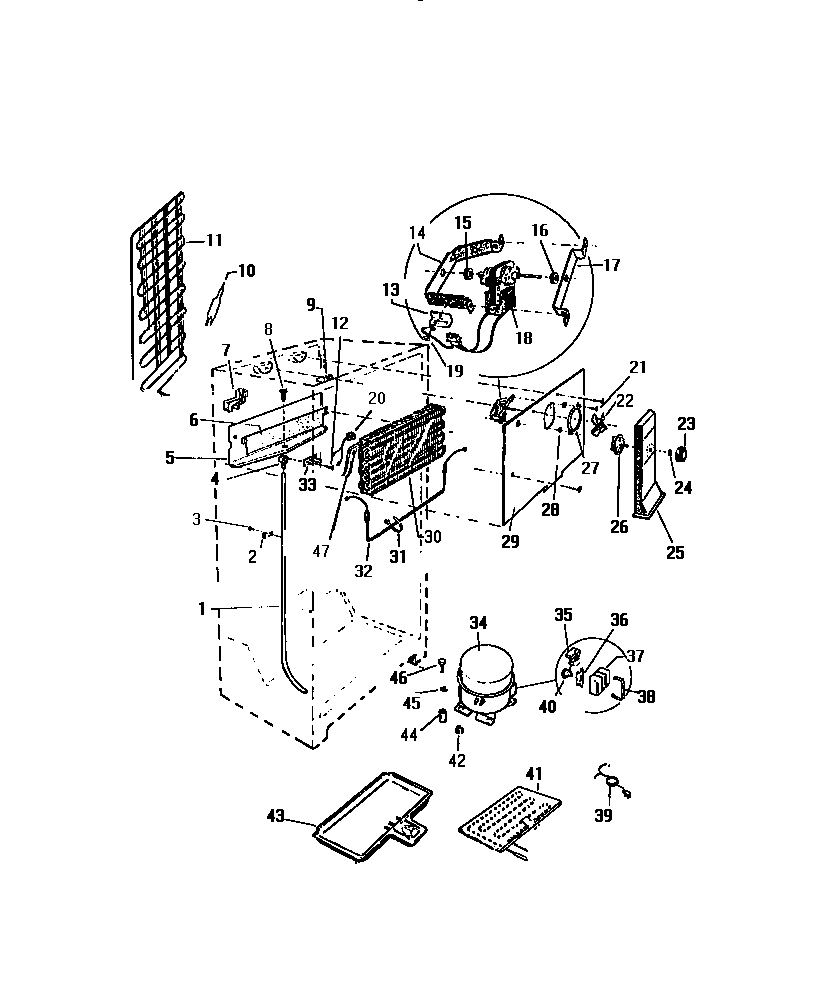

RT176GCW4 04 – COOLING SYSTEM

Products

Position	Product
1	WCI G156529-04
2	WCI G101747
4	ELBOW, DRAIN
5	WCI G170071
6	INSULATOR
7	TROUGH
8	WCI G101620
9	WCI G163099
10	WCI R900125
10A	DRIER-REGULAR
11	WCI G162739
11A	WCI G176210
13	WCI G164571
14	BRACKET, REAR MOTOR MOUNTING
16	G187559 Frigidaire Refrigerator Bushing
17	BRACKET, FRONT MOTOR MOUNTING
18	5300158289 Frigidaire Evaporator Fan Motor
20	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
21	WCI Q401601
22	WCI Q126599
23	LABEL-FAN CVR
23A	WCI G162663-13
24	NUT, DAMPER MOUNTING
25	WCI G179793-02
26	DAMPER FAN COVER
27	RING, FAN ORIFICE
28	WCI G162701
29	WCI G162050-01
30	EVAPORATOR
31	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
32	5317842502 Frigidaire Defrost Heater
33	SPOUT DRAIN TUBE
34	COMPRESSOR W/ELECT.
35	WCI G182225-12
37	WCI G185792
38	STRAP-COVER
39	CORD, SERVICE
40	WCI G185797
41	WCI G172813
42	218513300 Frigidaire Refrigerator Compressor Mount Grommet
43	PAN, DEFROST
44	SLEEVE COMP MTG (3)
45	WASHER, COMPRESSOR MOUNTING (4)
46	WCI G154589
47A	HEAT EXCHANGER REPAIR KIT
47	EXCHANGER-HEAT
