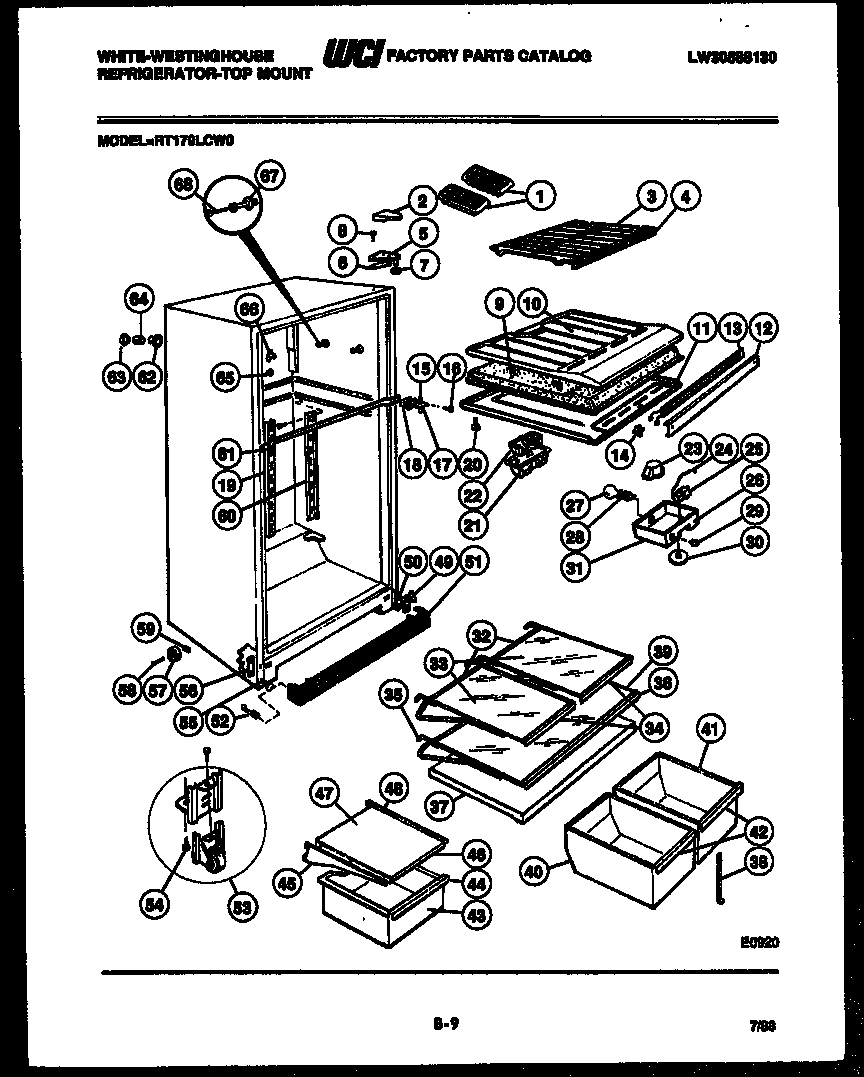

RT176LCF0 03 – CABINET PARTSadmin2025-04-26T10:26:20+00:00RT176LCF0 03 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | WCI G162178 |
| 2 | DEFLECTOR AIR |
| 3B | WCI G142361 |
| 3 | BRACKET-LOWER HINGE |
| 3D | WCI G141673 |
| 3C | NUT, SPEED (2) |
| 3A | SCREW - 1/4 X 1 (2) |
| 4 | ROLLER ASSY (2) |
| 5 | BRACKET, TOP HINGE |
| 6 | WCI G183861 |
| 7 | WASHER, NYLON |
| 8 | 241710601 Frigidaire Refrigerator Screw |
| 9 | WCI G166171 |
| 10 | WCI G155529-04 |
| 11 | COVER, TOP HINGE, AVOCADO |
| 11 | COVER HINGE, COFFEE |
| 11 | COVER HINGE, WHITE |
| 11 | COVER HINGE, WHEAT |
| 11 | COVER, TOP HINGE, ALMOND |
| 12 | ROLLER (2) |
| 14 | WCI G162809 |
| 15 | WCI G142220 |
| 16 | SCREW, BRACKET MOUNTING (4) |
| 17 | WCI G162384 |
| 18 | SHIM, HINGE |
| 19 | CHANNEL, CENTER SHELF, MOUNTING |
| 20 | TAPPING, PLATE (2) |
| 21 | CHANNEL, SHELF (2) |
| 22 | STRAP, MULLION MOUNTING |
| 23 | WCI G174733 |
| 24 | TUBE, INSULATION (2) |
| 25 | PLUG, DECORATIVE |
| 26 | DAMPER FAN COVER |
| 27 | NUT, DAMPER MOUNTING |
| 28 | WCI G162663-15 |
| 29 | COVER |
| 30 | 5304455650 Frigidaire Refrigerator Screw |
| 31 | WCI G162994 |
| 32 | WCI G163080-03 |
| 33 | BUTTON, LINER |
| 34 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 35 | RING, FAN ORIFICE |
| 36 | G187559 Frigidaire Refrigerator Bushing |
| 37 | 5300158289 Frigidaire Evaporator Fan Motor |
| 38 | WCI G185302 |
| 39 | WCI G185303 |
| 40 | WCI G162050-01 |
| 41 | WCI G170071 |
| 42 | SHIM, HINGE |
| 43 | WCI G174734 |
| 44 | WCI G163669 |
