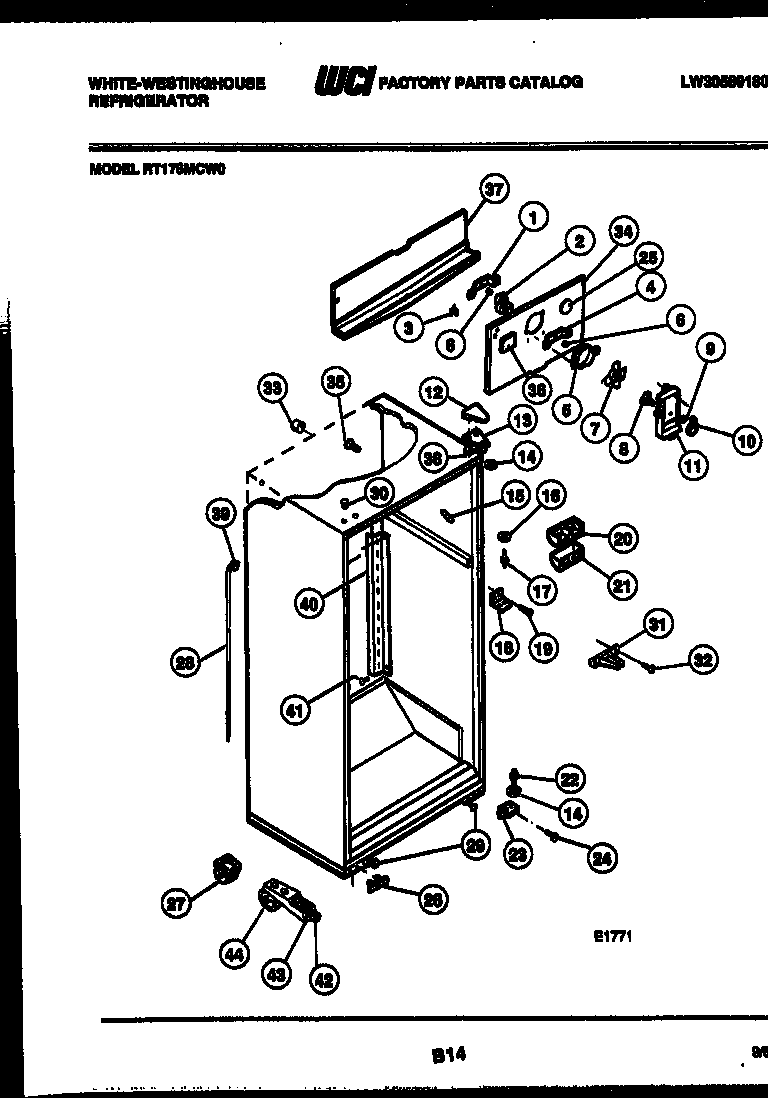

RT176MCD0 03 – CABINET PARTS

Products

Position	Product
*22270	5304509705 Frigidaire Refrigerator Grommet
*22270	BUTTON, LINER
*22270	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*22270	ROLLER FRONT, ADJUSTABLE (2)
*22270	SPRING-ROLLER (2)
*22270	5304500008 Frigidaire Oven Screw
1	WCI G185303
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI G164571
4	WCI G185302
5	RING, FAN ORIFICE
5A	218843801 Frigidaire Refrigerator Screw
6	WCI G1576666
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	WCI 3206110
9	NUT, DAMPER MOUNTING
10	WCI 3206109
11	WCI 3206207
11B	WCI 3206208
12	WCI 3206105
13A	241710601 Frigidaire Refrigerator Screw
13	WCI 3206100
14	WCI G103903
15	WCI 3202340
16	WASHER-CNTR HNGE
17	WCI G142220
18	BRACKET, HINGE CENTER
19	SCREW – MULLION (2)
20	WCI 3204206
21	WCI G162178
22	5303001321 Frigidaire Refrigerator Lower Hinge Pin
23	WCI 3206136
25	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
26	WCI 3206135
27	WCI 3206237
28A	5304455651 Frigidaire Refrigerator Screw
28	TUBE-DEFROST DRAIN
29	PLUG-BUTTON
30	WCI G174747-11
31	WCI 08000056
32	PIN-PUSH
33	TUBE, INSULATION (2)
34B	5304455650 Frigidaire Refrigerator Screw
34A	NUT, ORIFICE (2)
34	WCI 3206119
35	WCI G163669
36	WCI 3018193
37	WCI 3206146
38	WCI G183861
39	RING, SEAL (NON-ILLUSTRATED)
40	WCI 3206202
41	5304455852 Frigidaire Refrigerator Screw
42	BOLT-ROLLER (2)
43	WASHER
44	ROLLER-FRONT (2)
