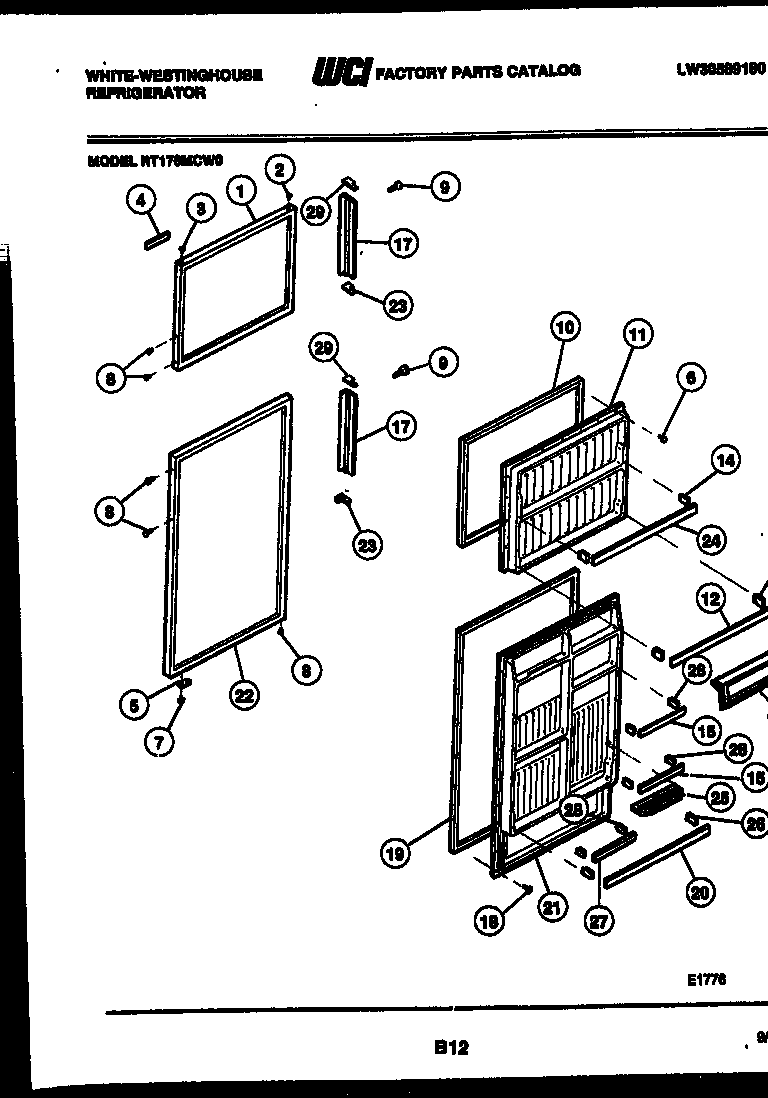

RT176MCF0 02 – DOOR PARTSadmin2025-04-26T10:27:00+00:00RT176MCF0 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *22263 | TRIM, TOP |
| *22263 | INSULATION-BULK |
| 1 | WCI 3916571 |
| 2 | WCI G169332-10 |
| 3 | BEARING-HINGE |
| 4 | WCI 3206159 |
| 5 | DOOR STOP (2) |
| 8 | WCI G162977-10 |
| 9 | WCI G185566 |
| 10 | WCI 08007123 |
| 11 | WCI 3206188 |
| 12 | RACK-DOOR |
| 13 | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH |
| 13 | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH |
| 15 | RACK-DOOR, SHORT, NARROW, (2) |
| 16 | DOOR-DAIRY |
| 16 | DOOR, DAIRY |
| 16 | WCI 3206220 |
| 16 | WCI 3206221 |
| 17 | WCI 3206217 |
| 18 | 5304455651 Frigidaire Refrigerator Screw |
| 19 | 218730603 Frigidaire Door Gasket |
| 20 | RACK-DOOR |
| 21 | PANEL-REFRIGERATOR INNER |
| 22 | WCI 3916576 |
| 23A | CLIP |
| 23B | WCI G000179271 |
| 23 | WCI G000177143 |
| 24 | RACK-DOOR, NARROW |
| 25 | WCI 3206189 |
| 26 | WCI 3206150 |
| 26 | WCI 3206151 |
| 27 | WCI 3206190 |
| 28 | 3206165 Frigidaire Bar Endcap Right Hand |
| 28 | 3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support |
| 29 | CAP |
