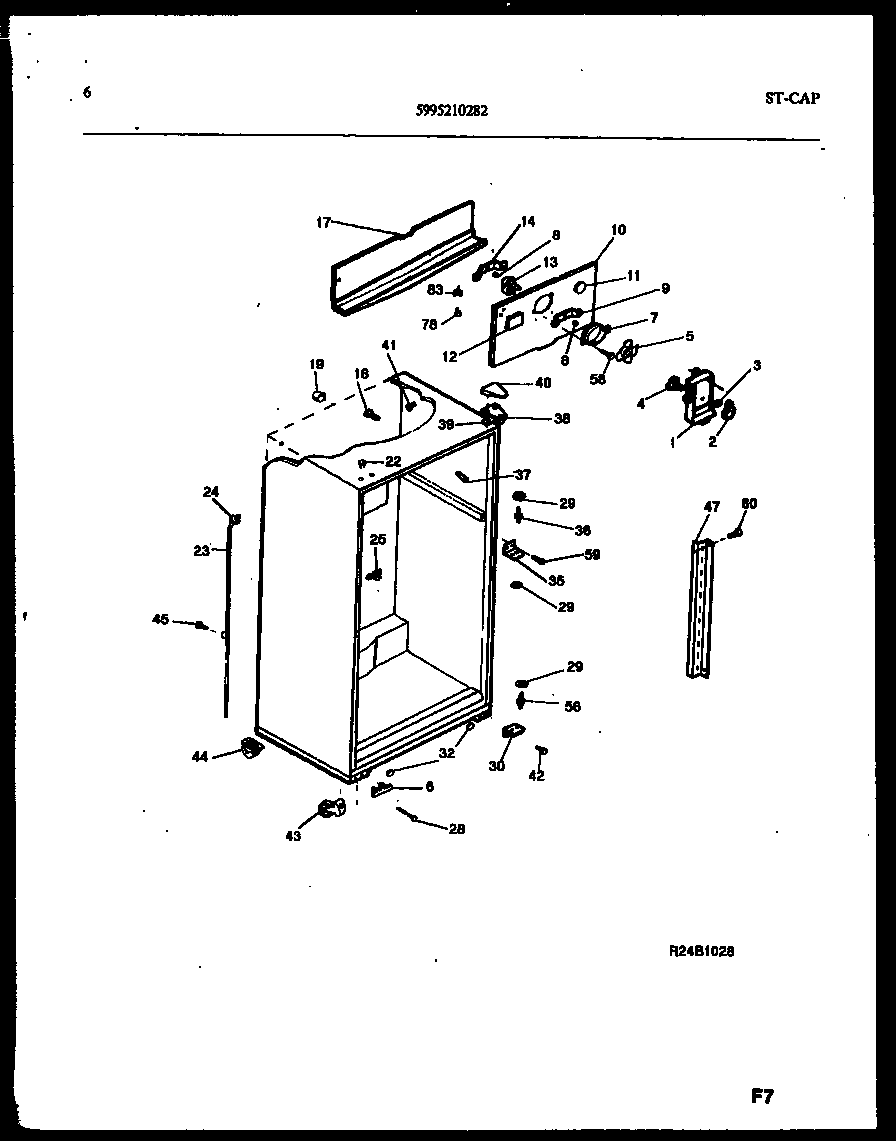

RT176NCD0 04 – CABINET PARTS

Products

Position	Product
1	WCI 3206207
1B	5304455650 Frigidaire Refrigerator Screw
1A	WCI 3206208
2	WCI 3206109
3	Nut,push-on
4	WCI 3206110
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 3206135
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10A	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10	WCI 3206119
11	5303208309 Frigidaire Refrigerator Plug Hole
12	PLUG-DECORATIVE, ICE MAKER HOLE
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	WCI 3206146
18	SUPPORT-COIL COVER
19	TUBE-RUBBER
22	PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23	WCI 5303269702
24	WCI 5303207353
25	WCI 5308000056
25A	WCI 5303001361
28	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
29	WASHER, .34 X .62 X .05, NYLON
30	WCI 3206136
32	PLUG-BUTTON
34	WCI 5308000186
35	BRACKET-CTR HINGE
