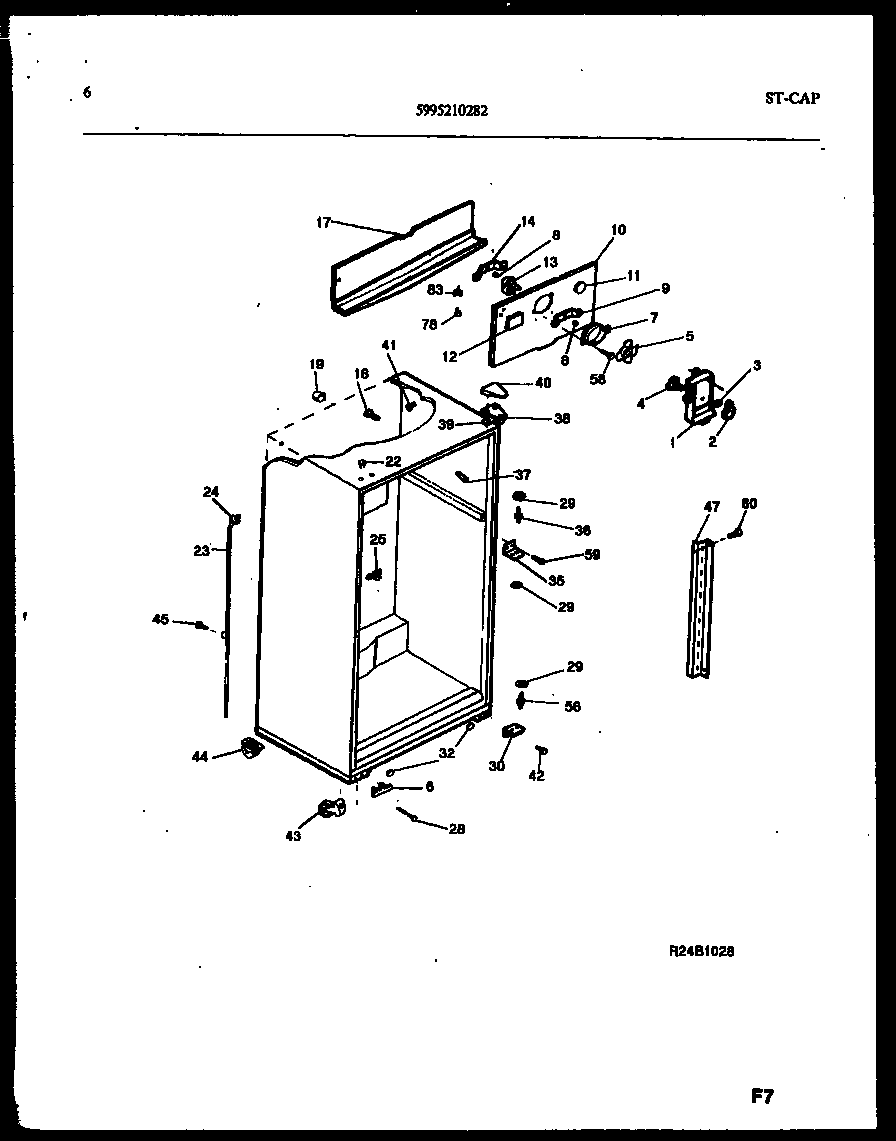

RT176NLD0 04 – CABINET PARTSadmin2025-04-26T10:28:05+00:00RT176NLD0 04 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | WCI 3206207 |
| 1B | 5304455650 Frigidaire Refrigerator Screw |
| 1A | WCI 3206208 |
| 2 | WCI 3206109 |
| 3 | Nut,push-on |
| 4 | WCI 3206110 |
| 5 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 6 | WCI 3206135 |
| 7 | RING-FAN ORIFICE |
| 8 | G187559 Frigidaire Refrigerator Bushing |
| 9 | WCI 5303205118 |
| 10A | NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED) |
| 10 | WCI 3206119 |
| 11 | 5303208309 Frigidaire Refrigerator Plug Hole |
| 12 | PLUG-DECORATIVE, ICE MAKER HOLE |
| 13 | 5300158289 Frigidaire Evaporator Fan Motor |
| 14 | BRACKET-MOTOR MTG, REAR |
| 17 | WCI 3206146 |
| 18 | SUPPORT-COIL COVER |
| 19 | TUBE-RUBBER |
| 22 | PLUG-BUTTON, ALMOND, UPR HINGE HOLES |
| 23 | WCI 5303269702 |
| 24 | WCI 5303207353 |
| 25 | WCI 5308000056 |
| 25A | WCI 5303001361 |
| 28 | BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED) |
| 29 | WASHER, .34 X .62 X .05, NYLON |
| 30 | WCI 3206136 |
| 32 | PLUG-BUTTON |
| 34 | WCI 5308000186 |
| 35 | BRACKET-CTR HINGE |
