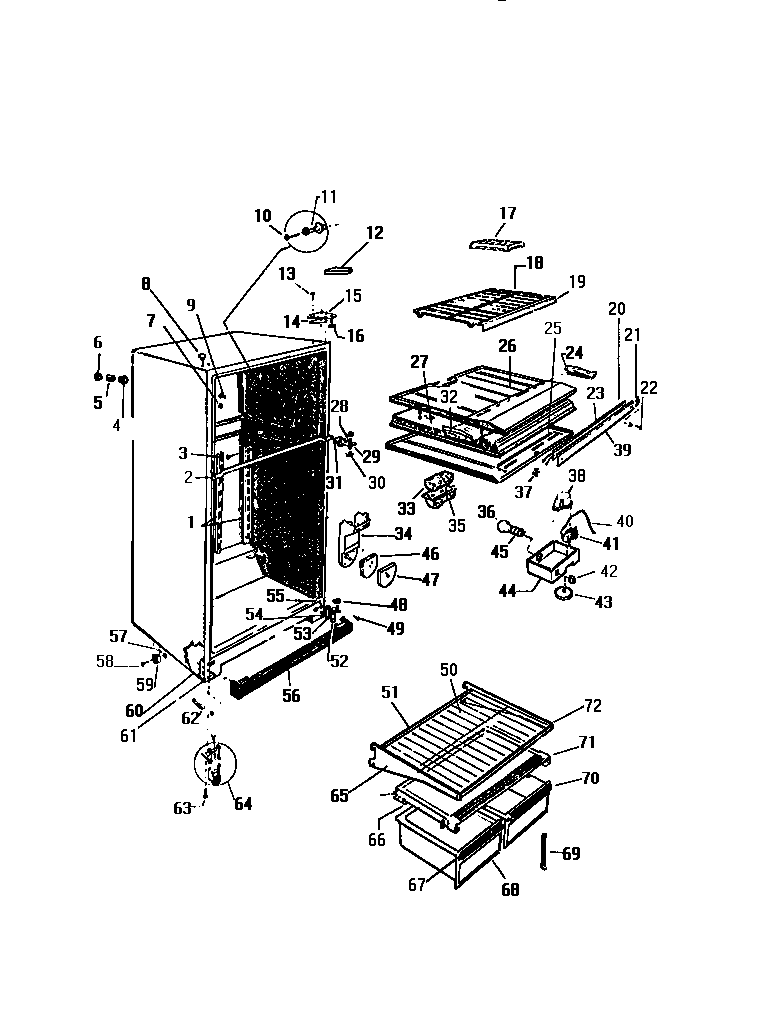

RT177GCD0 03 – CABINET, SHELVES, DIVIDER

Products

Position	Product
1	CHANNEL, SHELF (2)
1A	5304455852 Frigidaire Refrigerator Screw
1B	NUT, SPEED (2)
3	5304455650 Frigidaire Refrigerator Screw
4	WCI G174733
5	TUBE, INSULATION (2)
6	WCI Q174734
7	WCI G162959
8	WCI G174747-11
9	WCI G163669
10	SCREW – SUPPORT TO LINER (8)
11	SUPPORT, SHELF (8)
12	COVER, TOP HINGE, ALMOND
13	241710601 Frigidaire Refrigerator Screw
14	WCI G183161
15	BRACKET, TOP HINGE
16	WASHER, NYLON
17	ICE TRAY
18	WCI G177415-02
21	STRAP, MULLION MOUNTING
23	WCI G177254
24	WCI G162176
25	WCI G174714
26	WCI G161919-01
27	DIVIDER – COMPARTMENT
28	WCI G142220
29	WCI G162384
31	SHIM, HINGE
32	WCI G162177
33	DEFLECTOR AIR
34	WCI G173551-01
35	WCI G162178
36	WCI Q63749
37	5309918806 Frigidaire Refrigerator Light Switch Door
38	215846604 Frigidaire Refrigerator Defrost Timer
39	WCI G162051-11
40	TUBE
41	COLD CONTROL
42	SWITCH
43	KNOB
44	WCI G176722-01
45	WCI G163802
46	WCI G173552
47	WCI G184547
48	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
49	SCREW
50	GLASS-SHELF (NON-ILLUSTRATED)
51	TRIM-REAR (NON-ILLUSTRATED)
52	BRACKET-LOWER HINGE
53	WCI G142361
54	SHIM, HINGE
55	WCI G141673
56	WCI G163080-03
57	NUT, DAMPER MOUNTING
58	WCI G162809
59	WCI G162806
60	TAPPING PLATE (2)
61	WCI Q142361
62A	WCI G172797
62	WCI G162994
63	BOLT, HOUSING TO FRONT RAIL (2)
64	ROLLER ASSEMBLY – FRONT (2)
65	FRAME-SHELF FULL (NON-ILLUSTRATED)
66	WCI G180108-02
67	WCI G177343-06
69	WCI G166310-01
70	PAN CRISPER
71	WCI G162840-01
72	TRIM, SHELF, CUT TO SIZE
