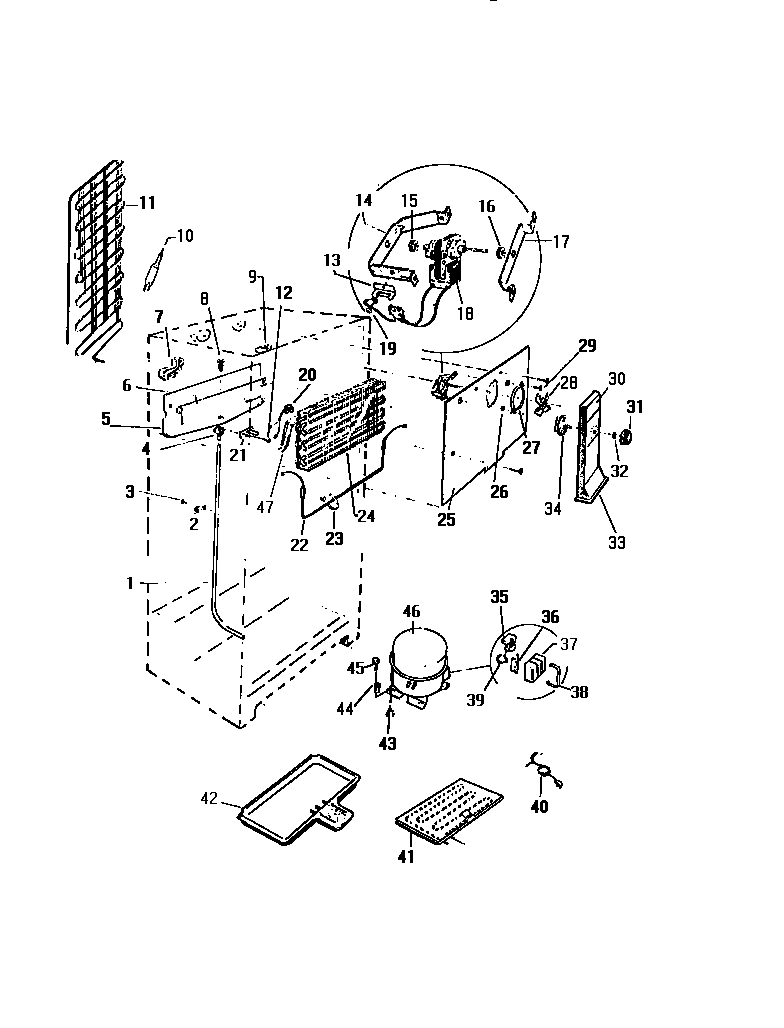

RT177GCF2 04 – EVAPORATOR, FAN ASSY.

Products

Position	Product
*69242	WCI G176210
1	WCI G155529-04
2	WCI G101747
4	ELBOW, DRAIN
5	WCI G170071
6	INSULATOR
7	TROUGH
8	WCI G101620
9	WCI G163099
10	DRIER-REGULAR
10A	WCI R900125
11	WCI G162739
13	WCI G164571
14	BRACKET, REAR MOTOR MOUNTING
16	G187559 Frigidaire Refrigerator Bushing
17	BRACKET, FRONT MOTOR MOUNTING
18	5300158289 Frigidaire Evaporator Fan Motor
20	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
21	SPOUT DRAIN TUBE
22	5317842502 Frigidaire Defrost Heater
23	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
24	EVAPORATOR
25	WCI G162050-01
26	WCI G162701
27	RING, FAN ORIFICE
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
29	WCI Q401601
30	LABEL
31	WCI G162663-13
32	NUT, DAMPER MOUNTING
33	COVER
34	DAMPER FAN COVER
35	WCI G182225-12
36	CLIP, OVERLOAD
37	WCI G185792
38	STRAP-COVER
39	WCI G185797
40	CORD, SERVICE
41	DEFROST PLATE (NON-ILLUSTRATED)
42	PAN, DEFROST
43	218513300 Frigidaire Refrigerator Compressor Mount Grommet
44	SLEEVE COMP MTG (3)
45	WCI G154589
46	COMPRESSOR W/ELECT.
47	EXCHANGER-HEAT
47A	HEAT EXCHANGER REPAIR KIT
