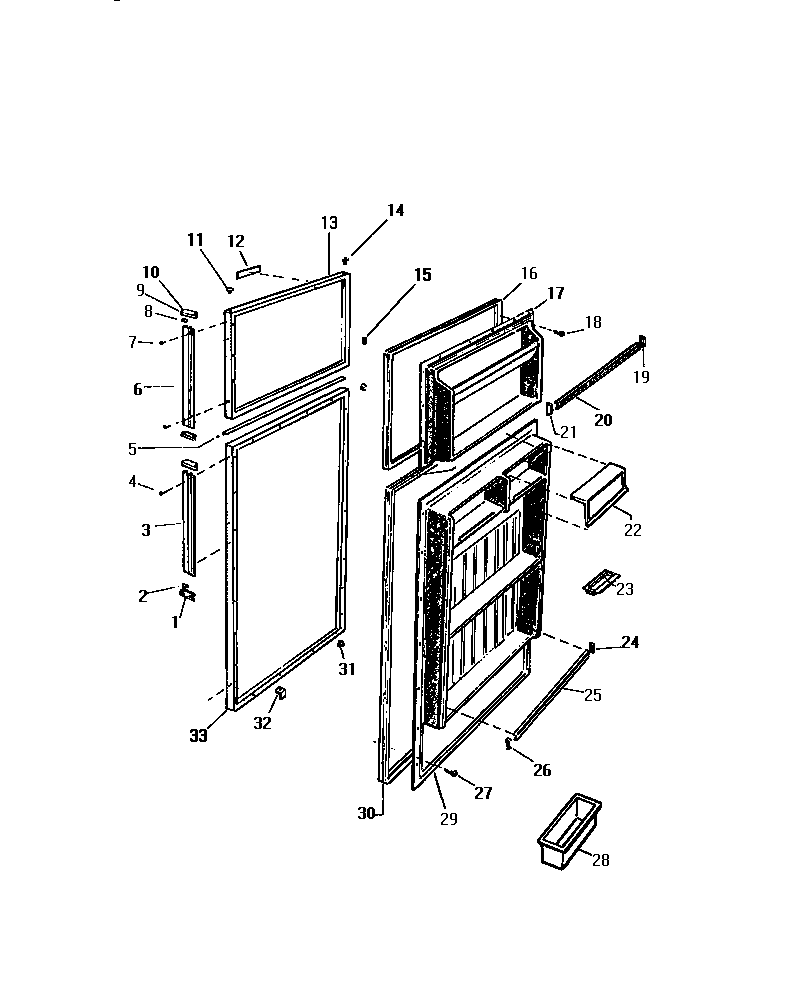

RT177HCW0 02 – DOORS

Products

Position	Product
*69241	FIBERGLASS 34“X48“X11/2 “ TH
*69240	FIBERGLASS INSULATION 34“X48“X1“TH
*69243	PLASTIC BAG
*69245	CLEANING FLUID
*69244	FIBERGLASS INSULATION 34“X48“X1/2“ TH
1	TRIM, BTM
3A	TAPE, VINYL HANDLE ( ELM BURL FINISH )
5	TRIM
5A	TAPE, DBLE SIDE
6	WCI G177141-03
7	SCREW HANDLE MTG (8)
8	CLIP
9	TRIM, TOP
10	CAP
10A	CAP
11	WCI G169332-01
12	WCI R304001
13	WCI G178431-01
15	240494001 Frigidaire Refrigerator Plug Button
16	WCI G180547-06
17	INNER PANEL
20	RACK-DOOR
22	WCI G17996701
23	5308000716 Frigidaire Refrigerator Dish
24	SUPPORT-RACK RH (3)
25	RACK-DOOR (2)
26	SUPPORT-RACK LH (3)
27	218843801 Frigidaire Refrigerator Screw
28	EGG CONTAINER
29	INNER PANEL
30	GASKET – REFRIG. DOOR
31	BEARING, HINGE (3)
32	STOP, DOOR. PC & FC (2)
33	WCI G178429-01
