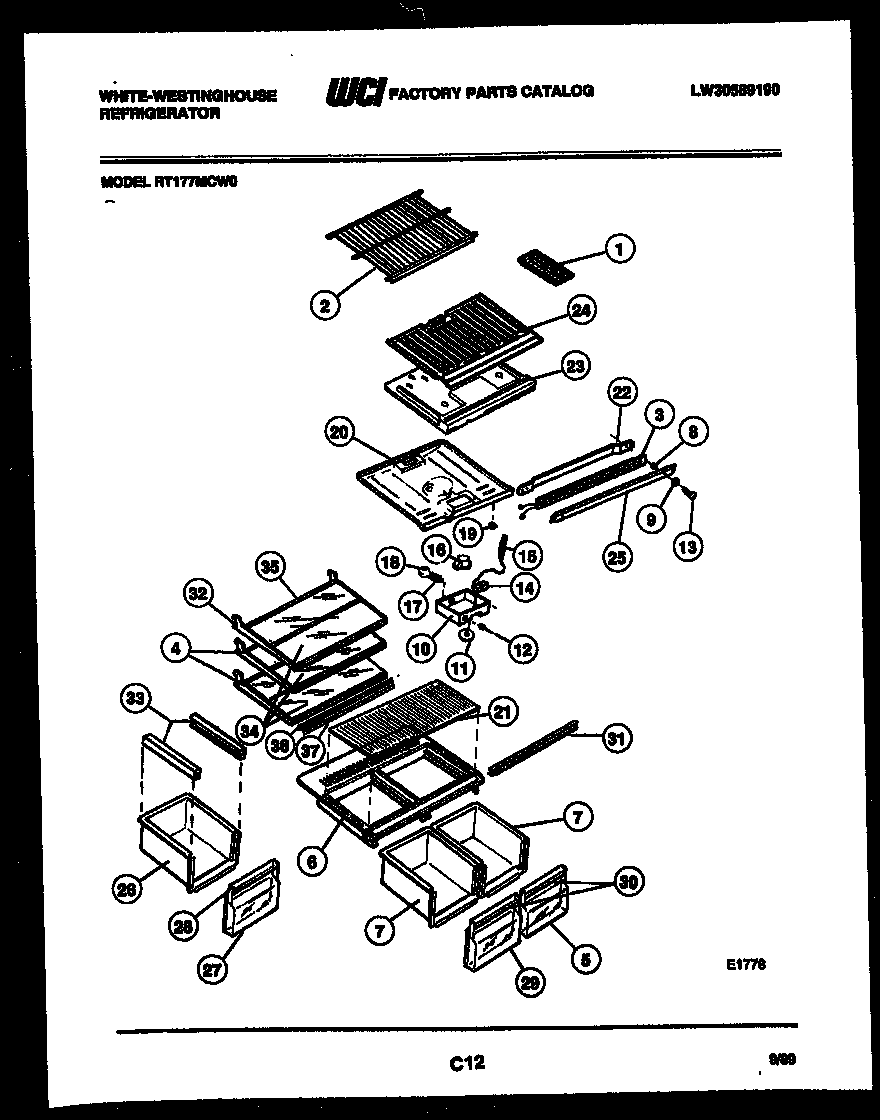

RT177MCH0 04 – SHELVES AND SUPPORTS

RT177MCH0 04 – SHELVES AND SUPPORTS

Written by

in

RT177MCH0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*22346CLIP, SHELF (8)
*223463205266 Frigidaire Refrigerator Edge Protector
1215667501 Frigidaire Refrigerator Ice Tray Primary
2BTRIM-FRZR SHELF
2WCI 3206353
2AEND CAP-SHELF,PROTECTOR
2C5304509705 Frigidaire Refrigerator Grommet
2D5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
3WCI 3206120
4FRAME-CANTILEVER (2)
5WCI 3206354
6WCI 3206183
7PAN – CRISPER
8SPACER (NON-ILLUSTRATED)
9WASHER (2)
10WCI 3206130
10A5304455650 Frigidaire Refrigerator Screw
11KNOB-TEMP CONTROL
12WCI 3206129
13SCREW – MULLION (2)
14CONTROL-TEMPERATURE
14AWCI G107080
15WCI 3018891
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
16A5304455649 Frigidaire Refrigerator Screw
17218906802 Frigidaire Light Lamp Socket
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20WCI 3206185
20ASCREW (5)
21WCI 3206355
22CLAMP, MULLION MOUNTING
23AWCI 3018900
23WCI 3206186
24WCI 3206187
25WCI 3206123
26WCI 3206351
27WCI 3206210
28WCI 3206211
29FRONT-CRISPER PAN-LH
30WCI 3206213
31WCI 3206372
32WCI 3206377
33WCI 3206380
33AWCI 3206379
33BWCI 08014528
34ARAIL-GLASS SUPT (2) (NON-ILLUSTRATED)
34WCI 3206376
35WCI 3206374
36AWCI 3206378
36PANEL-BOTTOM
37WCI 3206206
