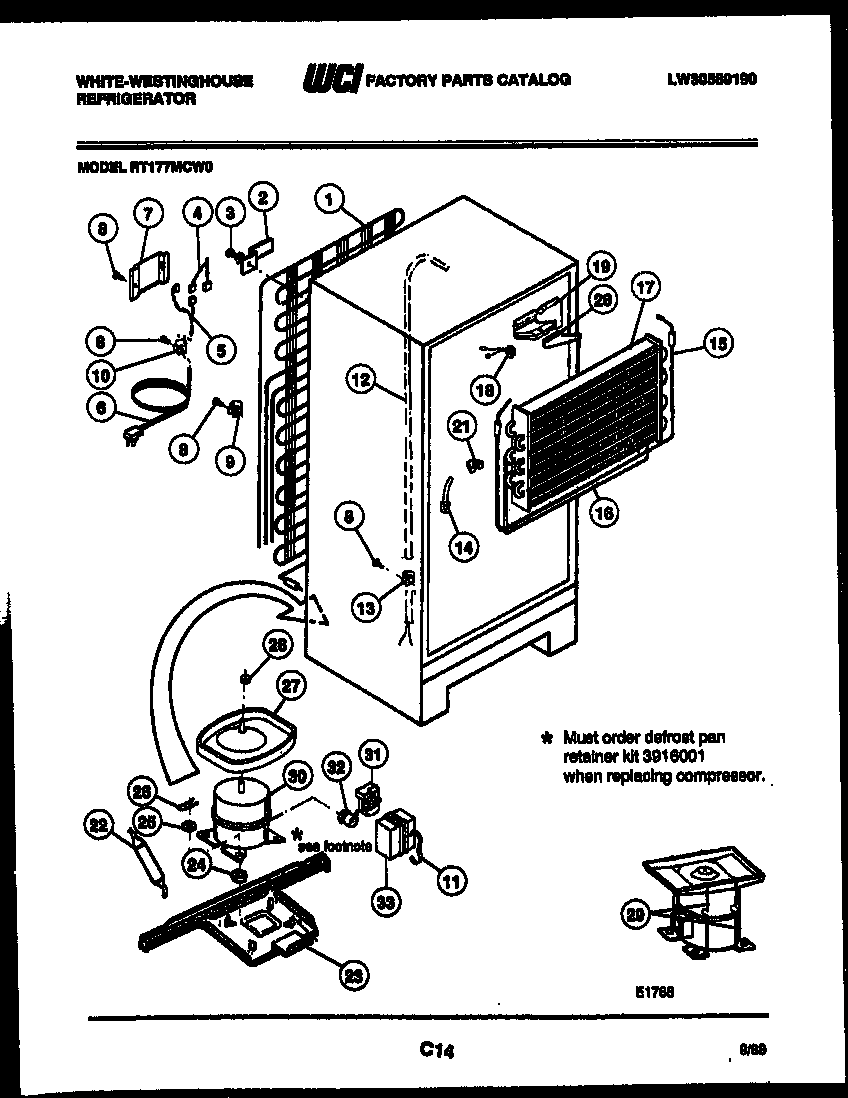

RT177MCH0 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*22349	WCI 3916557
*22349	3205266 Frigidaire Refrigerator Edge Protector
1	WCI G178225
2	BRACKET-CONDENSER MOUNTING (4)
3A	WASHER
3	5308000039 Frigidaire Refrigerator Screw
4	WCI 3018900
5	WIRING HARNESS-COMPRESSOR
6	CORD, SERVICE
7	WCI G183584
8	5304455651 Frigidaire Refrigerator Screw
10	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
11	5303006412 Frigidaire Refrigerator Cover Mounting Strap
12	HEAT-EXCH
13	240396801 Frigidaire Refrigerator Tube Clamp
14	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
15	WCI 08009754
16	INSULATOR
17	EVAPORATOR
18	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
19	BLOCK, EVAPORATOR, RH
20	PLUG, EVAPORATOR INSULATION BLOCK, R H
21	BLOCK, LEFT SIDE
22	5303305677 Frigidaire Replacement Filter Dryer Filters
23A	5304500008 Frigidaire Oven Screw
23	WCI 3206126
24	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WASHER, COMPRESSOR MOUNTING (4)
26	CLIP, COMPRESSOR MOUNTING (4)
27A	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27	DEFROST PAN & NUT
28	NUT, LOCK
29	PAN RETAINER KIT-SERVICE
30	COMPRESSOR-SERVICE
31	216594300 Frigidaire Refrigerator Starter
