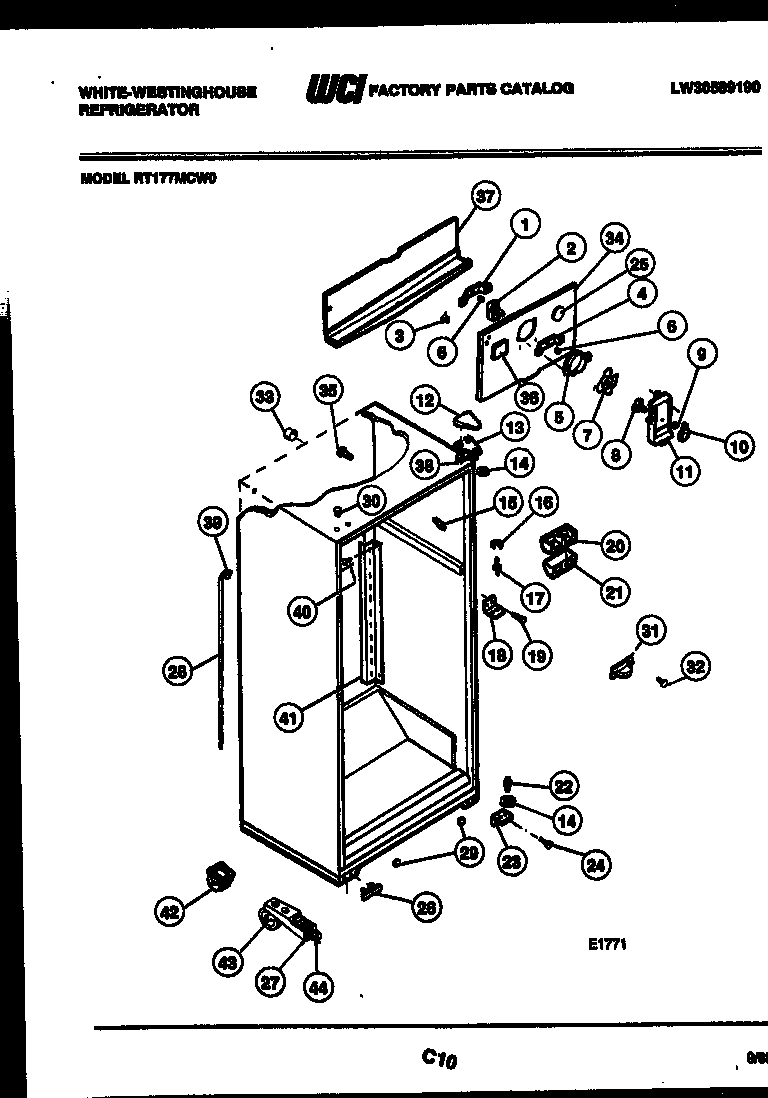

RT177MCW0 03 – CABINET PARTS

Products

Position	Product
*22343	5304509705 Frigidaire Refrigerator Grommet
*22342	BUTTON, LINER
*22343	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
1	WCI G185303
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI G164571
4	WCI G185302
5	RING, FAN ORIFICE
5A	218843801 Frigidaire Refrigerator Screw
6	G187559 Frigidaire Refrigerator Bushing
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	WCI 3206110
9	NUT, DAMPER MOUNTING
10	WCI 3206381
11	WCI 3206207
11B	WCI 3206208
12	WCI 3206101
13A	241710601 Frigidaire Refrigerator Screw
13	WCI 3206100
14	WCI G103903
15	WCI 3202336
16	WASHER-CNTR HNGE
17	WCI G142220
18	BRACKET, HINGE CENTER
19	SCREW - MULLION (2)
20	WCI 3204206
21	WCI G162178
22	5303001321 Frigidaire Refrigerator Lower Hinge Pin
23	WCI 3206136
25	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
26	WCI 3206135
27	WCI 08011326
28	TUBE-DEFROST DRAIN
28A	5304455651 Frigidaire Refrigerator Screw
29	PLUG-BUTTON
30	WCI G174747--01
31	WCI 08000056
32	PIN-PUSH
33	TUBE, INSULATION (2)
34A	NUT, ORIFICE (2)
34	WCI 3206119
34B	5304455650 Frigidaire Refrigerator Screw
35	WCI G163669
36	WCI 3018193
37	WCI 3206146
38	WCI G183861
39	RING, SEAL (NON-ILLUSTRATED)
40	5304455852 Frigidaire Refrigerator Screw
41	WCI 3206202
42	WCI 3206237
43	ROLLER-FRONT (2)
43C	WCI 08009790
43A	5304500008 Frigidaire Oven Screw
43B	WCI 08009760
44	WCI 08009761
