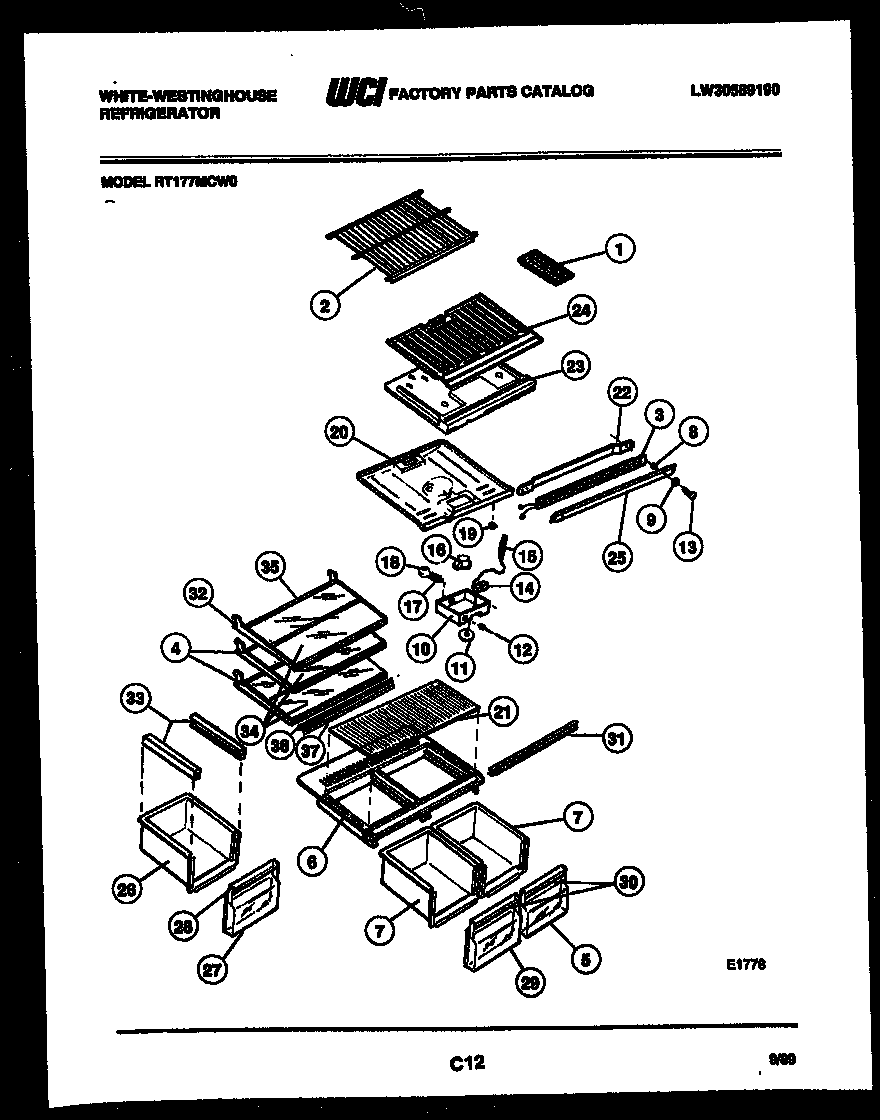

RT177MCW0 04 – SHELVES AND SUPPORTS

Products

Position	Product
*22346	CLIP, SHELF (8)
*22346	3205266 Frigidaire Refrigerator Edge Protector
1	215667501 Frigidaire Refrigerator Ice Tray Primary
2	WCI 3206353
2A	END CAP-SHELF,PROTECTOR
2C	5304509705 Frigidaire Refrigerator Grommet
2B	TRIM-FRZR SHELF
2D	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
3	WCI 3206120
4	FRAME-CANTILEVER (2)
5	WCI 3206354
6	WCI 3206183
7	PAN – CRISPER
8	SPACER (NON-ILLUSTRATED)
9	WASHER (2)
10	WCI 3206130
10A	5304455650 Frigidaire Refrigerator Screw
11	KNOB-TEMP CONTROL
12	WCI 3206129
13	SCREW – MULLION (2)
14	CONTROL-TEMPERATURE
14A	WCI G107080
15	WCI 3018891
16	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
16A	5304455649 Frigidaire Refrigerator Screw
17	218906802 Frigidaire Light Lamp Socket
18	316538904 Frigidaire Oven Lamp Light
19	5309918806 Frigidaire Refrigerator Light Switch Door
20A	SCREW (5)
20	WCI 3206185
21	WCI 3206355
22	CLAMP, MULLION MOUNTING
23A	WCI 3018900
23	WCI 3206186
24	WCI 3206187
25	WCI 3206121
26	WCI 3206351
27	WCI 3206210
28	WCI 3206211
29	FRONT-CRISPER PAN-LH
30	WCI 3206213
31	WCI 3206372
32	WCI 3206377
33	WCI 3206380
33A	WCI 3206379
33B	WCI 08014528
34A	RAIL-GLASS SUPT (2) (NON-ILLUSTRATED)
34	WCI 3206376
35	WCI 3206374
36A	WCI 3206378
36	PANEL-BOTTOM
37	WCI 3206206
