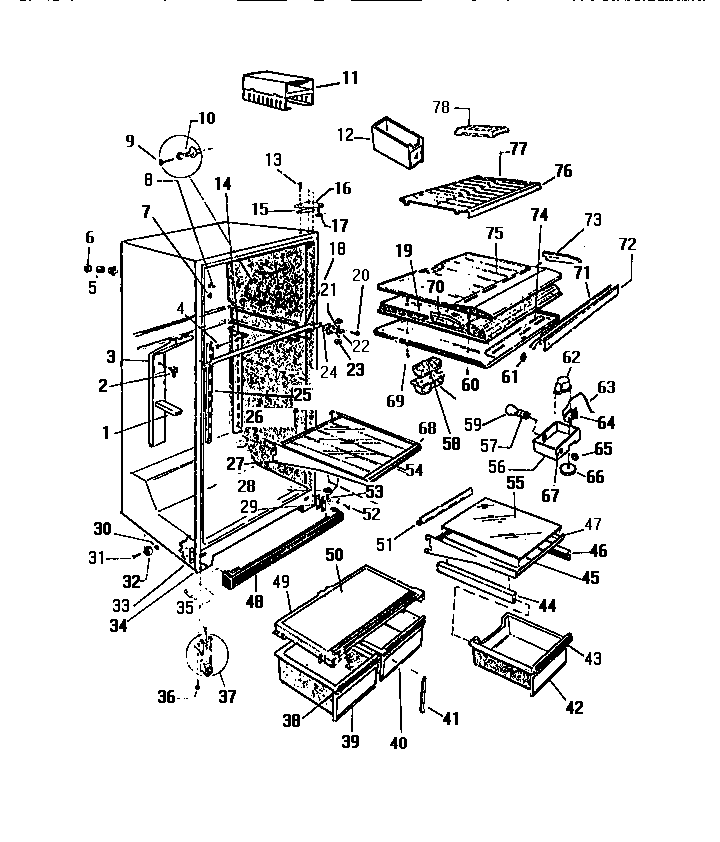

RT178GCD3 03 – CABINET, SHELVES, DIVIDER, FAN ASSE

Products

Position	Product
*86409	WCI G176210
*86410	WCI G162051-11
1	WCI G181292-02
2	WCI G162663-13
3	WCI R900665
4	WCI G163989
5A	WCI G174733
5	TUBE, INSULATION (2)
6	WCI G174734
7	BUTTON, PLUG, ICE MAKER AND FREEZER SHELF MOUNTING HOLES
8	WCI G163669
9	SCREW – SUPPORT TO LINER (8)
10	SUPPORT, SHELF (8)
12	CONTAINER ICE
13	241710601 Frigidaire Refrigerator Screw
14	CHANNEL, SHELF (2)
15	SHIM
16	HINGE, RT SD/ L.SD
17	WASHER, NYLON
18	WCI G16578
19	DIVIDER – COMPARTMENT
20	WCI Q500010
21	WCI G142220
22	WCI G162384
24	SHIM, HINGE
25	CHANNEL, CENTER SHELF, MOUNTING
26	TRIM, REAR
27	FRAME-SHELF
28	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
29	SHIM, HINGE
30	NUT, DAMPER MOUNTING
31	WCI G162809
32	ROLLER (2)
33	TAPPING PLATE (2)
34	WCI G142361
35	WCI G162994
36	BOLT, HOUSING TO FRONT RAIL (2)
37	ROLLER ASSEMBLY – FRONT (2)
39	PAN, CRISPER
40	PAN, FRUIT
41	WCI G166310-01
42	WCI G177013-01
43	WCI G177343-06
44	WCI G174365-01
46	WCI G174366-01
47	FRAME, SHELF
48	WCI G163080-03
49	WCI G180108-02
50	WCI G162840-01
51	TRIM, REAR
52	SCREW
53	BRACKET-LOWER HINGE
55	GLASS-SHELF
56	WCI G176722-01
57	SOCKET LIGHT
58	DEFLECTOR AIR
59	WCI Q63749
60	WCI G162178
61	5309918806 Frigidaire Refrigerator Light Switch Door
62	215846604 Frigidaire Refrigerator Defrost Timer
63	TUBE
64	COLD CONTROL
65	SWITCH
66	KNOB
67	WCI G180197
68	TRIM, SHELF, CUT TO SIZE
69	SCREW (5)
70	WCI G162177
71	WCI G177254
73	WCI G162176
74	WCI G174714
75	WCI G161919-01
76	WCI G177080-03
77	WCI G177415-02
78	ICE TRAY
