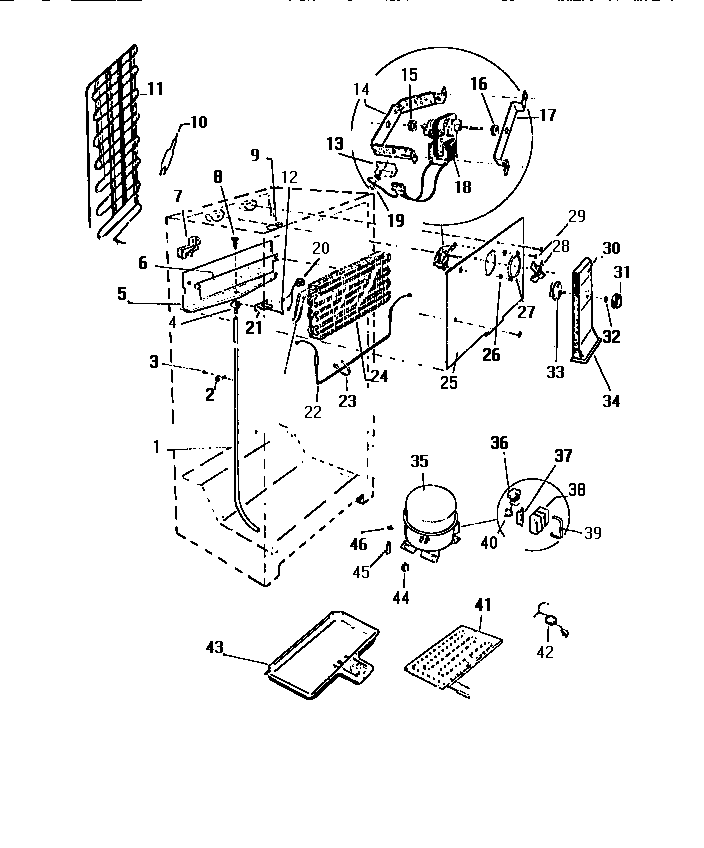

RT178GCF2 04 – COOLING SYSTEM

Products

Position	Product
*86414	WCI G176210
*86403	HARNESS COMPR
1	WCI G155529-04
2	WCI G101747
4	ELBOW, DRAIN
5	WCI G170071
6	INSULATOR
7	TROUGH
8	WCI G101620
9	WCI G163099
10	WCI R900125
10	DRIER-REGULAR
11	WCI G162739
13	WCI G164571
14	BRACKET, REAR MOTOR MOUNTING
16	G187559 Frigidaire Refrigerator Bushing
17	BRACKET, FRONT MOTOR MOUNTING
18	5300158289 Frigidaire Evaporator Fan Motor
20	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
21	SPOUT DRAIN TUBE
22	5317842502 Frigidaire Defrost Heater
22B	EXCHANGER-HEAT
22A	HEAT EXCHANGER REPAIR KIT
23	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
24	EVAPORATOR
25	WCI G162050-01
26	WCI G162701
27	RING, FAN ORIFICE
28	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
29	WCI Q401601
30	LABEL-FAN CVR
31	WCI G162663-13
32	NUT, DAMPER MOUNTING
33	DAMPER FAN COVER
34	WCI G179792-01
35	COMPRESSOR W/ELECT.
36	WCI G150618-26
37	CLIP, OVERLOAD
39	5303006412 Frigidaire Refrigerator Cover Mounting Strap
40	OVERLOAD
41	DEFROST PLATE
42	CORD, SERVICE
43	PAN, DEFROST
44	218513300 Frigidaire Refrigerator Compressor Mount Grommet
45	SLEEVE COMP MTG (3)
46	WASHER, COMPRESSOR MOUNTING (4)
