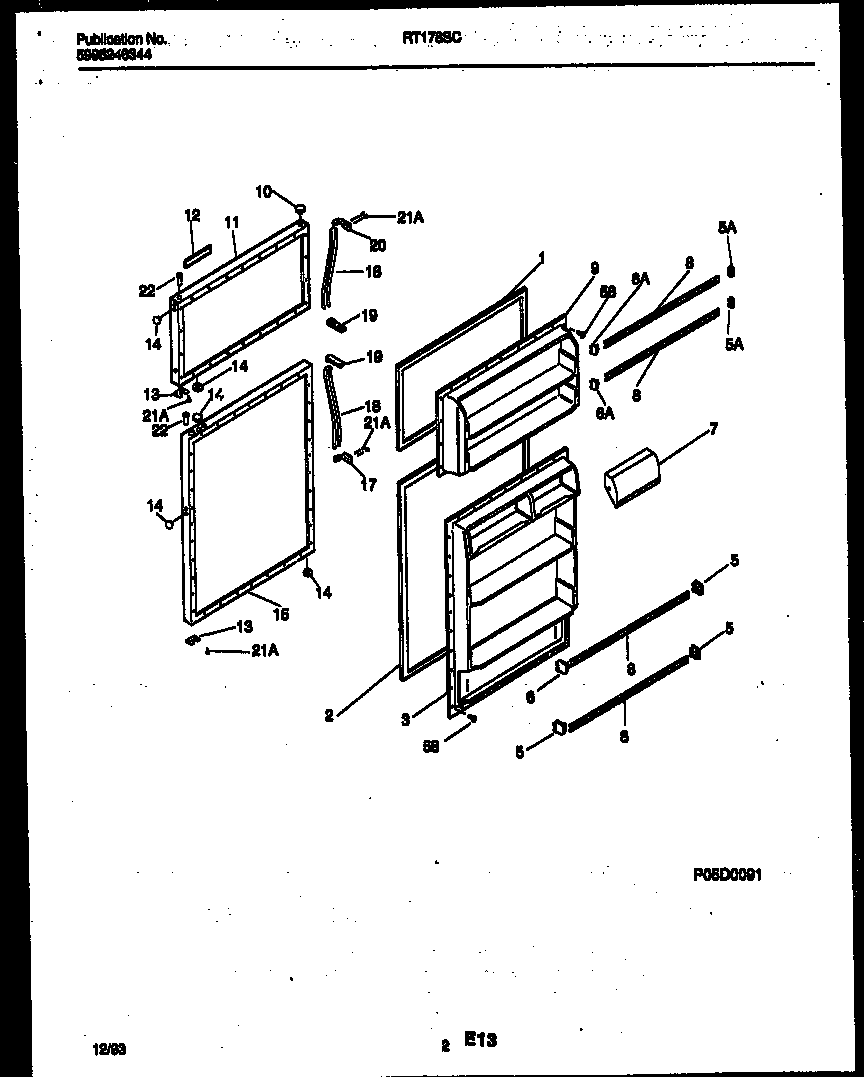

RT178SCD1 02 – DOOR PARTSadmin2025-04-26T10:31:11+00:00RT178SCD1 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *85709 | INSULATION |
| 1 | GASKET-FRZR DOOR, ALMOND, MAGNETIC |
| 2 | 218730603 Frigidaire Door Gasket |
| 3 | WCI 5303271592 |
| 5A | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH |
| 5 | WCI 3206150 |
| 6 | WCI 3206151 |
| 6A | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH |
| 7B | WCI 5303288923 |
| 7 | WCI 5303288922 |
| 7A | WCI 5303001380 |
| 8 | 215366002 Frigidaire Refrigerator Door Wide Rack |
| 9 | WCI 5303207236 |
| 10 | PLUG-BUTTON, ALMOND, HINGE BRG HOLE |
| 11 | WCI 5303917157 |
| 12 | WCI 215366401 |
| 12A | TAPE, ADHESIVE, 60`` LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC |
| 13 | WCI 5308000255 |
| 14 | PLUG-BUTTON, ALMOND, HANDLE/DR STOP |
| 15 | WCI 5303917155 |
| 17 | HANDLE END |
| 18 | WCI 5303015111 |
| 18A | INSERT-HANDLE GRIP, ALMOND (NOT ILLUSTRATED) |
| 19 | WCI 215365000 |
| 20 | HANDLE END |
| 21A | WCI 5308011745 |
| 22 | BEARING-HINGE |
| 58 | 5304455651 Frigidaire Refrigerator Screw |
