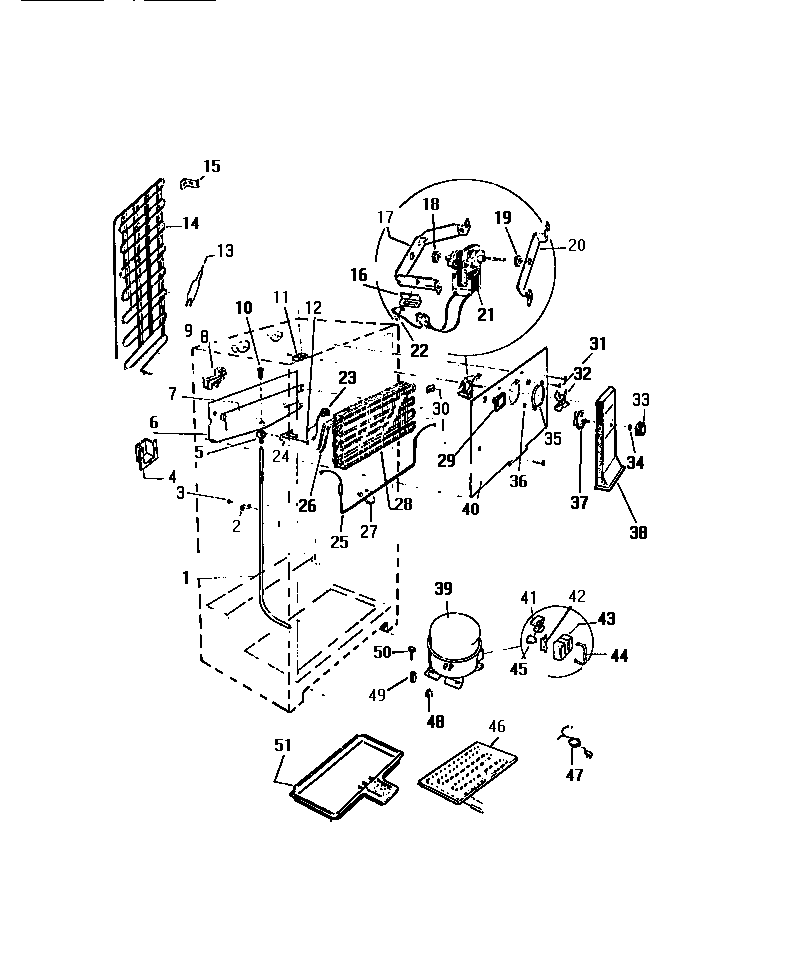

RT179HCD2 04 – EVAPORATOR, FAN ASSY.

Products

Position	Product
*92203	HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
*92209	HARNESS COMPR
*92210	HEAT EXCHANGER REPAIR KIT
*92202	LABEL-FAN CVR
1	DRAIN TUBE (CUT TO LENGTH)
2	WCI G101747
4	WCI G183584
5	ELBOW, DRAIN
6	WCI G170071
7	INSULATOR
8A	BLOCK, EVAPORATOR, LH
8	PLUG - EVAP. INS. L.H.
10	WCI G101620
12	WCI G185297
13	WCI R900125
13A	DRIER, REGULAR
14	CONDENSER
15	BRACKET-CONDENSER MOUNTING (4)
16	WCI G164571
17	WCI G185303
18	BUTTON, LINER
19	G187559 Frigidaire Refrigerator Bushing
20	WCI G185302
21	5300158289 Frigidaire Evaporator Fan Motor
23	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24	SPOUT DRAIN TUBE
25	5317842502 Frigidaire Defrost Heater
26	WCI R162524
27	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
28	EVAPORATOR
29	PLUG, DECORATIVE
30	WCI G163099
31	WCI Q401601
32	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
33	WCI G162663-13
34	NUT, DAMPER MOUNTING
35	RING, FAN ORIFICE
36	NUT, ORIFICE (2)
37	DAMPER FAN COVER
38	COVER
39	COMPRESSOR W/ELECT.
40	WCI G162050-01
41	WCI G182225-12
42	RETAINER, OVERLOAD
43	WCI G185792
44	STRAP-COVER
45	WCI G185797
46	DEFROST PLATE (NON-ILLUSTRATED)
47	CORD, SERVICE
48	218513300 Frigidaire Refrigerator Compressor Mount Grommet
49	SLEEVE COMP MTG (3)
50	SCREW - 1/4-20 (3) COMP. MTG.
51	PAN, DEFROST
