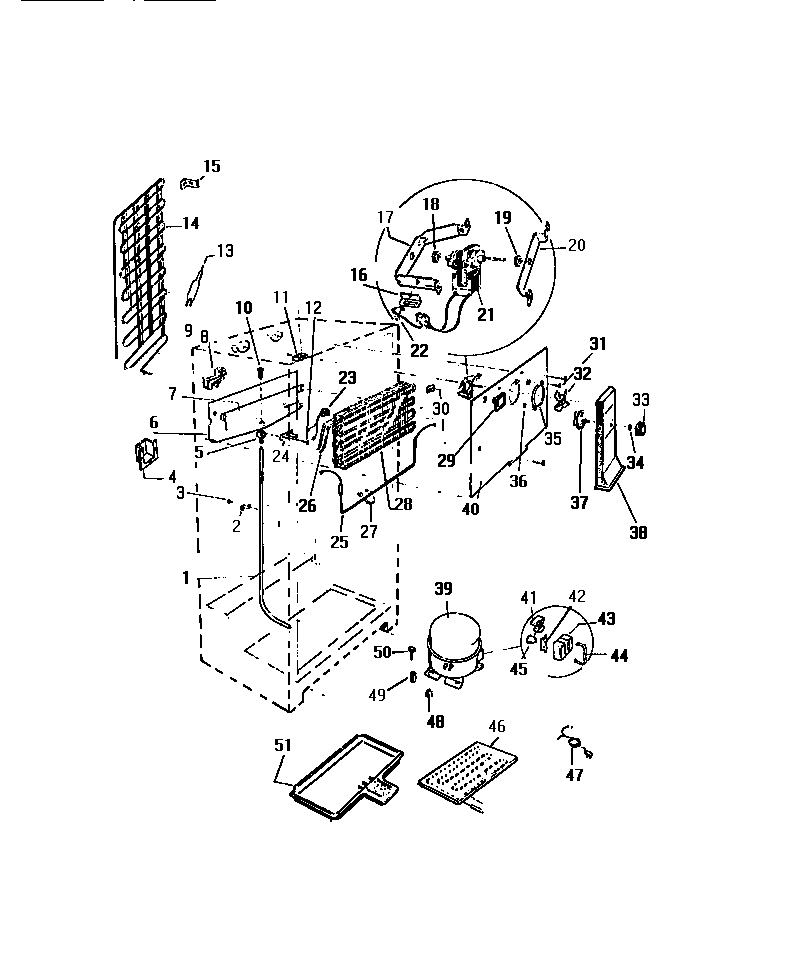

RT179HCD3 04 – EVAPORATOR, FAN ASSY.admin2025-04-26T10:28:59+00:00RT179HCD3 04 – EVAPORATOR, FAN ASSY.
Products
| Position | Product |
|---|
| *92203 | HOT TUBE REPAIR KIT (NON-ILLUSTRATED) |
| *92209 | HARNESS COMPR |
| *92210 | HEAT EXCHANGER REPAIR KIT |
| *92202 | LABEL-FAN CVR |
| 1 | DRAIN TUBE (CUT TO LENGTH) |
| 2 | WCI G101747 |
| 4 | WCI G183584 |
| 5 | ELBOW, DRAIN |
| 6 | WCI G170071 |
| 7 | INSULATOR |
| 8 | PLUG - EVAP. INS. L.H. |
| 8A | BLOCK, EVAPORATOR, LH |
| 10 | WCI G101620 |
| 12 | WCI G185297 |
| 13A | DRIER, REGULAR |
| 13 | WCI R900125 |
| 14 | WCI G184719 |
| 15 | BRACKET-CONDENSER MOUNTING (4) |
| 16 | WCI G164571 |
| 17 | WCI G185303 |
| 18 | BUTTON, LINER |
| 19 | G187559 Frigidaire Refrigerator Bushing |
| 20 | WCI G185302 |
| 21 | 5300158289 Frigidaire Evaporator Fan Motor |
| 23 | 5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit |
| 24 | SPOUT DRAIN TUBE |
| 25 | 5317842502 Frigidaire Defrost Heater |
| 26 | WCI R162524 |
| 27 | 5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap |
| 28 | EVAPORATOR |
| 29 | PLUG, DECORATIVE |
| 30 | WCI G163099 |
| 31 | WCI Q401601 |
| 32 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 33 | WCI G162663-13 |
| 34 | NUT, DAMPER MOUNTING |
| 35 | RING, FAN ORIFICE |
| 36 | NUT, ORIFICE (2) |
| 37 | DAMPER FAN COVER |
| 38 | COVER |
| 39 | WCI C620106 |
| 40 | WCI G162050-01 |
| 41 | WCI G182225-11 |
| 42 | RETAINER, OVERLOAD |
| 44 | 5303006412 Frigidaire Refrigerator Cover Mounting Strap |
| 45 | WCI G185810 |
| 46 | DEFROST PLATE (NON-ILLUSTRATED) |
| 47 | CORD, SERVICE |
| 48 | 218513300 Frigidaire Refrigerator Compressor Mount Grommet |
| 49 | SLEEVE COMP MTG (3) |
| 50 | SCREW - 1/4-20 (3) COMP. MTG. |
| 51 | PAN, DEFROST |
