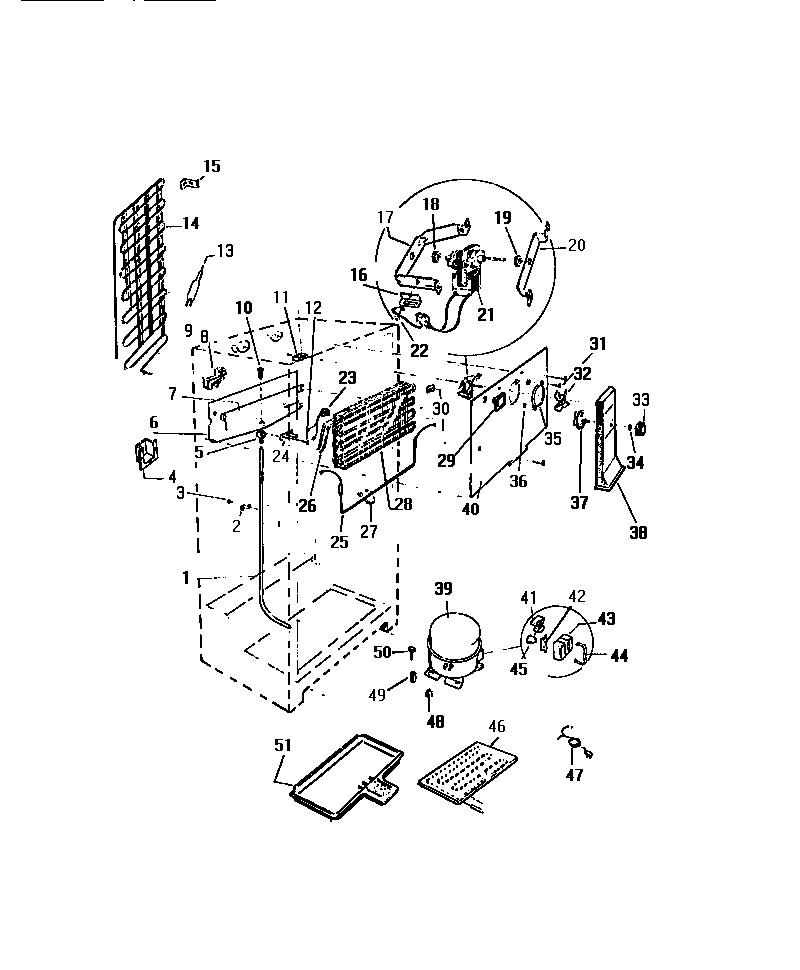

RT179HCF3 04 – EVAPORATOR, FAN ASSY.

Products

Position	Product
*92203	HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
*92209	HARNESS COMPR
*92210	HEAT EXCHANGER REPAIR KIT
*92202	LABEL-FAN CVR
1	DRAIN TUBE (CUT TO LENGTH)
2	WCI G101747
4	WCI G183584
5	ELBOW, DRAIN
6	WCI G170071
7	INSULATOR
8	PLUG – EVAP. INS. L.H.
8A	BLOCK, EVAPORATOR, LH
10	WCI G101620
12	WCI G185297
13A	DRIER, REGULAR
13	WCI R900125
14	WCI G184719
15	BRACKET-CONDENSER MOUNTING (4)
16	WCI G164571
17	WCI G185303
18	BUTTON, LINER
19	G187559 Frigidaire Refrigerator Bushing
20	WCI G185302
21	5300158289 Frigidaire Evaporator Fan Motor
23	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24	SPOUT DRAIN TUBE
25	5317842502 Frigidaire Defrost Heater
26	WCI R162524
27	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
28	EVAPORATOR
29	PLUG, DECORATIVE
30	WCI G163099
31	WCI Q401601
32	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
33	WCI G162663-13
34	NUT, DAMPER MOUNTING
35	RING, FAN ORIFICE
36	NUT, ORIFICE (2)
37	DAMPER FAN COVER
38	COVER
39	WCI C620106
40	WCI G162050-01
41	WCI G182225-11
42	RETAINER, OVERLOAD
44	5303006412 Frigidaire Refrigerator Cover Mounting Strap
45	WCI G185810
46	DEFROST PLATE (NON-ILLUSTRATED)
47	CORD, SERVICE
48	218513300 Frigidaire Refrigerator Compressor Mount Grommet
49	SLEEVE COMP MTG (3)
50	SCREW – 1/4-20 (3) COMP. MTG.
51	PAN, DEFROST
