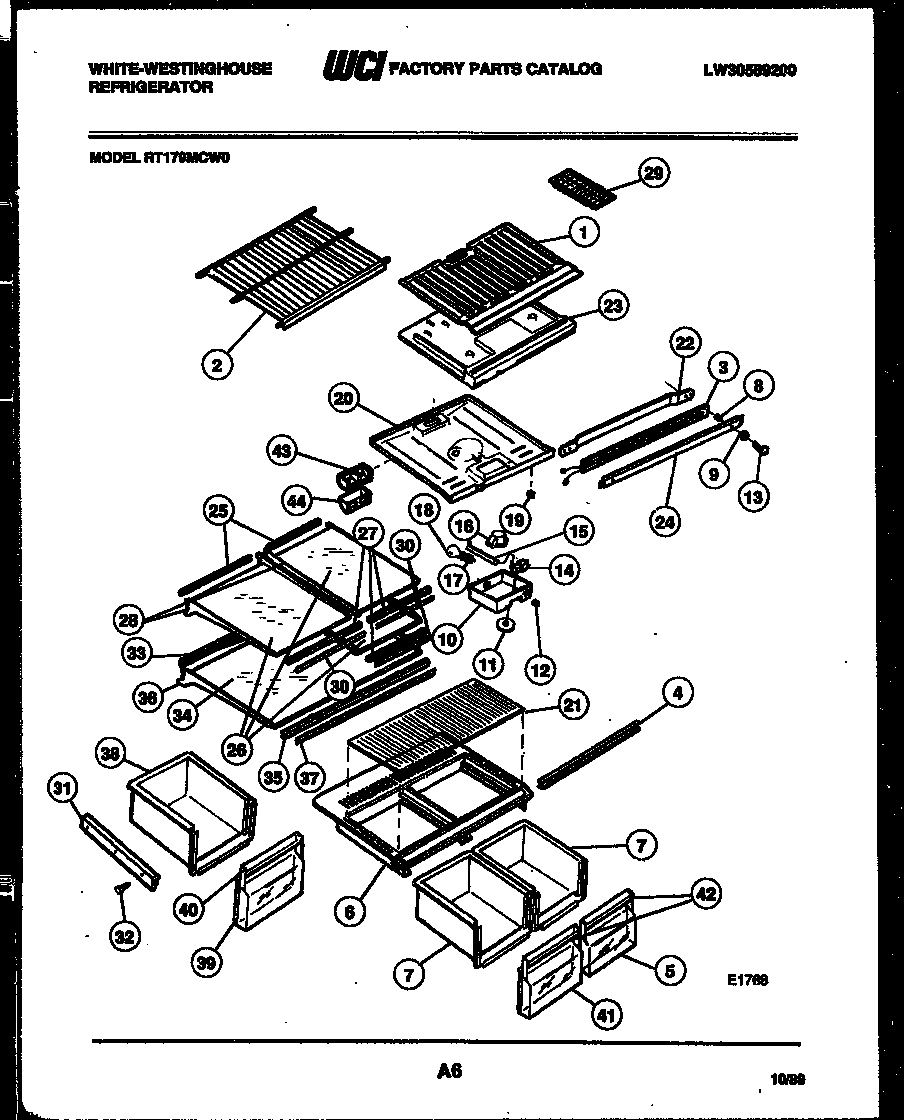

RT179MCF0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*23249CLIP, SHELF (8)
1WCI 3206187
2BTRIM-FRZR SHELF
2D5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
2AEND CAP-SHELF,PROTECTOR
2C5304509705 Frigidaire Refrigerator Grommet
2WCI 3206353
3WCI 3206120
4WCI 3206372
5WCI 3206354
6WCI 3206183
7PAN – CRISPER
8SPACER (NON-ILLUSTRATED)
9WASHER (2)
10WCI 3206130
10A5304455650 Frigidaire Refrigerator Screw
11KNOB-TEMP CONTROL
12WCI 3206129
13SCREW – MULLION (2)
14AWCI G107080
14CONTROL-TEMPERATURE
15WCI 3018891
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
16A5304455649 Frigidaire Refrigerator Screw
17218906802 Frigidaire Light Lamp Socket
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20ASCREW (5)
20WCI 3206185
21WCI 3206355
22CLAMP, MULLION MOUNTING
23WCI 3206186
23B3205266 Frigidaire Refrigerator Edge Protector
23AWCI 3018900
24WCI 3206124
25WCI 3206413
26SHELF-GLASS, HALF SHELF, (3)
27RETAINER-GLASS, (3) (NON-ILLUSTRATED)
28FRAME-HALF SHELF, CANTILEVER, (2)
28AFRAME-MEAT KPR SHELF, CANTILEVER
29215667501 Frigidaire Refrigerator Ice Tray Primary
30TRIM-HALF SHELF, (3)
31AWCI 3206380
31WCI 3206379
32WCI 08014528
33WCI 3206374
34ARAIL-GLASS SUPT (2) (NON-ILLUSTRATED)
34WCI 3206376
35PANEL-BOTTOM
36FRAME-CANTILEVER (2)
37WCI 3206206
38WCI 3206351
39WCI 3206210
40WCI 3206211
41FRONT-CRISPER PAN-LH
42WCI 3206213
43WCI 3204206
44WCI G162178
