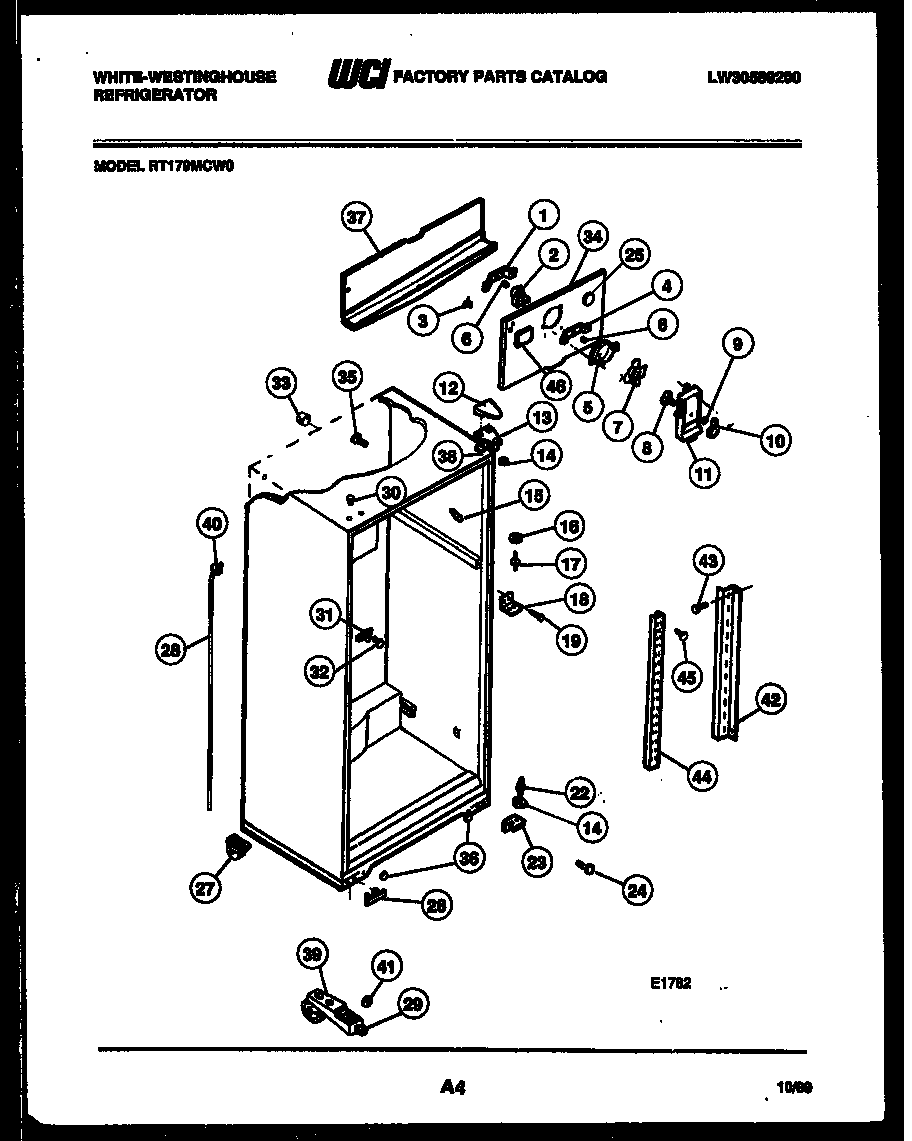

RT179MCV0 03 – CABINET PARTS

Products

Position	Product
*23243	BUTTON, LINER
1	WCI G185303
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI G164571
4	WCI G185302
5	RING, FAN ORIFICE
5A	218843801 Frigidaire Refrigerator Screw
6	G187559 Frigidaire Refrigerator Bushing
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	WCI 3206110
9	NUT, DAMPER MOUNTING
10	WCI 3206381
11B	WCI 3206208
11	WCI 3206207
12	COVER - TOP HINGE - AVOCADO
13	WCI 3206100
13A	241710601 Frigidaire Refrigerator Screw
14	WCI G103903
15	CORNER TRIM-AVOCADO
16	WASHER-CNTR HNGE
17	WCI G142220
18	BRACKET, HINGE CENTER
19	SCREW - MULLION (2)
22	5303001321 Frigidaire Refrigerator Lower Hinge Pin
23	WCI 3206136
25	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
26	WCI 3206135
27	WCI 3206237
28A	5304455651 Frigidaire Refrigerator Screw
28	TUBE-DEFROST DRAIN
29	BOLT-ROLLER (2)
30	WCI G174747-08
31	WCI 08000056
32	PIN-PUSH
33	TUBE, INSULATION (2)
34B	NUT, ORIFICE (2)
34	WCI 3206119
34A	5304455650 Frigidaire Refrigerator Screw
35	WCI G163669
36	PLUG-BUTTON
37	WCI 3206146
38	WCI G183861
39B	SPRING-ROLLER (2)
39	ROLLER-FRONT (2)
39A	ROLLER FRONT, ADJUSTABLE (2)
39C	5304500008 Frigidaire Oven Screw
40	RING, SEAL (NON-ILLUSTRATED)
41	WASHER
42	WCI 3206202
43	5304455852 Frigidaire Refrigerator Screw
44	CHANNEL-CENTER (NON-ILLUSTRATED)
45	WCI 08016568
46	WCI 3018193
